Home >> Lexus >> 1996 >> SC 400 V8-4.0L (1UZ-FE) >> Repair and Diagnosis >> Transmission and Drivetrain >> Differential Assembly >> Specifications >> Mechanical Specifications >> Differential Technical Data

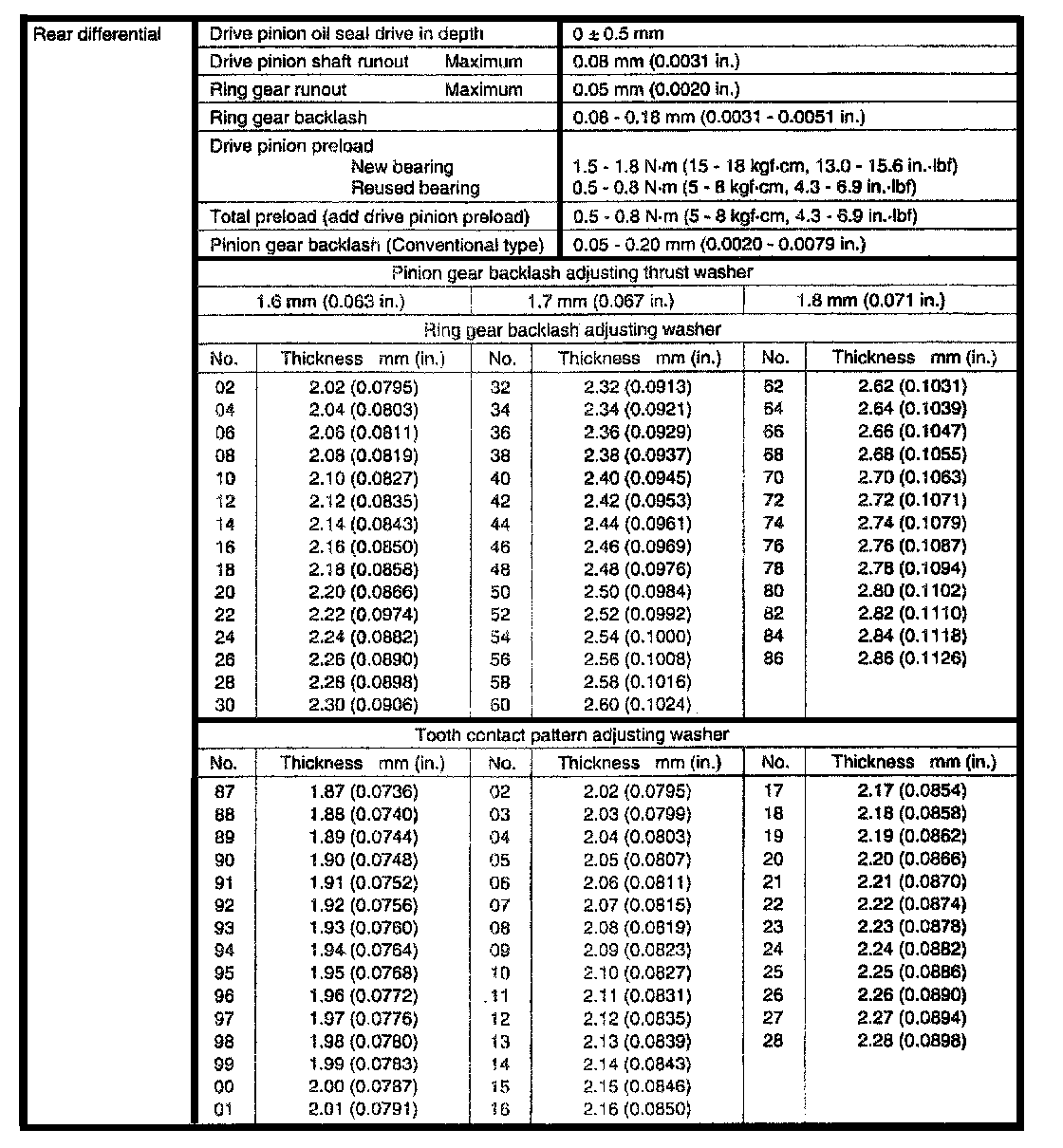

Differential Technical Data

Rear Wheel Drive, Differential Pinion / Gear Backlash:
