Transmission/Transaxle Replacement

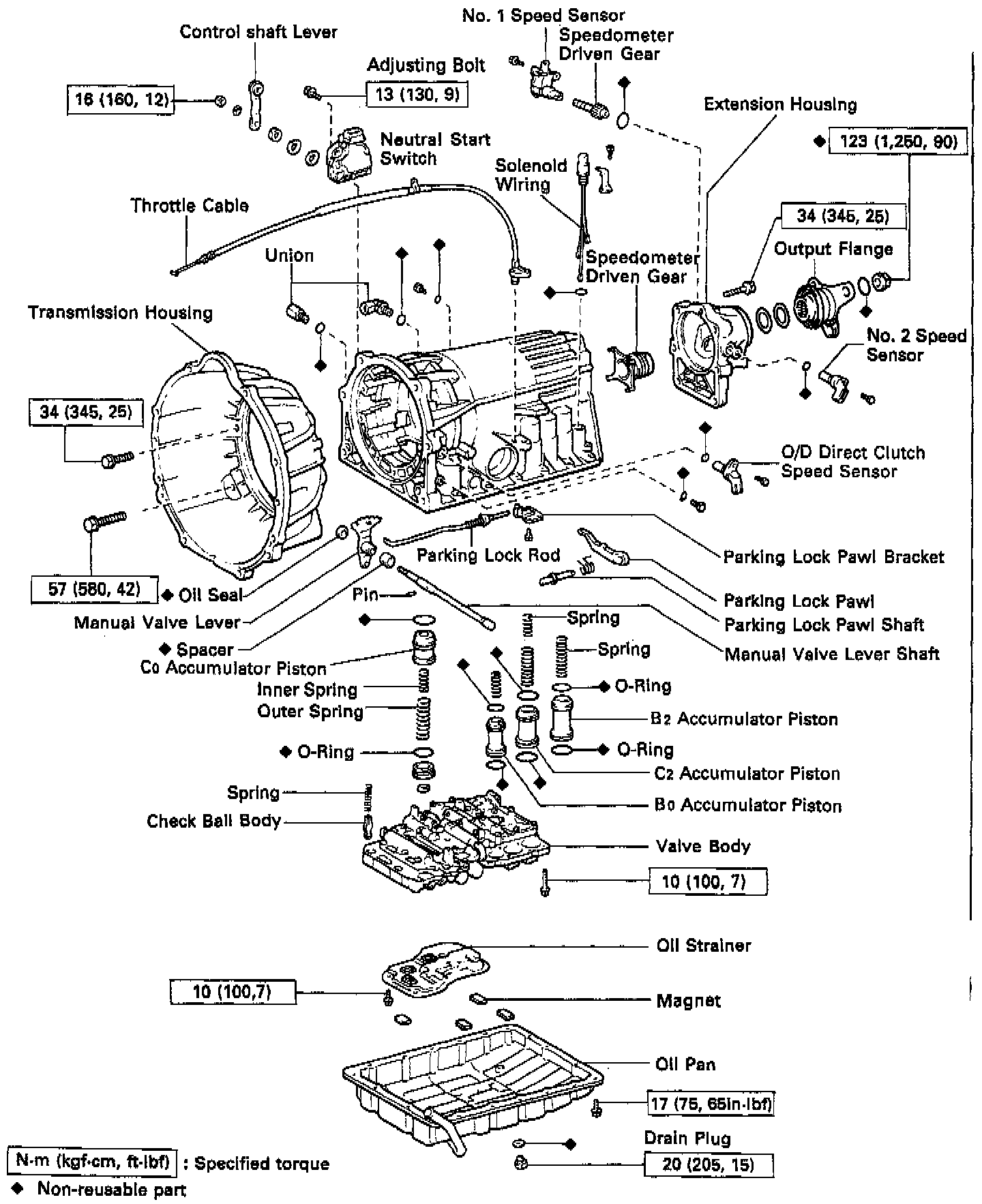

Fig. 17. Removal Of Component Parts:

1. Disable airbag system as described under Technician Safety Information.
2. On models equipped with Air Suspension, turn off Mode Selector Switch located in the trunk before lifting vehicle.
3. Raise and support vehicle.
4. Using a suitable engine stand, position at rear of engine, then drain transmission fluid.
5. Remove and install transmission as shown in Fig. 17. Plug all lines.
6. Reverse procedure to install. Refer to Specifications for torque values.
