Owner Instruction For Personalized Seat Belt Extender

CAUTION FOR USE OF SEAT BELT EXTENDERS:

1. Never use the seat belt extender if you can fasten the seat belt without it.

2. Remember the seat belt extender provided for you may not be safe when used in a different vehicle, or for another person or at a seating position different than specified.

3. When the seat belt extender is provided for a rear seat position (with automatic locking retractor), make sure the retractor is locked when in use.

4. FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN A LESS EFFECTIVE SEAT BELT RESTRAINT SYSTEM IN CASE OF A VEHICLE ACCIDENT, CAUSING PERSONAL INJURY.

USING THE SEAT BELT EXTENDER:

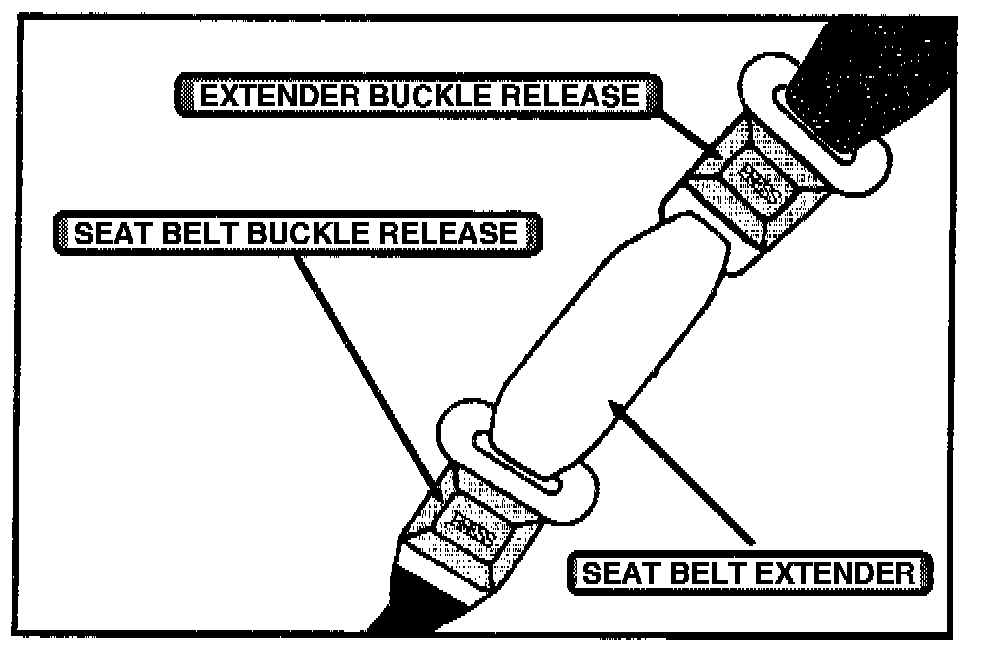

1. Connect the seat belt extender to the seat belt by inserting the tab into the seat belt buckle so the buckle release buttons of the seat belt extender and the seat belt are located on the same side as shown in the illustration. You will hear a click when the tab properly locks into the buckle.

2. MAKE SURE THAT THE CONNECTION IS SECURE AND THE SEAT BELT EXTENDER IS NOT TWISTED.

3. When releasing the seat belt, press on the buckle release button on the seat belt extender, not on the seat belt. This helps prevent damage to the vehicle interior and seat belt extender.

4. When not in use, remove the extender and store in the vehicle.
