SRS Warning Light Circuit Malfunction (Not On, Ign Sw ACC/ON)

SRS Warning Light System Malfunction (Does not light up when ignition switch is turned to ACC or ON.)

CIRCUIT DESCRIPTION

The SRS warning light is located on the combination meter. When the SRS is normal, the SRS warning light lights up for approx. 6 seconds after the ignition switch is turned from LOCK position to ACC or ON position, and then turns off automatically. If there is a malfunction in the SRS, the SRS warning light lights up to inform the driver of the abnormally.

When terminals Tc and E1 of the DLC1 are connected, the DTC is displayed by the blinking of the SRS warning light.

WIRING DIAGRAM

Wiring Diagram:

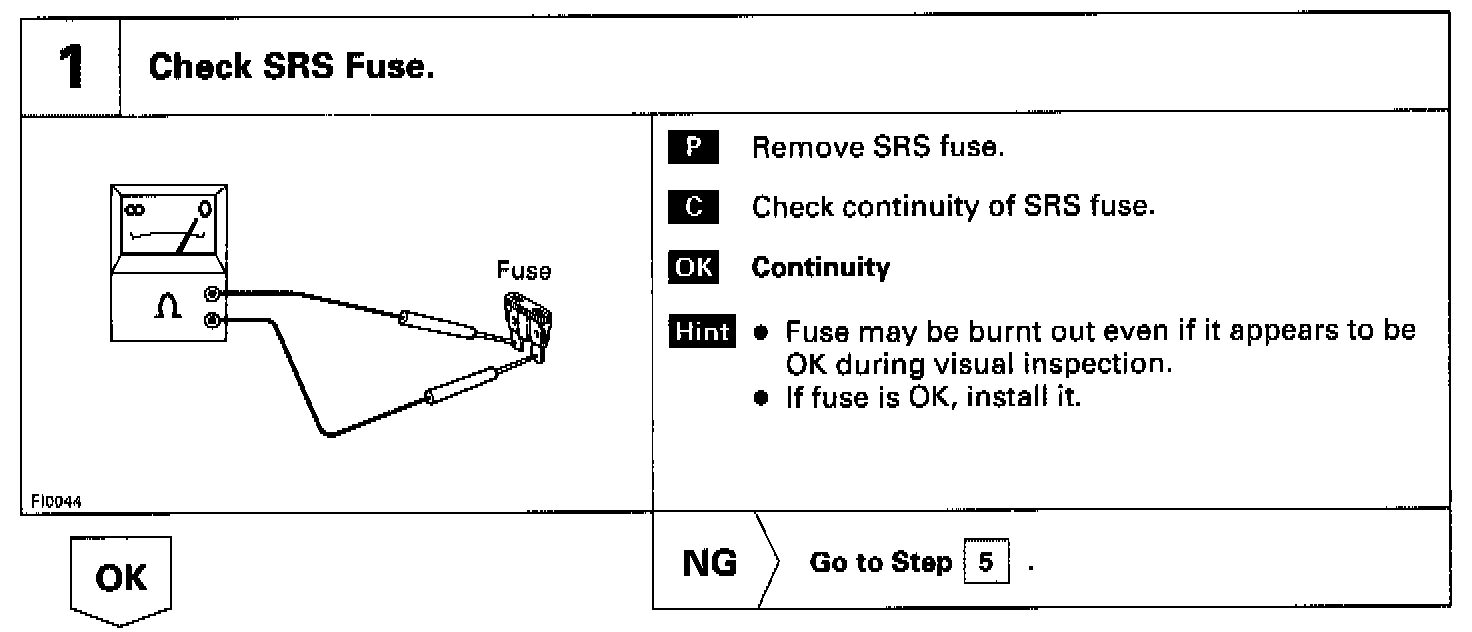

Step 1:

Step 2:

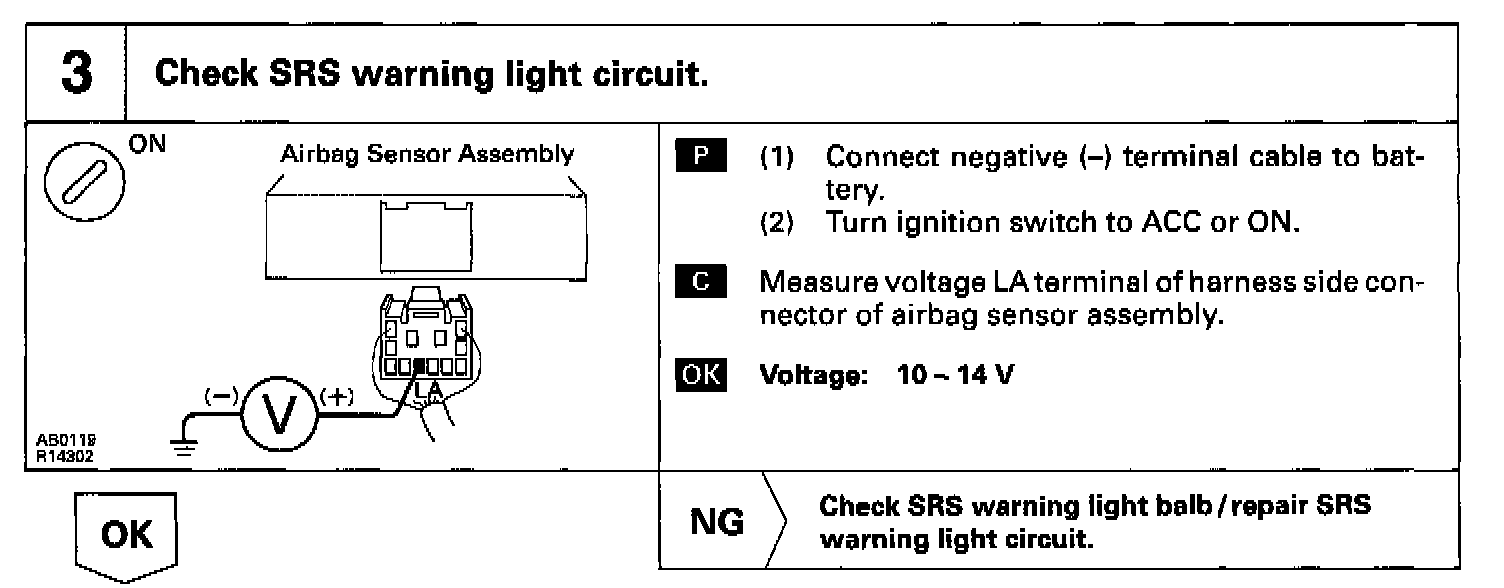

Step 3:

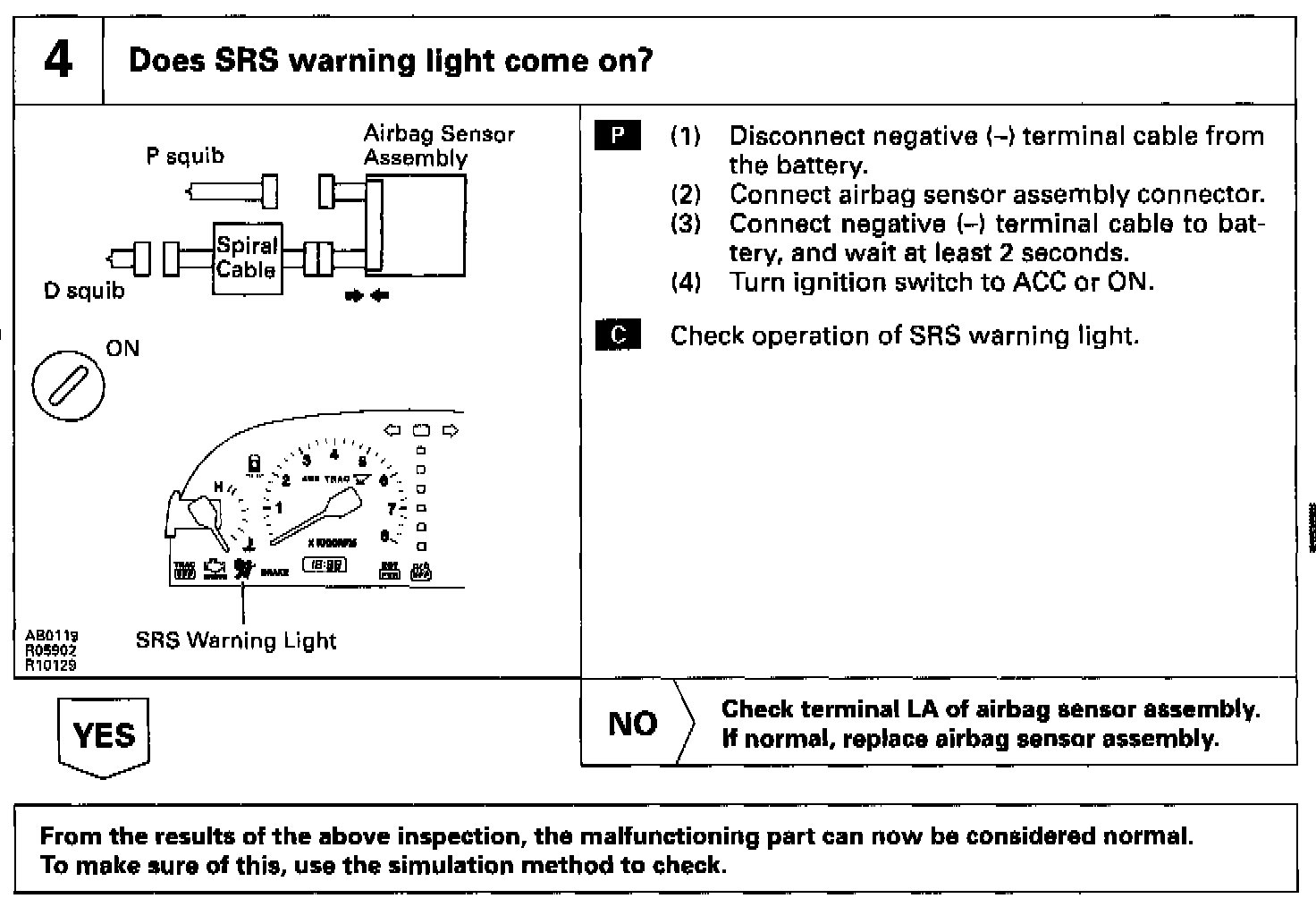

Step 4:

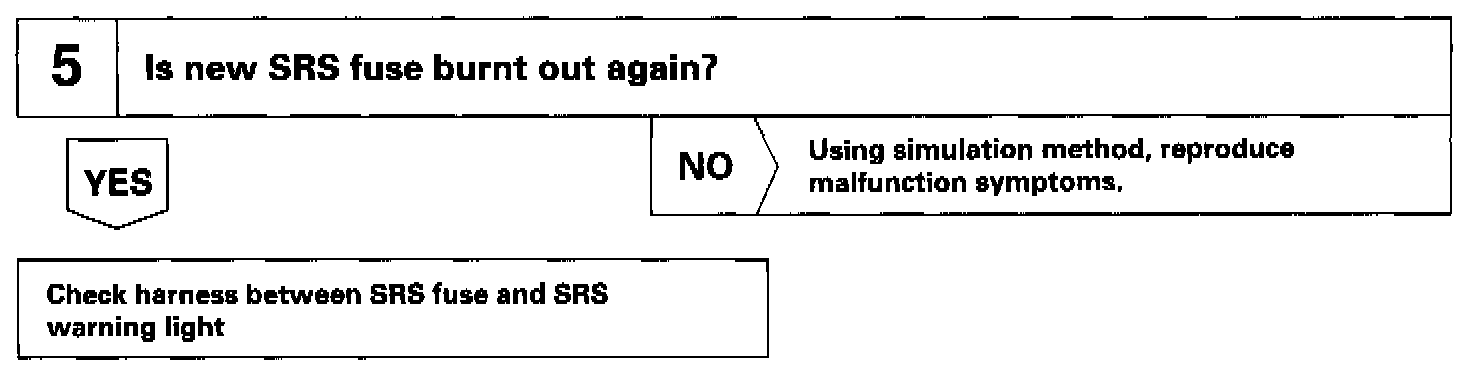

Step 5:

INSPECTION PROCEDURES
