Release Method of Activation Prevention Mechanism

SRS Activation Prevention Mechanism:

The supplemental restraint system has connectors which possess the functions described above:

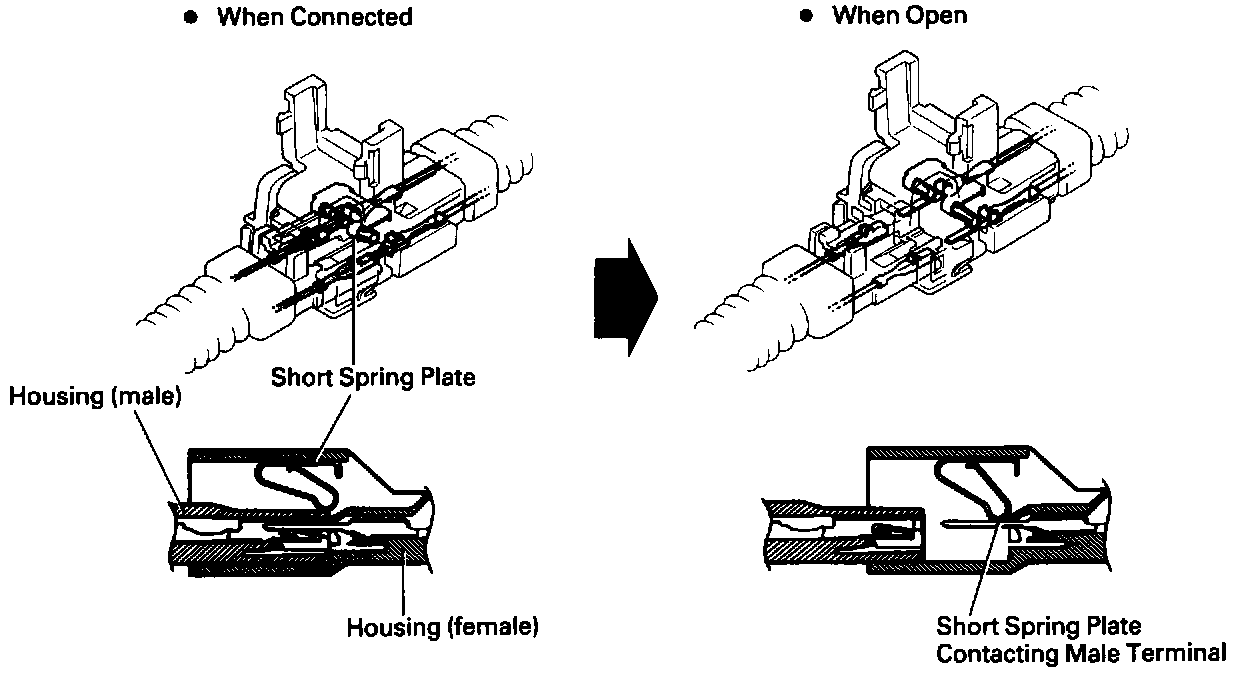

Each connector contains a short spring plate. When the connector is disconnected, the short spring plate automatically connects the power source and grounding terminals of the squib to preclude a potential difference between the terminals.
