No.2 Vehicle Speed Sensor Replacement

1. DISCONNECT NO.2 VEHICLE SPEED SENSOR CONNECTOR.

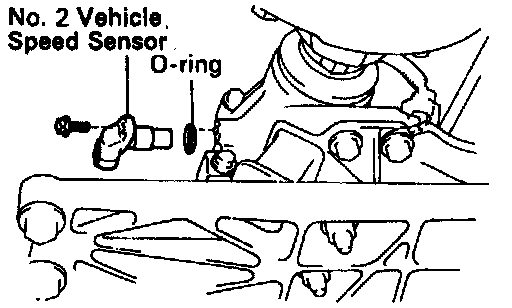

2. REMOVE NO.2 VEHICLE SPEED SENSOR.
- Remove the bolt and No.2 vehicle speed sensor.
- Remove the O-ring from it.
3. INSTALL NO.2 VEHICLE SPEED SENSOR.
- Coat a new O-ring with ATF and install it to the speed sensor.
- Install the speed sensor and torque the bolt.

Torque: 5.4 N.m (56 kgf.cm, 48 in.lb.)

4. CONNECT NO.2 VEHICLE SPEED SENSOR CONNECTOR.
