No.2 Ignition Coil Removal and Installation

NO.2 IGNITION COIL REMOVAL
1. REMOVE V-BANK COVER.
2. DISCONNECT HIGH-TENSION CORD.





3. REMOVE IGNITION COIL.

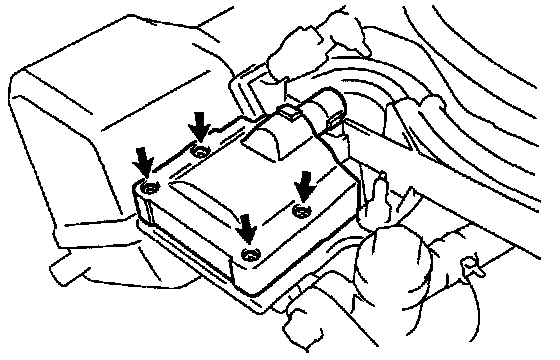

- Remove the 4 screws and ignition coil, and disconnect the ignition coil from the bracket.
- Disconnect the ignition coil connector, and remove the ignition coil.

NO.2 IGNITION COIL INSTALLATION

INSTALLATION HINT: Installation is in the reverse order of removal.
