Removal and Installation

CAUTION: Do not smoke or work near an open flame when working on the fuel pump.

1. REMOVE LUGGAGE COMPARTMENT FLOOR MAT.
2. REMOVE SPARE TIRE.
3. REMOVE LUGGAGE COMPARTMENT TRIM COVER.

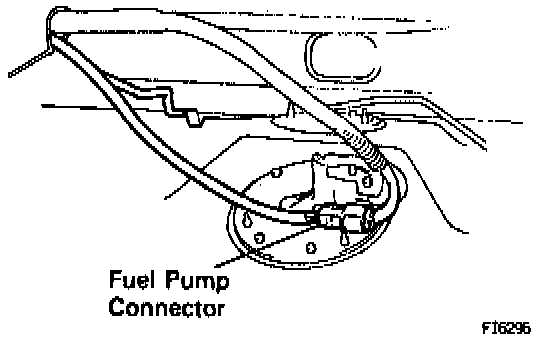

4. DISCONNECT FUEL PUMP CONNECTOR.
5. REMOVE SEAT CUSHION AND BACK.
6. REMOVE PARTITION COVER.
- Using a scraper, pry out the partition cover.

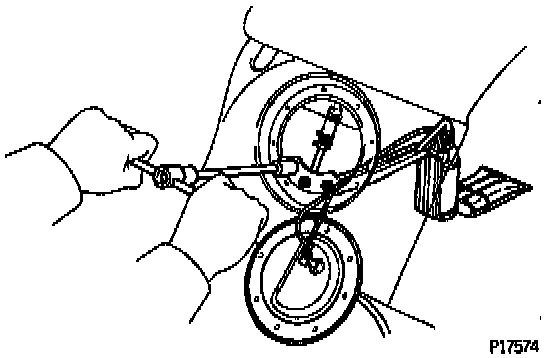

7. REMOVE FUEL PUMP.
- Remove the 8 bolts, and disconnect the fuel pump set plate from the fuel tank.

Torque: 3.9 N.m (40 kgf.cm, 35 ft.lb.)






- Remove the 3 nuts, and disconnect the fuel pump bracket from the fuel tank.
- Disconnect the fuel hose from the fuel pump bracket, and remove the fuel pump, bracket and set plate assembly.

Torque: 5.4 N.m (55 kgf.cm, 48 ft.lb.)


FUEL PUMP INSTALLATION

INSTALLATION HINT: Installation is in the reverse order of removal.

INSTALLATION HINT: Use a new gasket.


INSTALLATION HINT: Start engine, and check for fuel leaks.
