Disassembly and Reassembly

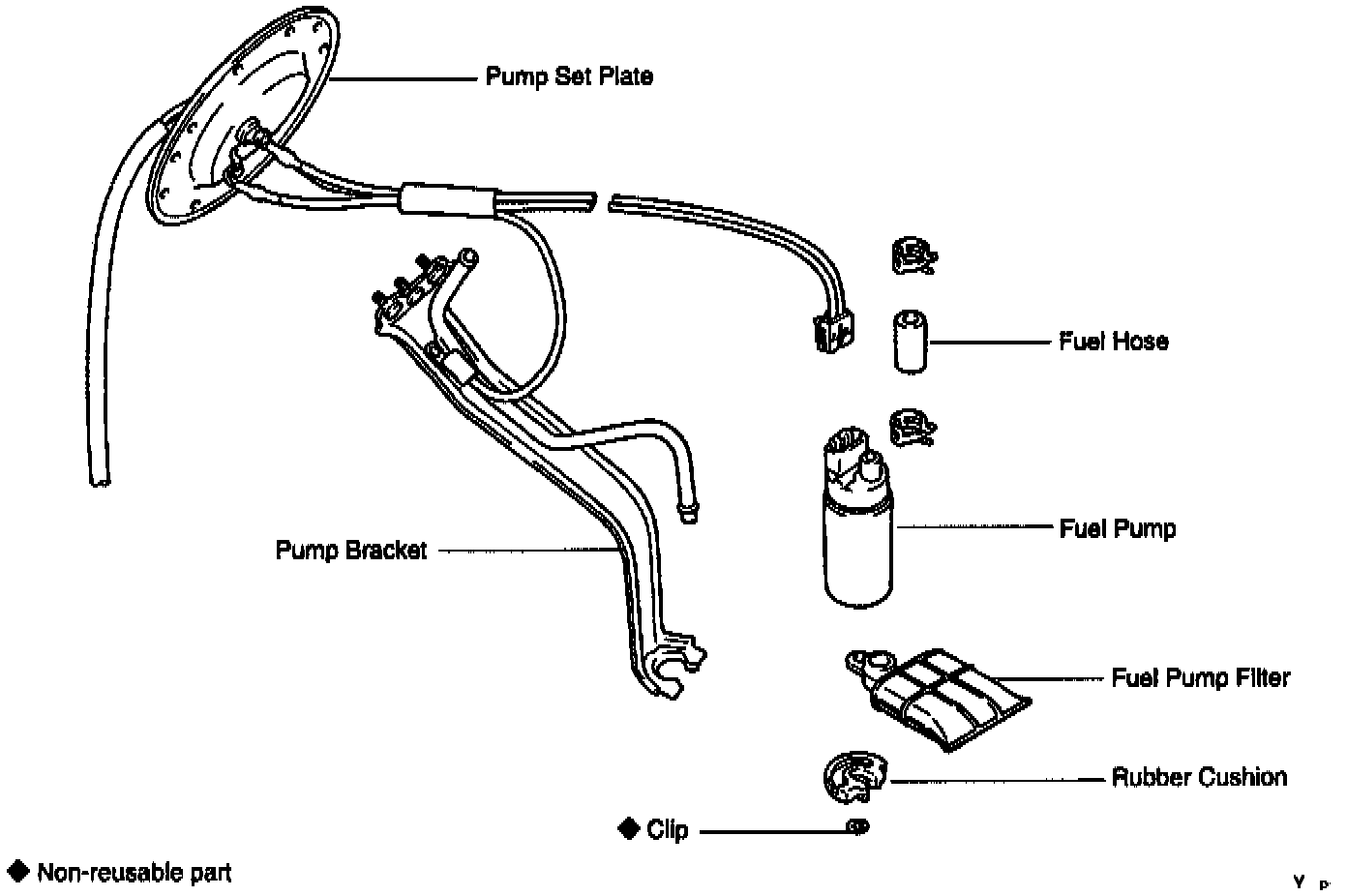

FUEL PUMP DISASSEMBLY





1. REMOVE PUMP SET PLATE FROM FUEL PUMP
- Disconnect the lead connector from the fuel pump, and remove the set plate.

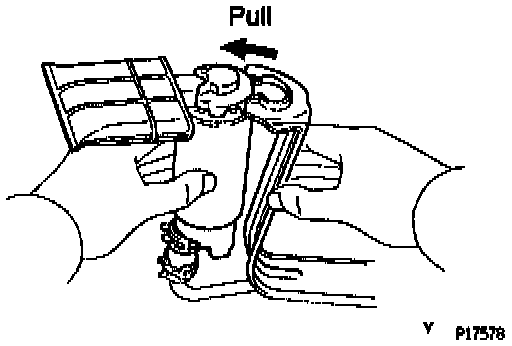

2. REMOVE FUEL PUMP FROM PUMP BRACKET
- Pull out the lower side of the fuel pump from the pump bracket.
- Remove the rubber cushion from the fuel pump.
- Disconnect the fuel hose from the fuel pump, and remove the fuel pump.
3. REMOVE FUEL PUMP FILTER FROM FUEL PUMP
- Using a small screwdriver, remove the clip.

INSTALLATION HINT: Use a new clip.

- Pull out the pump filter.

FUEL PUMP ASSEMBLY

ASSEMBLY HINT: Assembly is in the reverse order of disassembly.
