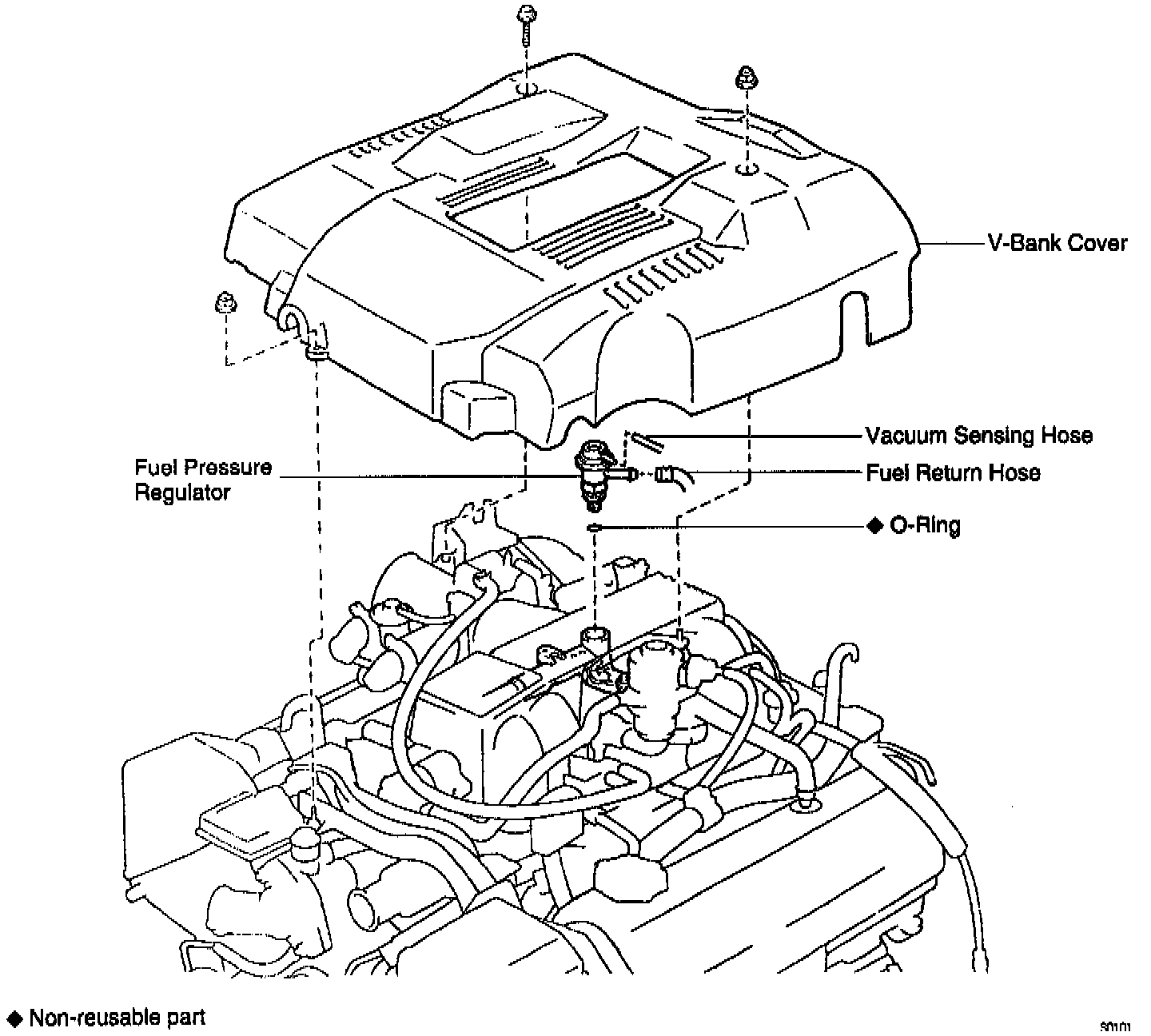

Fuel Pressure Regulator Removal

1. REMOVE V-BANK COVER
2. REMOVE FUEL PRESSURE REGULATOR

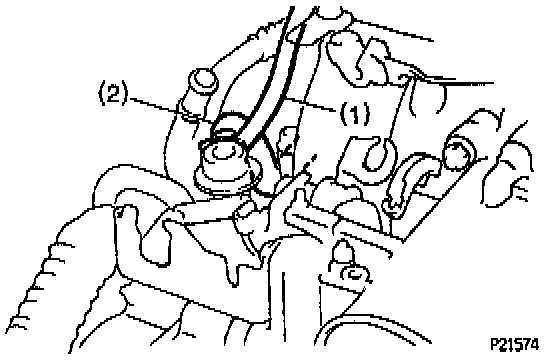

Disconnect these hoses from the pressure regulator:
(1) Vacuum sensing hose from VSV for fuel pressure
(2) Fuel return hose

CAUTION: Put a shop towel under the pressure regulator.

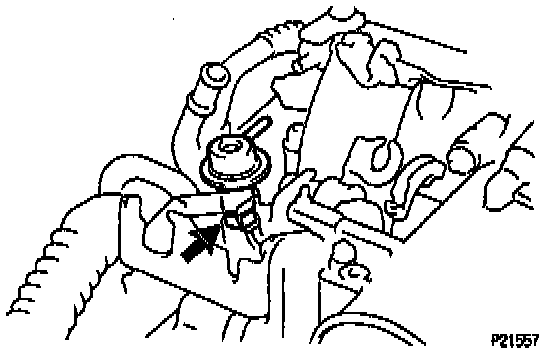

- Loosen the lock nut, and remove the pressure regulator.
- Remove the O-ring from the pressure regulator.
