Fuel Pressure Regulator Installation

1. INSTALL FUEL PRESSURE REGULATOR
- Fully loosen the lock nut on the pressure regulator.

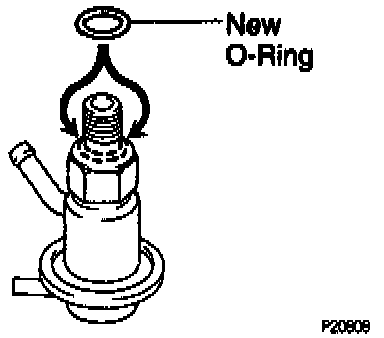

- Apply a light coat of gasoline to a new O-ring, and install it to the pressure regulator.
- Insert the pressure regulator into the delivery pipe by hand completely.

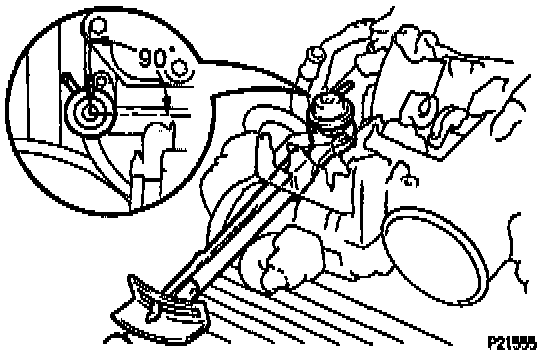

- Turn the pressure regulator counterclockwise until the vacuum sensing port faces in the direction indicated in the illustration.
- Tighten the lock nut.

Torque: 29 N.m (300 kgf.cm, 22 ft.lb.)

- Connect these hoses to the pressure regulator:
- Vacuum sensing hose from VSV for fuel pressure
- Fuel return hose





2. INSTALL V-BANK COVER
