Fuel Injector: Service Precautions

1. Observe the following precautions when removing and installing the injectors.
- Never reuse the O-ring.
- When placing a new 0-ring on the injector, take care not to damage it in any way.
- Coat a new O-ring with spindle oil or gasoline before installing-never use engine, gear or brake oil.

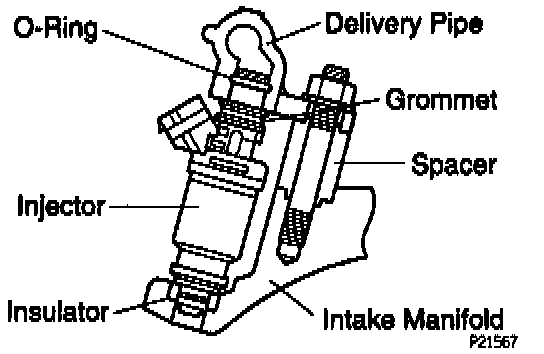

2. Install the injector to the delivery pipe and intake manifold as shown in the illustration.
