Evaporative Check Valve: Testing and Inspection

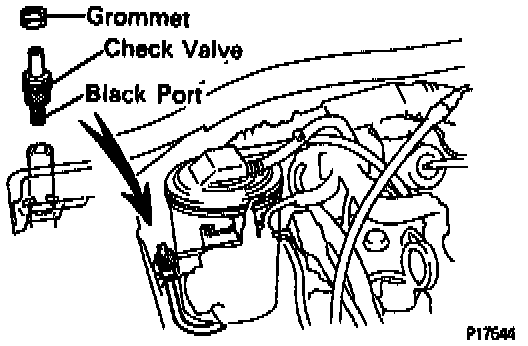

1. REMOVE CHECK VALVE
- Disconnect the grommet on the check valve from the bracket.
- Remove the check valve from the hose end on the charcoal canister.
- Remove the grommet from the check valve.

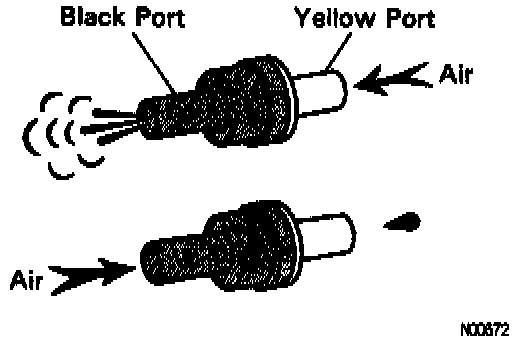

2. INSPECT CHECK VALVE
- Check that air flows from the yellow port to the black port.
- Check that air does not flow from the black port to the yellow port.
- If operation is not as specified. replace the check valve.

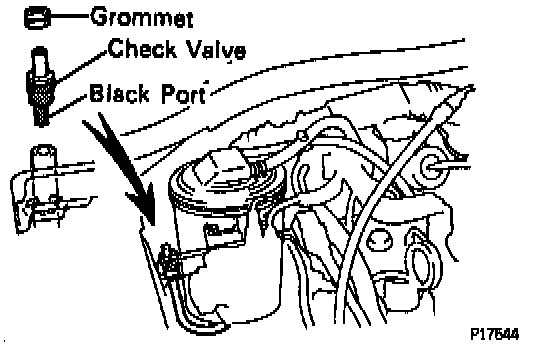

3. REINSTALL CHECK VALVE

HINT: Install the check valve with black port facing the charcoal canister side.

- Install the grommet to the check valve.
- Install the check valve to the hose end on the charcoal canister.
- Install the grommet on the check valve to the bracket.
