Idle Speed/Throttle Actuator - Electronic: Service and Repair

IAC VALVE REMOVAL
1. DRAIN ENGINE COOLANT.

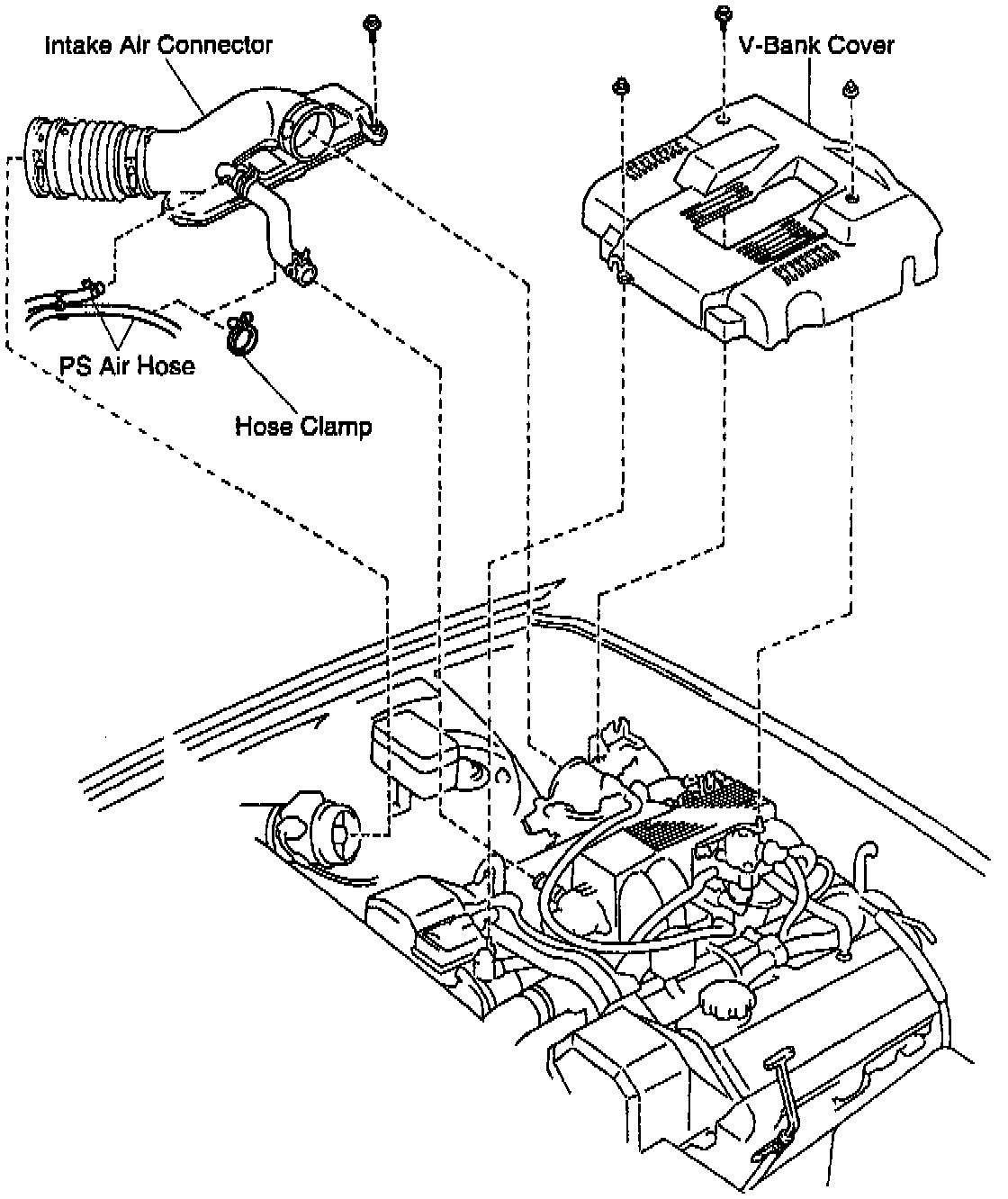

2. REMOVE V-BANK COVER.

3. REMOVE INTAKE AIR CONNECTOR.

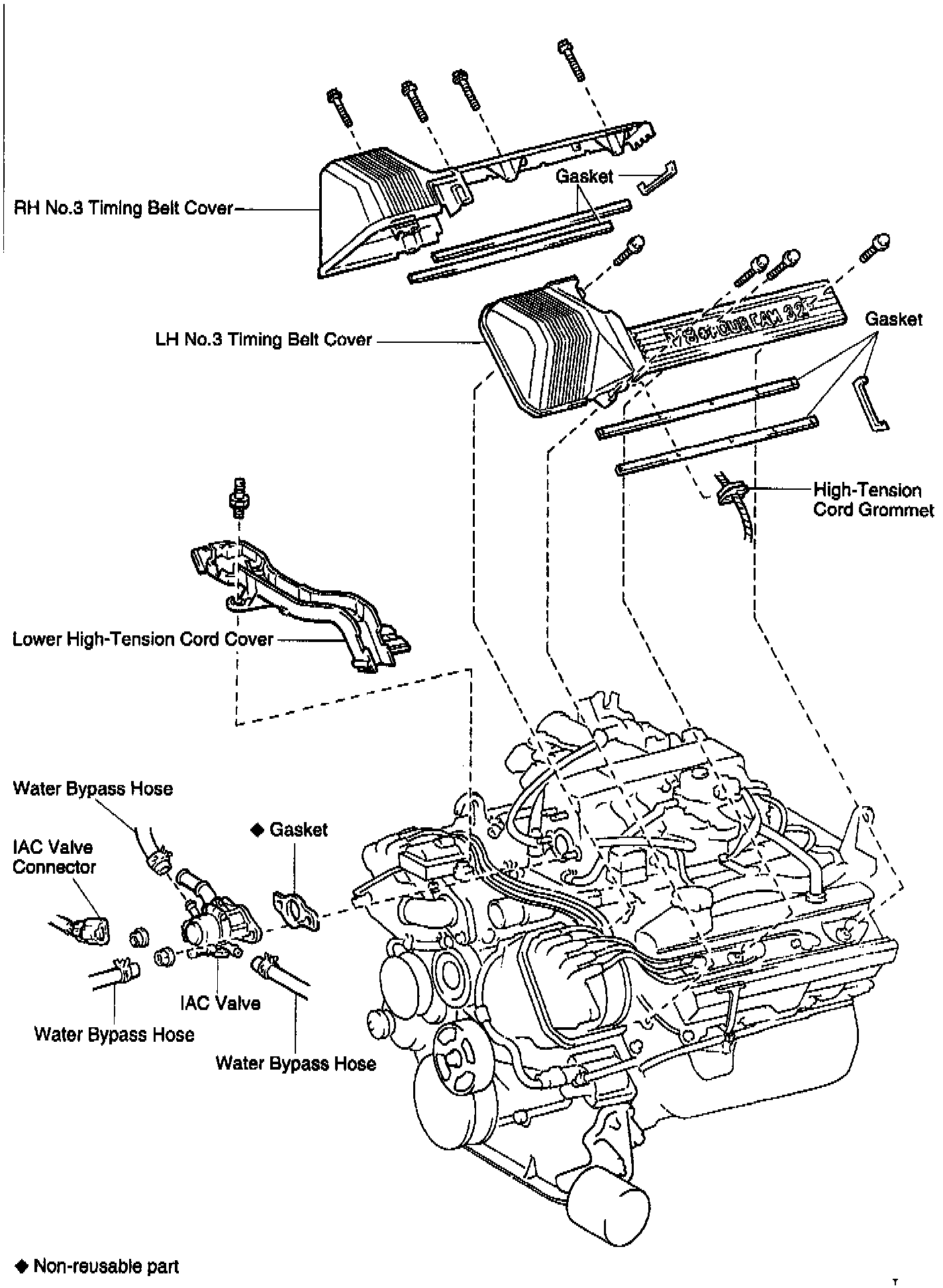

4. REMOVE NO.3 TIMING BELT COVER.

5. REMOVE LOWER HIGH-TENSION CORD COVER.





6. REMOVE IAC VALVE.
- Disconnect 3 water bypass hoses from the IAC valve.
- Disconnect the IAC valve connector.
- Remove the 2 nuts, IAC valve and gasket.

Torque: 18 N.m (185 kgf.cm, 13 ft.lb.)

INSTALLATION HINT: Use a new gasket.

IAC VALVE INSTALLATION

INSTALLATION HINT: Installation is in the reverse order of removal.
