Pinout Values and Diagnostic Parameters

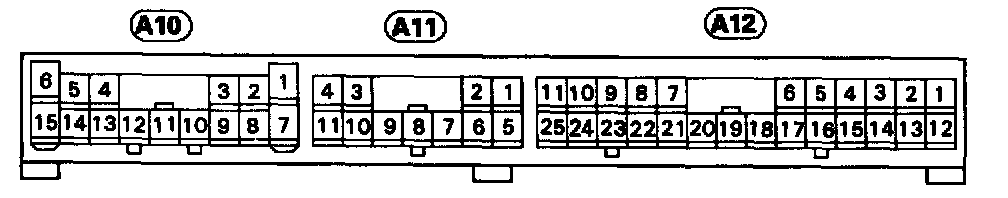

Terminal View:





A/C Control Assembly Terminal Standard Value

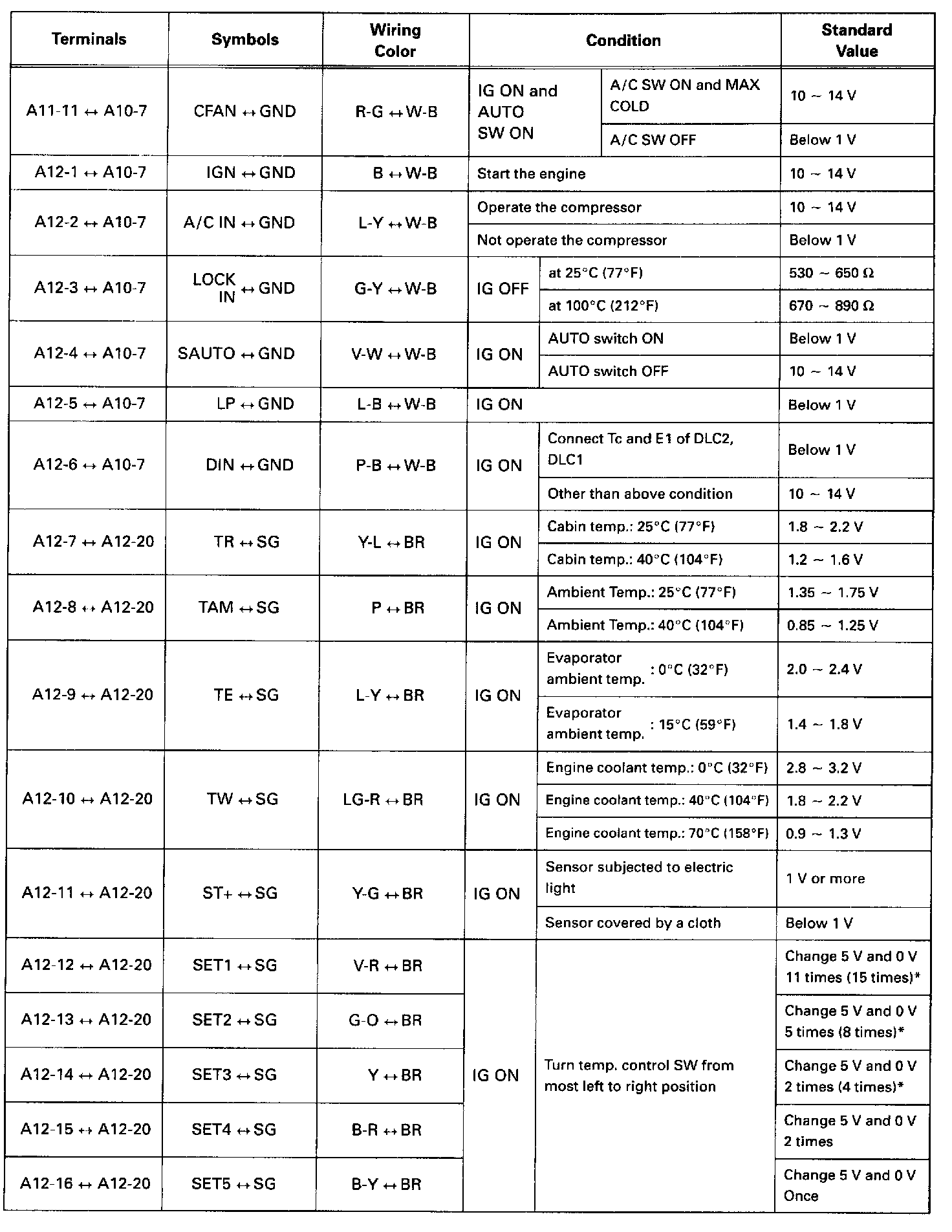

Part 1:

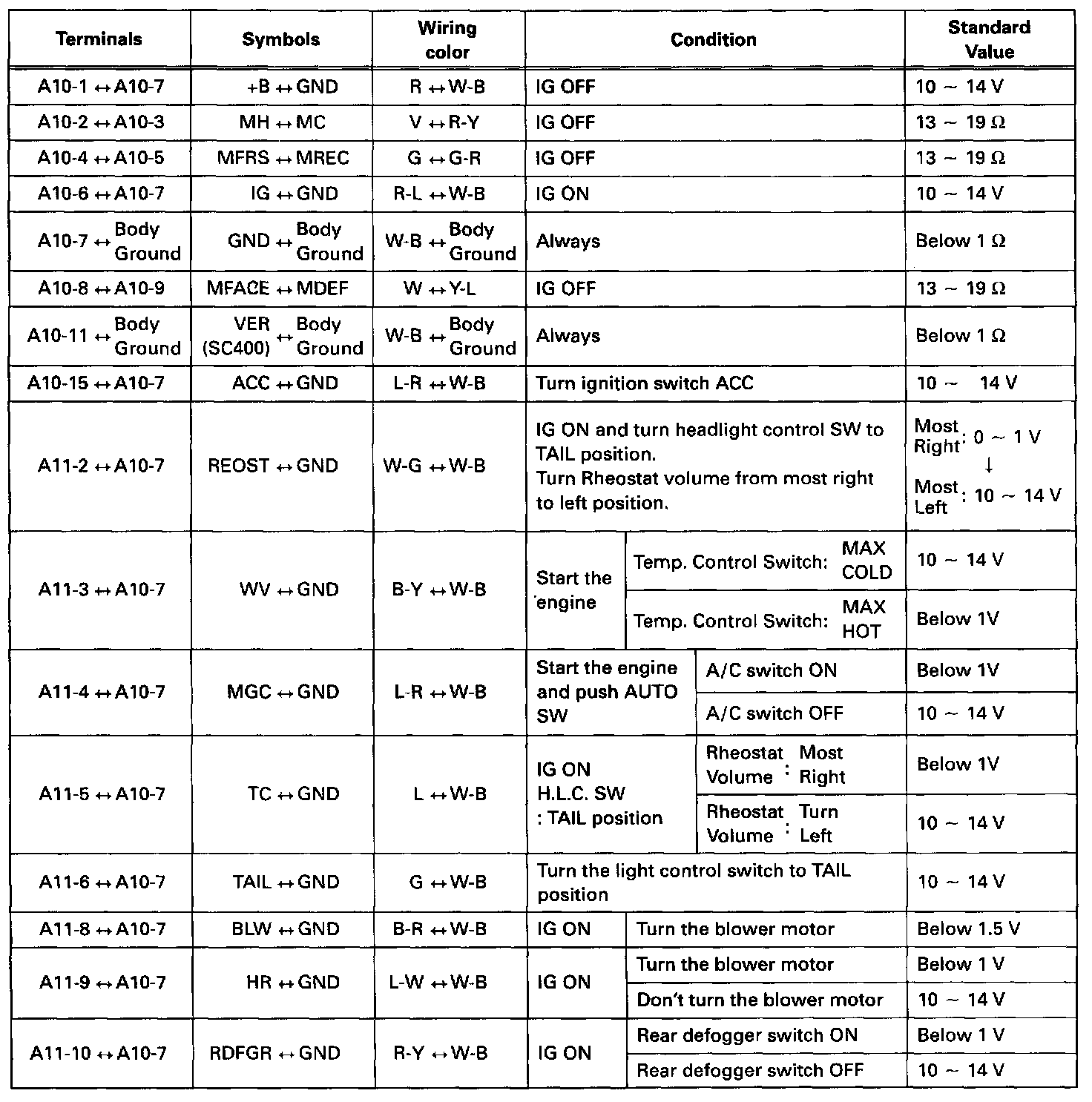

Part 2:

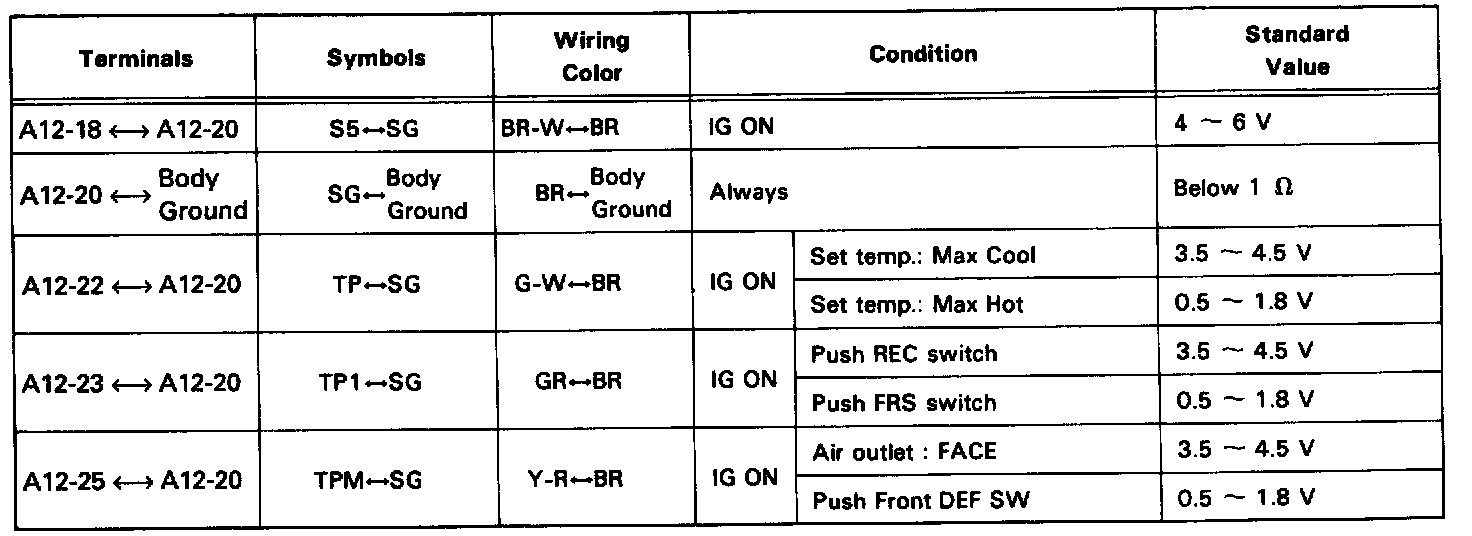

Part 3:
