Connecting Rod: Service and Repair

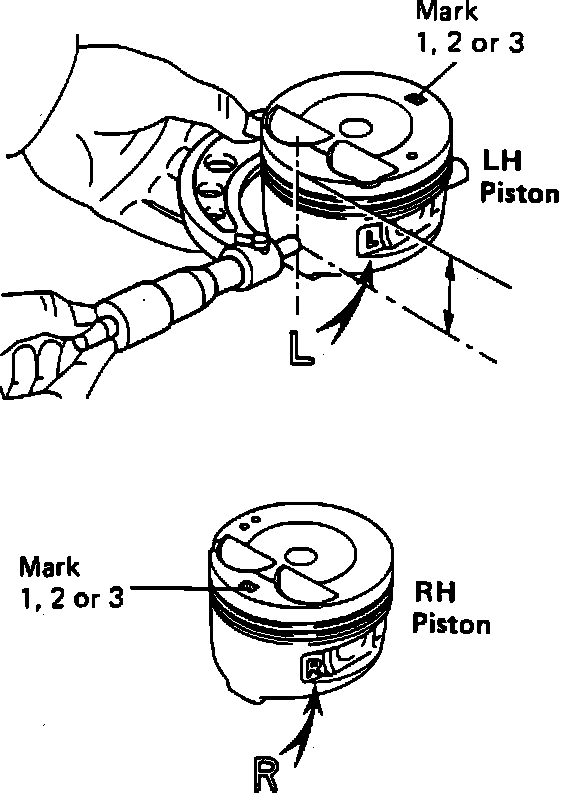

Fig. 44 Piston Direction & Size Locations:

Pistons are only available in standard sizes 1, 2 and 3. For reference to the sizes needed and the front marks of the pistons, refer to Fig. 44. This figure also shows right and left marks of the pistons.
