Thermostat: Service and Repair

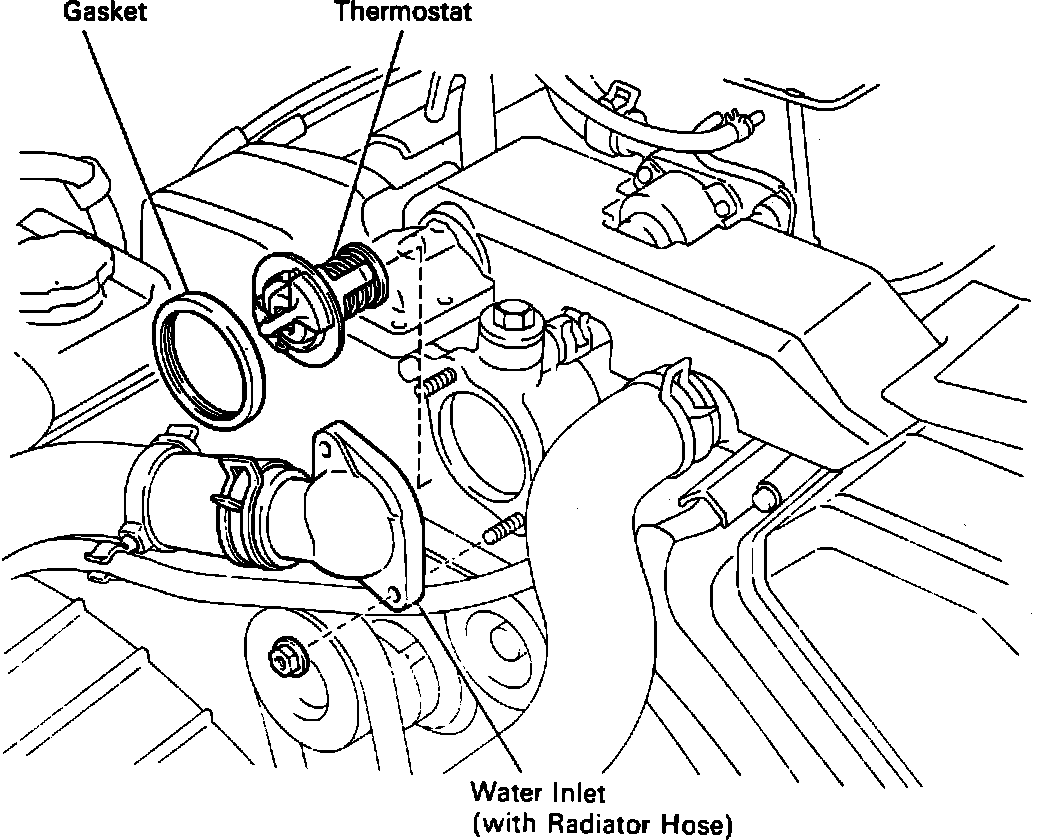

Fig. 51 Thermostat Installation:

1. Drain engine coolant.
2. Remove two water inlet mounting nuts, then water inlet, thermostat and gasket, Fig. 51.
3. Install new thermostat in water inlet housing with jiggle valve facing straight upward.
4. Install new gasket and water inlet to inlet housing and torque nuts to 13 ft. lb.
5. Fill engine with coolant, then start engine and check for leaks.
