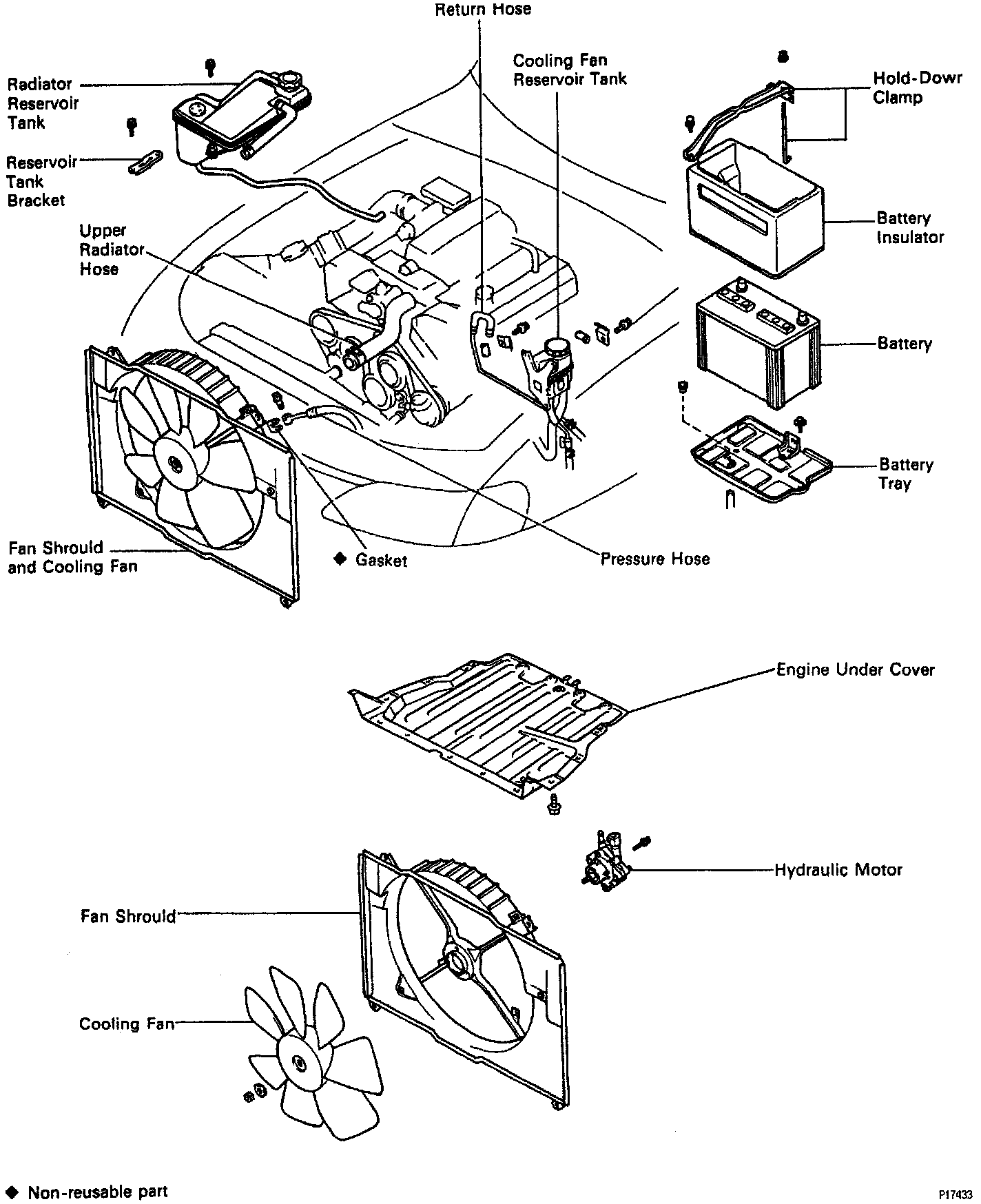

Removal

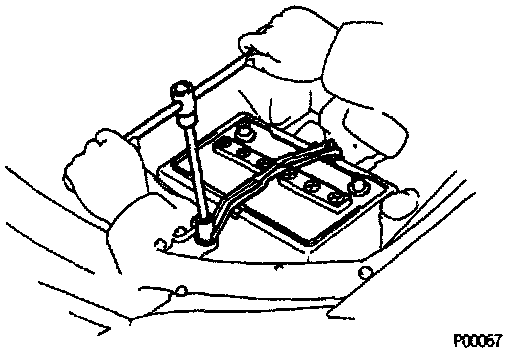

1. Remove battery.

CAUTION: Work must be started after 90 seconds from the time the Ignition switch is turned to the LOCK position and the negative (-) terminal cable is disconnected from the battery.

2. Remove engine under cover.
3. Drain engine coolant.





4. Remove radiator reservoir tank:
a. Disconnect the coolant level sensor connector.
b. Disconnect the following hoses:
1. Reservoir hose from water inlet housing
2. Reservoir hose from radiator





c. Remove the 2 bolts and reservoir tank bracket.
d. Remove the bolt holding the reservoir tank to the radiator.
e. Disconnect the reservoir tank from the reservoir tank bracket, and remove the reservoir tank.

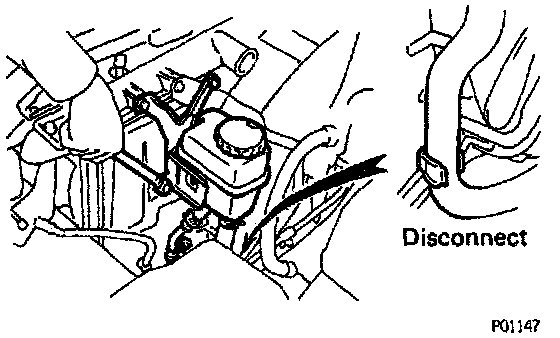

5. Disconnect the following hoses:

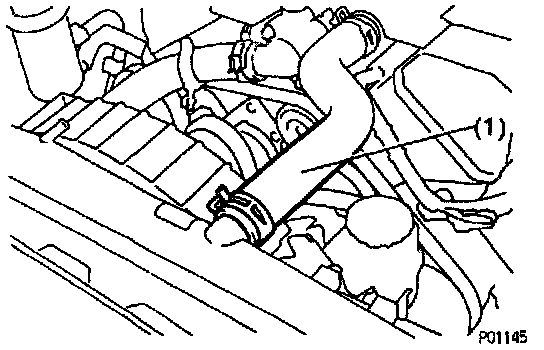

a. Upper radiator hose from radiator.





b. Pressure hose from hydraulic motor.
c. Return hose from hydraulic motor

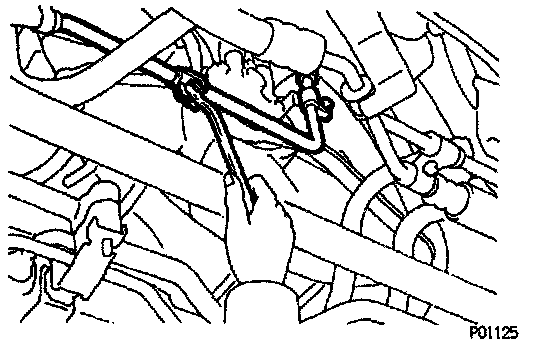

6. Disconnect cooling fan inlet pipe from fan shroud:
a. Remove the 2 bolts, brackets and bushings. and disconnect the inlet pipe.

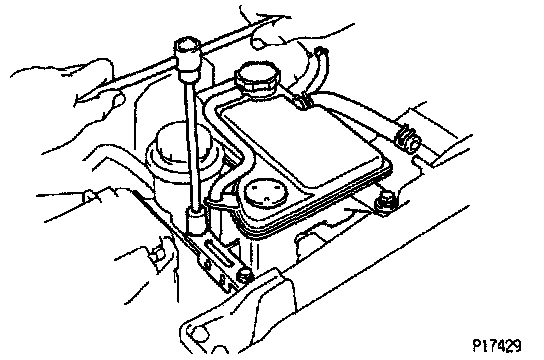

7. Disconnect cooling fan reservoir tank from fan shroud:
a. Disconnect the suction hose from the clamp on the fan shroud.
b. Remove the 4 bolts, and disconnect the reservoir tank.

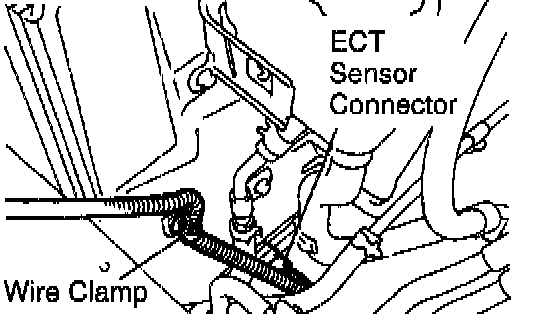

8. Disconnect ECT sensor connector (for cooling fan).

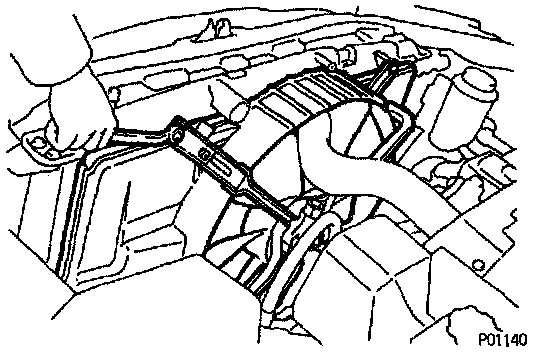

9. Remove radiator fan shroud:
a. Remove the 4 bolts, and disconnect the fan shroud from the radiator.

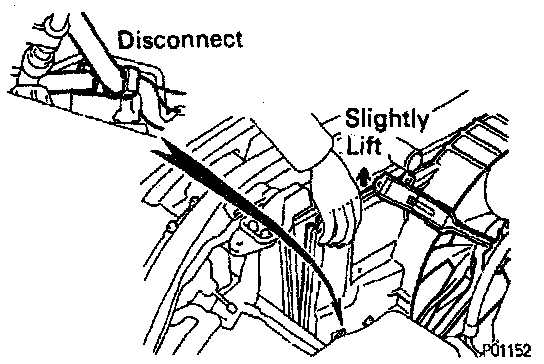

b. Slightly lift the fan shroud, and disconnect the 2 oil cooler hoses (for cooling fan) from the hose clamp on the fan shroud.
c. Remove the fan shroud.
10. Remove cooling fan from hydraulic motor by loosening the pulley nut clockwise, and remove the nut, plate washer, and fan.
11. Remove the 3 bolts and hydraulic motor from the fan shroud.
