Lexus
>>
1996
>>
SC 400 V8-4.0L (1UZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Antitheft and Alarm Systems
Antitheft and Alarm Systems

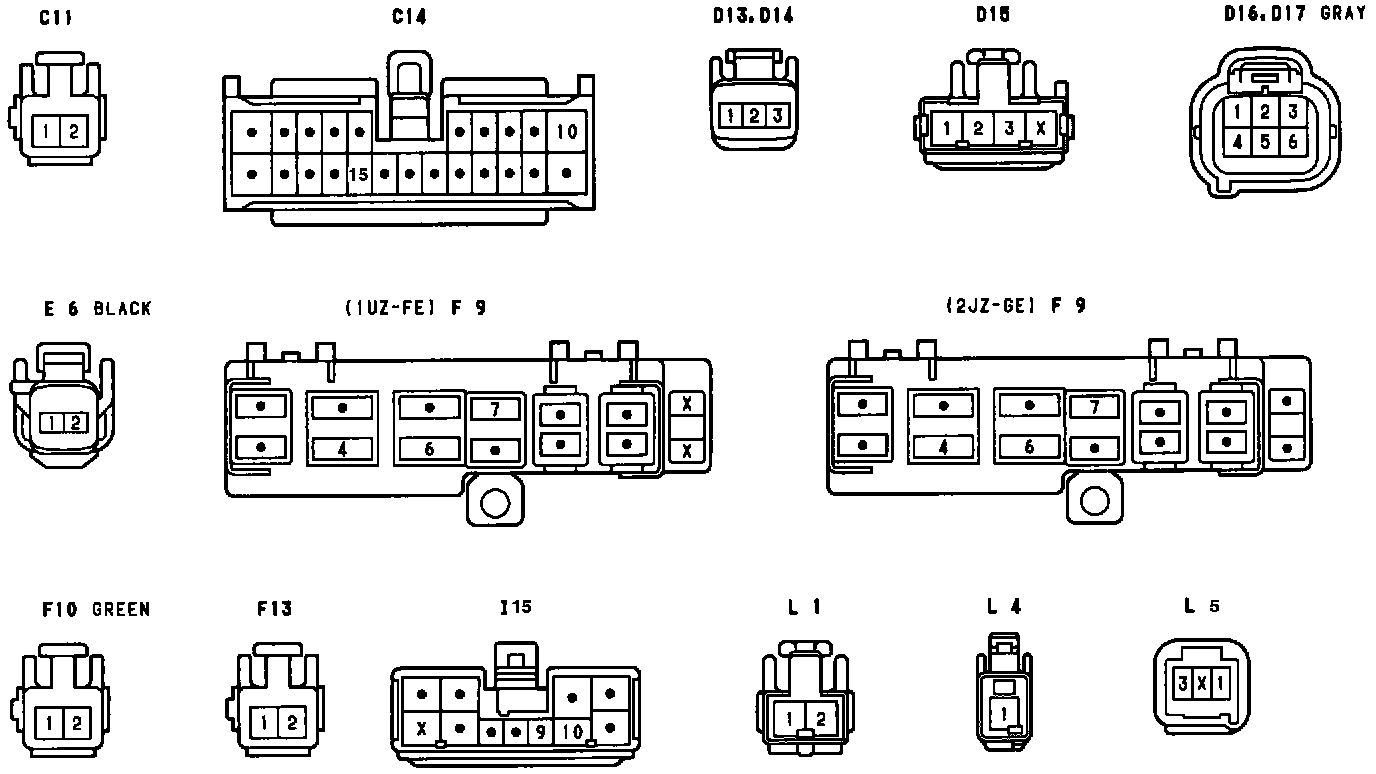

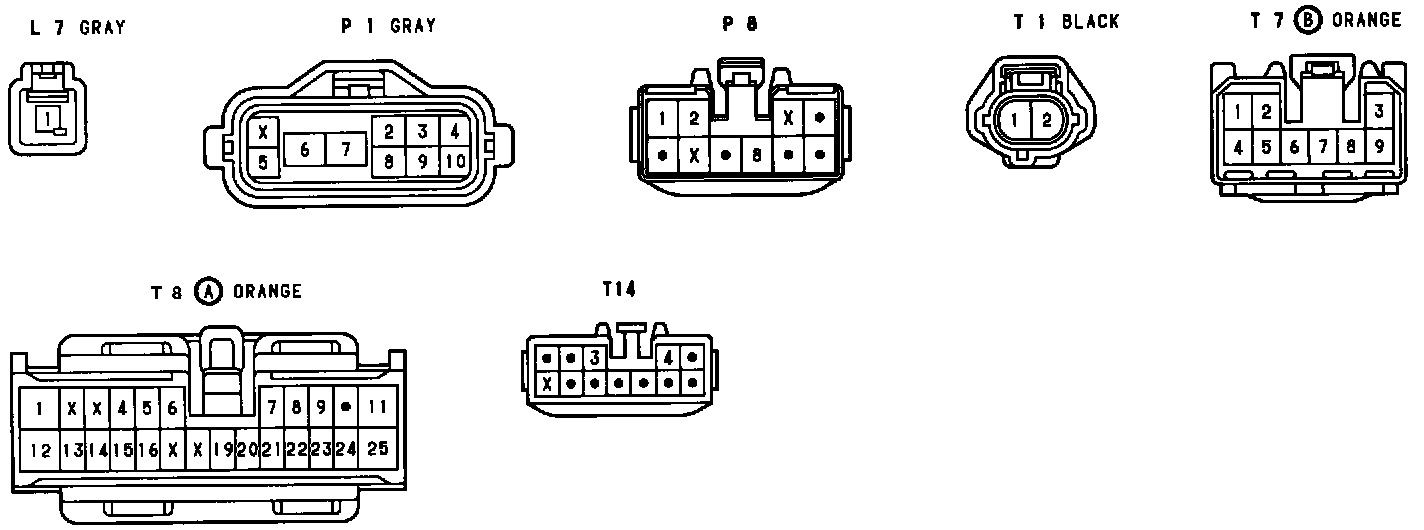

Theft Deterrent And Door Lock Control-Connectors:
Theft Deterrent And Door Lock Control-Connectors:
