Lexus
>>
1996
>>
SC 400 V8-4.0L (1UZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Antilock Brakes / Traction Control Systems
>>
Electronic Brake Control Module
>>
ABS W/ Traction Control (TRAC)
ABS W/ Traction Control (TRAC)

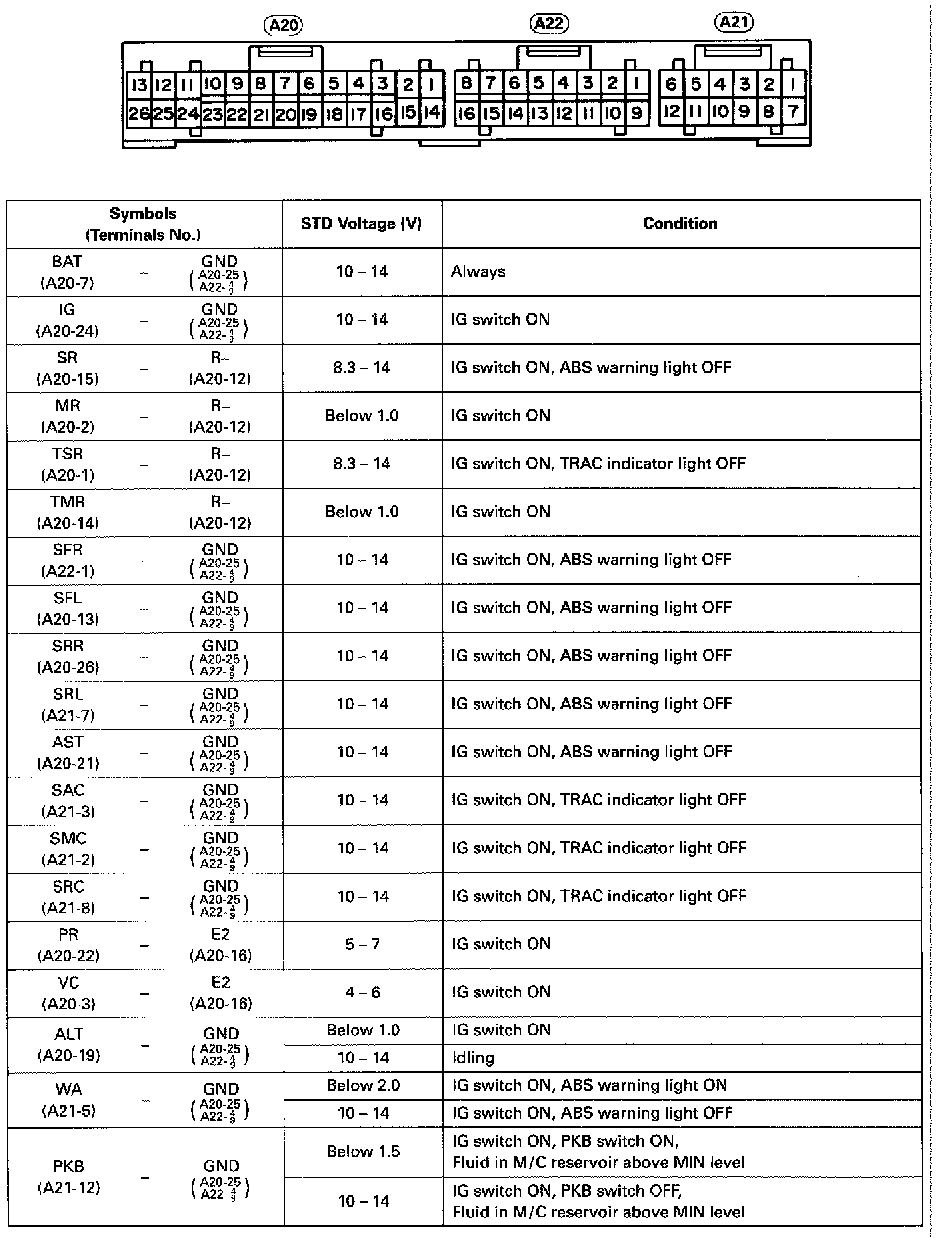

Fig. 45 ABS & TRAC ECU Terminal Identification & Values (Part 1 Of 2):

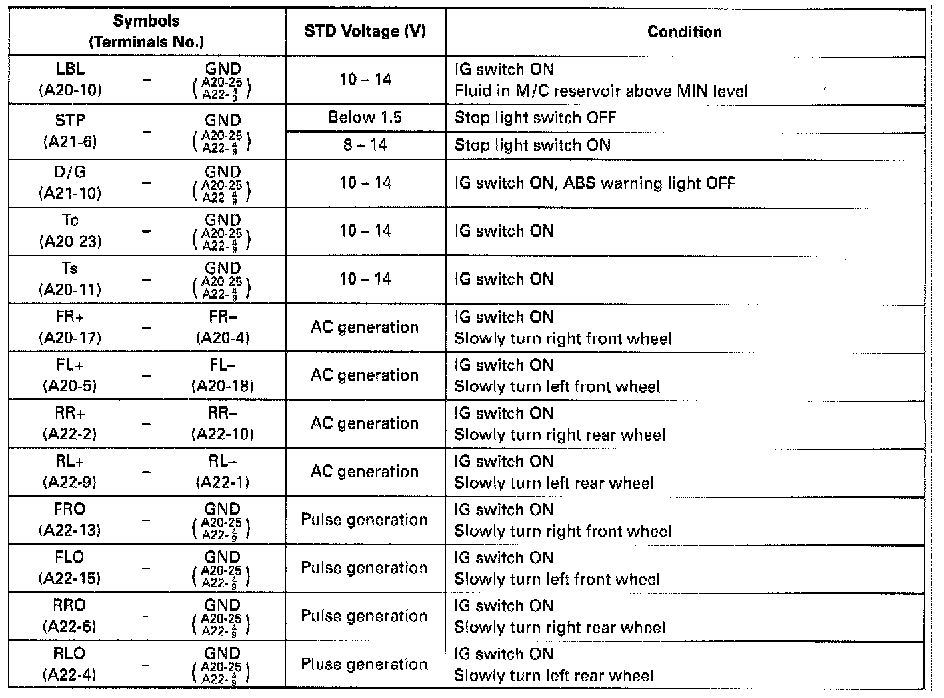

Fig. 45 ABS & TRAC ECU Terminal Identification & Values (Part 2 Of 2):
