Stop Light Switch Circuit

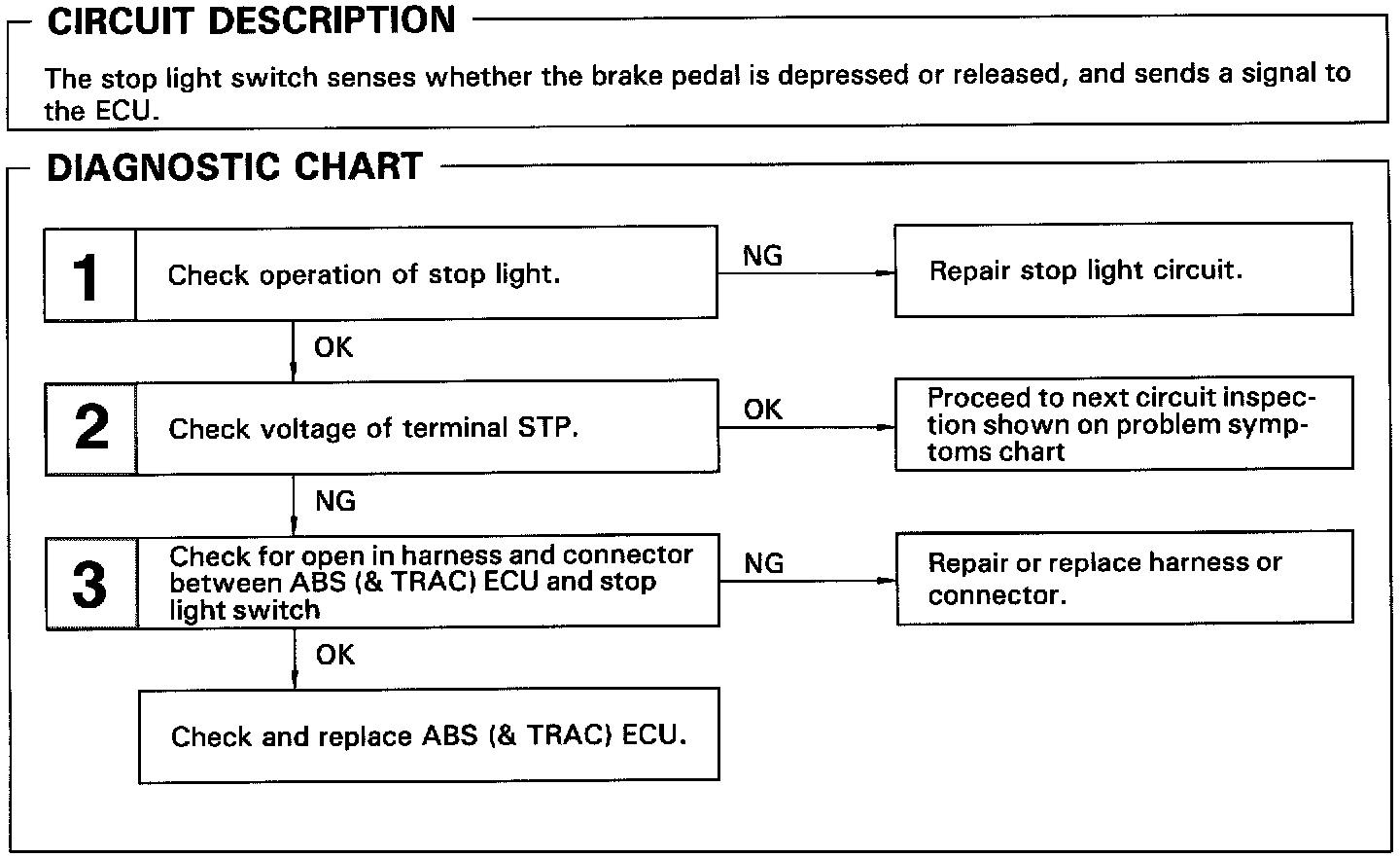

Stop Light Switch Circuit Flow Chart:

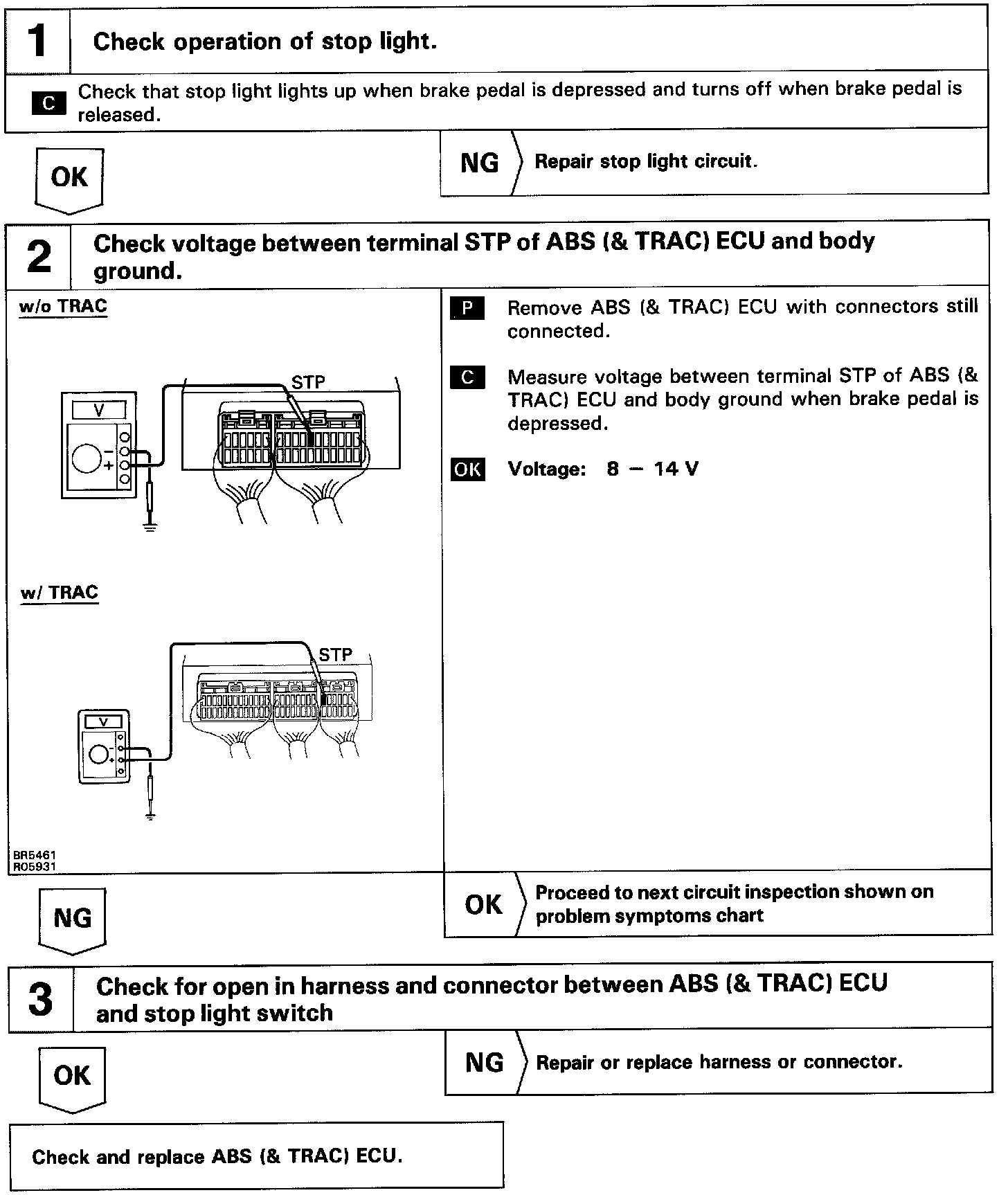

Stop Light Switch Circuit Inspection:
