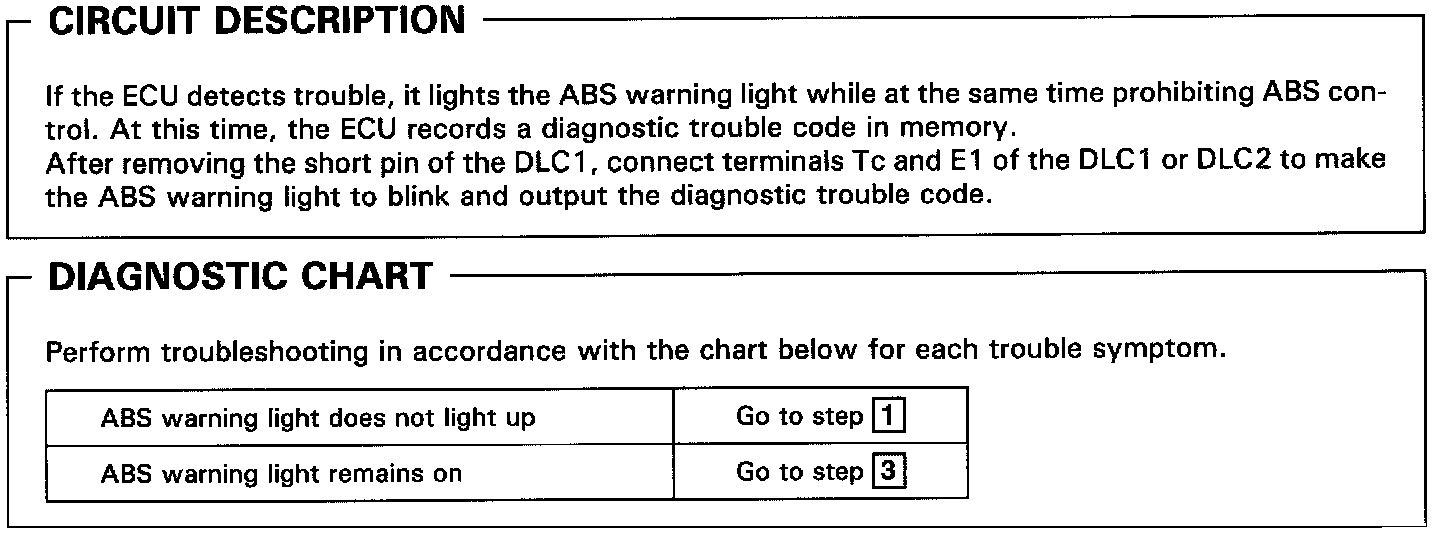

ABS Warning Light Circuit

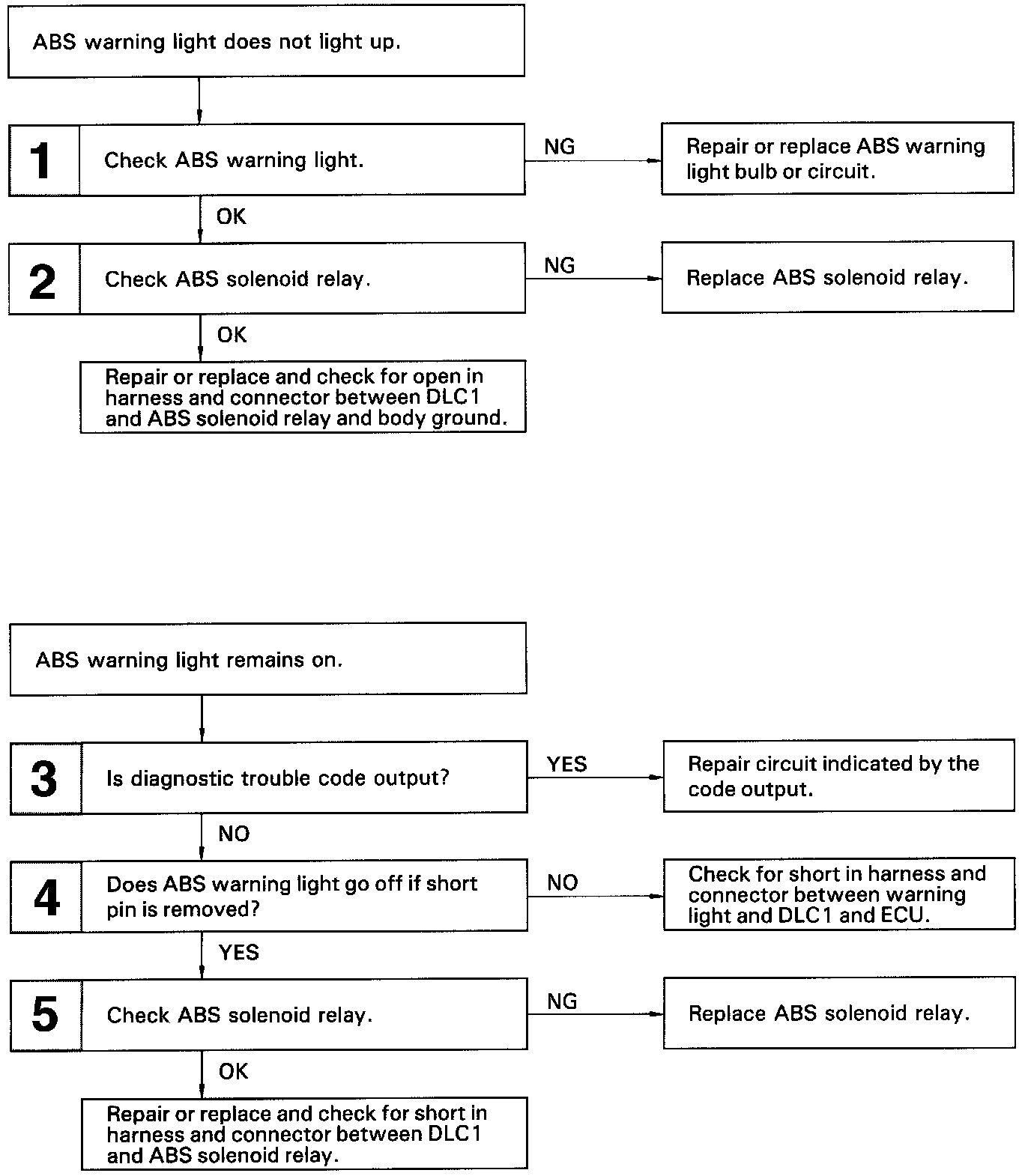

ABS Warning Light Switch Circuit Flow Chart (Part 1 Of 2):

ABS Warning Light Switch Circuit Flow Chart (Part 2 Of 2):

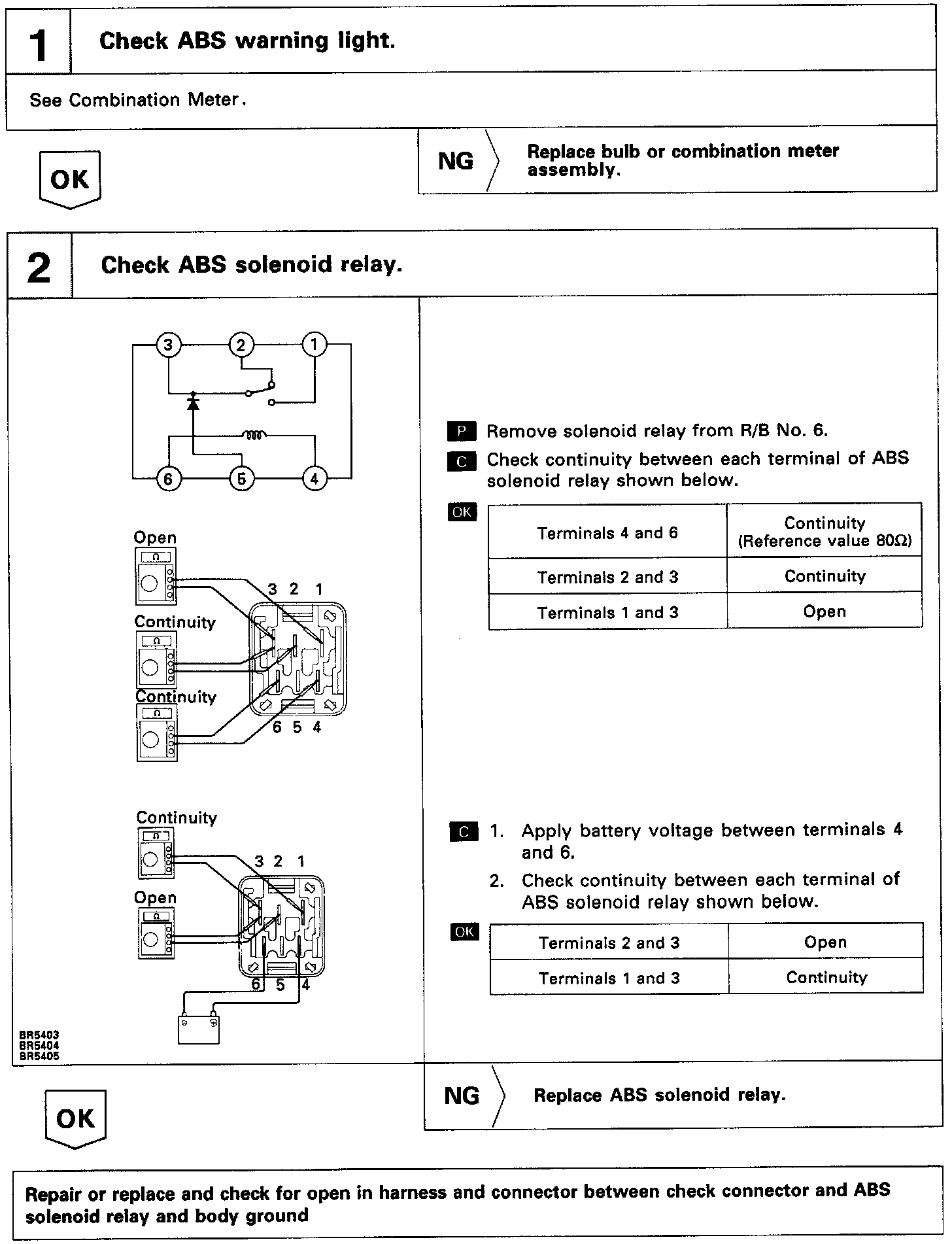

ABS Warning Light Switch Circuit Inspection (Part 1 Of 2):

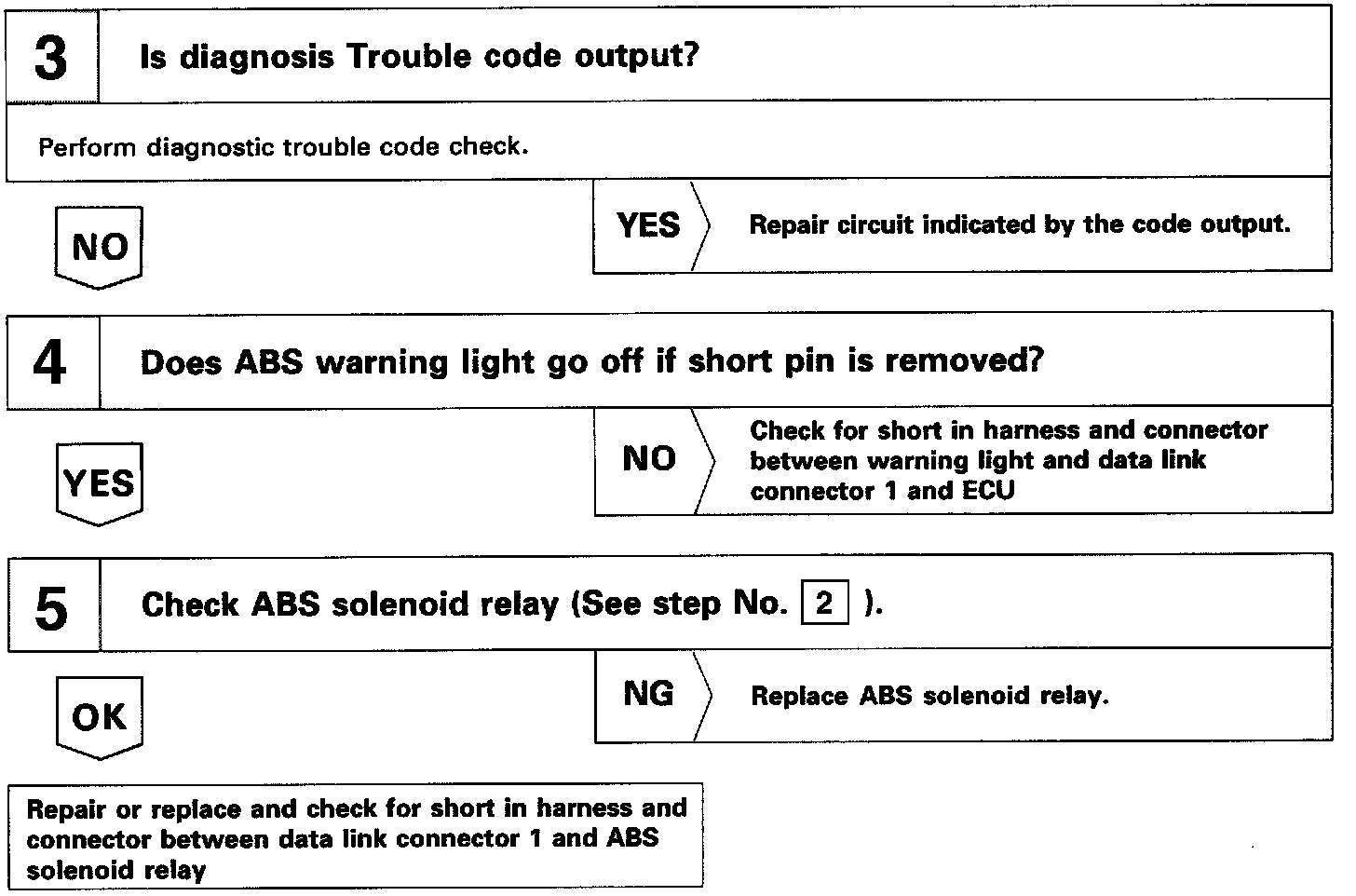

ABS Warning Light Switch Circuit Inspection (Part 2 Of 2):
