Home >> Lexus >> 1996 >> SC 400 V8-4.0L (1UZ-FE) >> Repair and Diagnosis >> Body and Frame >> Roof and Associated Components >> Sunroof / Moonroof >> Diagrams >> Electrical Diagrams

Electrical Diagrams

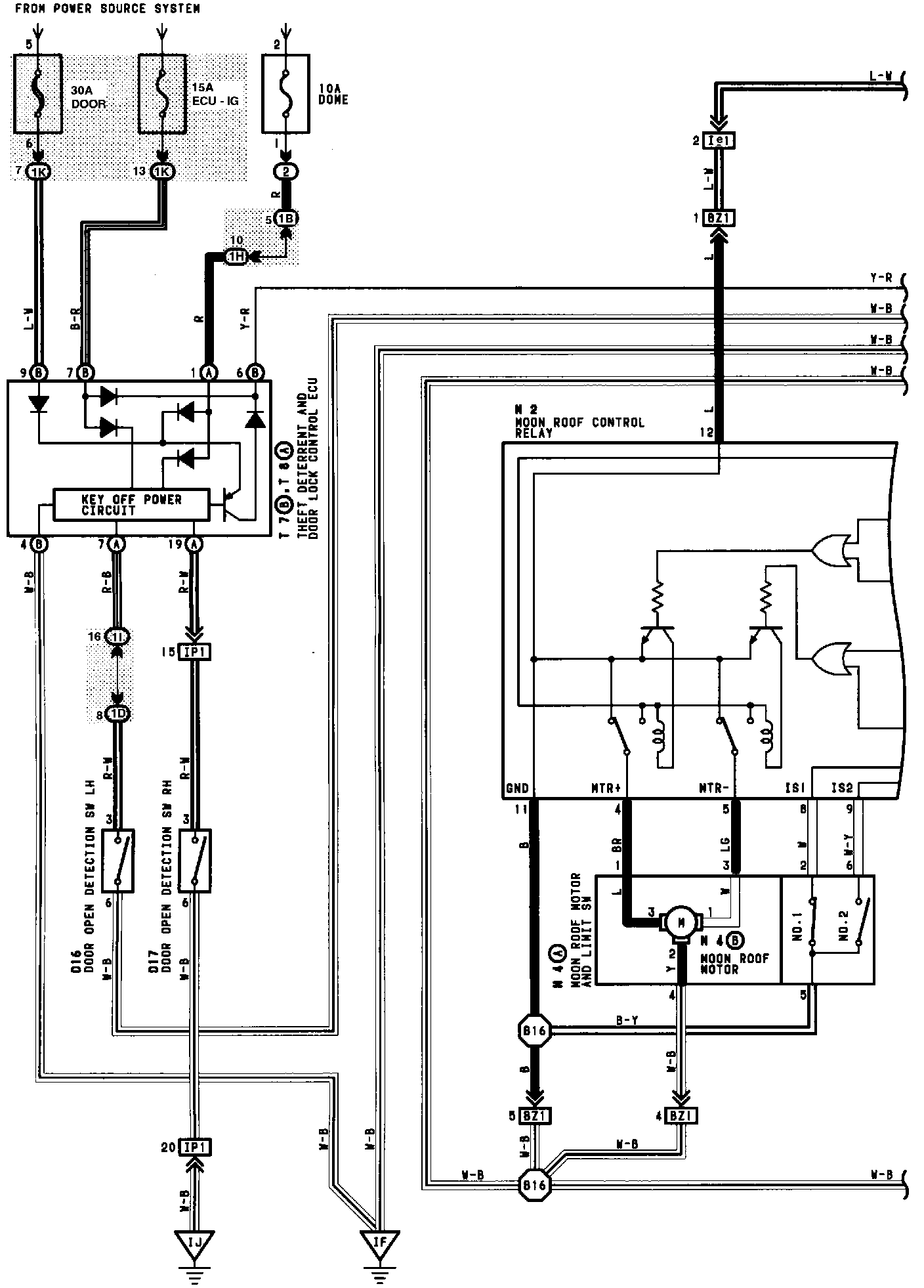

Moon Roof (Part 1 Of 2):

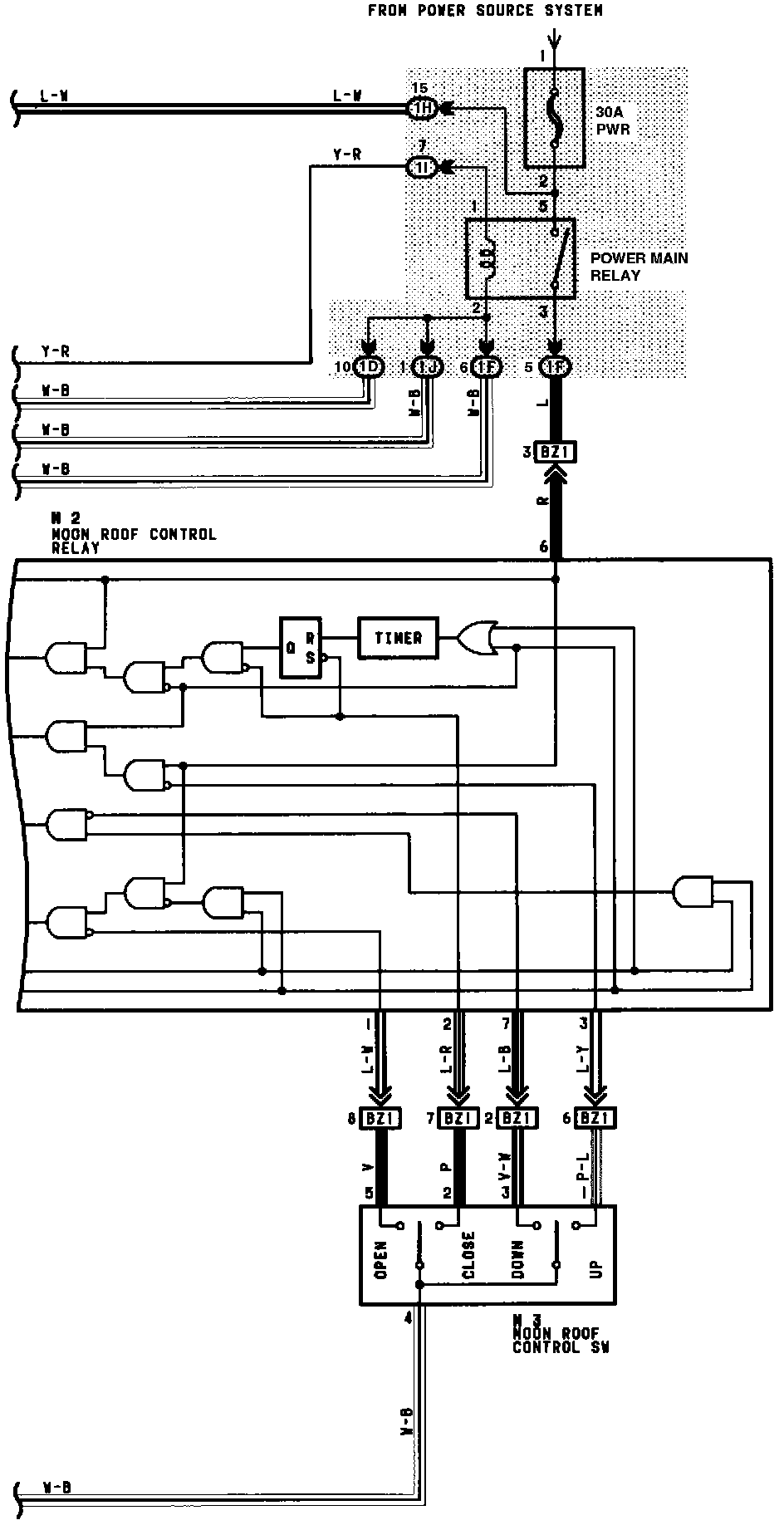

Moon Roof (Part 2 Of 2):
