Transmission Control System

CIRCUIT DESCRIPTION

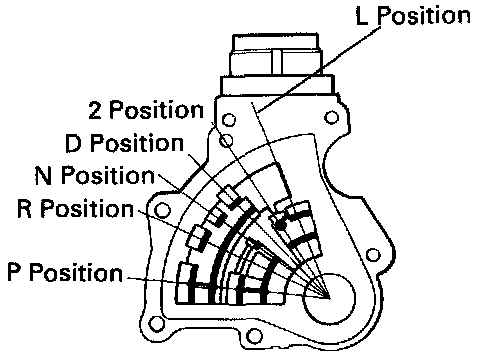

The Park/Neutral position switch detects the shift lever position and sends signals to the ECM.
The ECM receives signals (R, NSW, 2 and L) from the park/neutral position switch. When the signal is not sent to the ECM from the park/neutral position switch, the ECM judges that the shift lever is in the D position.

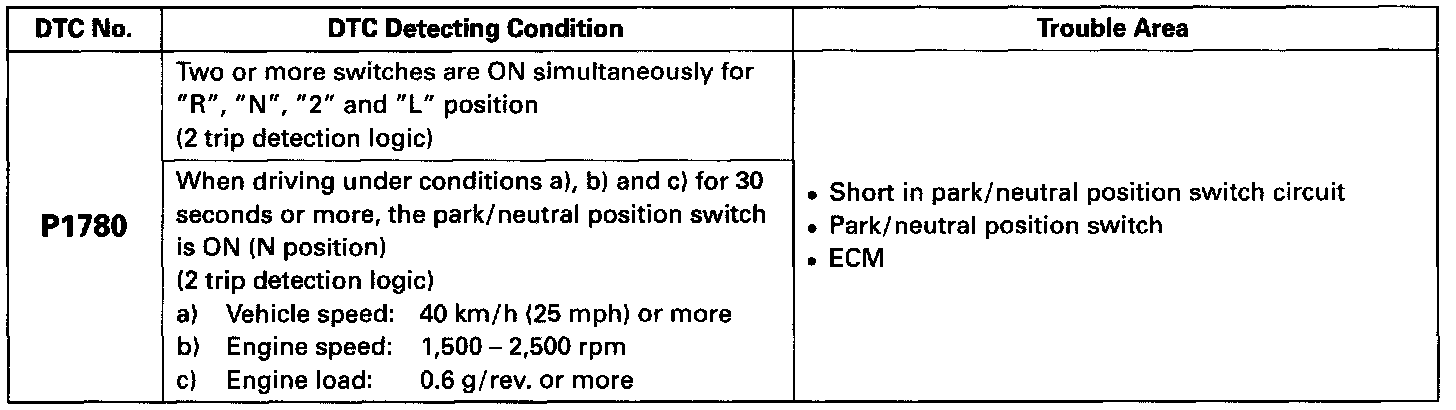

DETECTING CONDITION





WIRING DIAGRAM

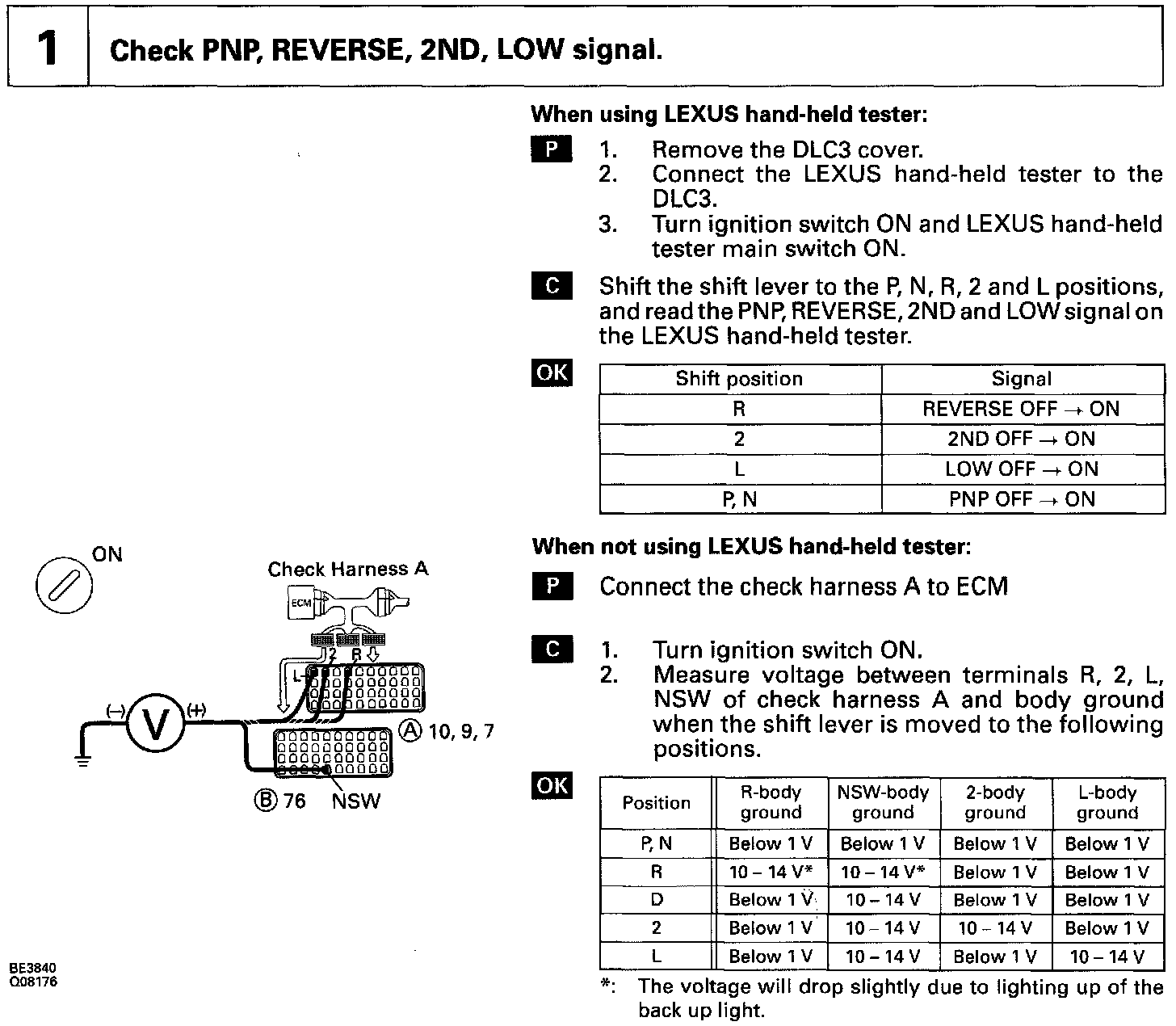

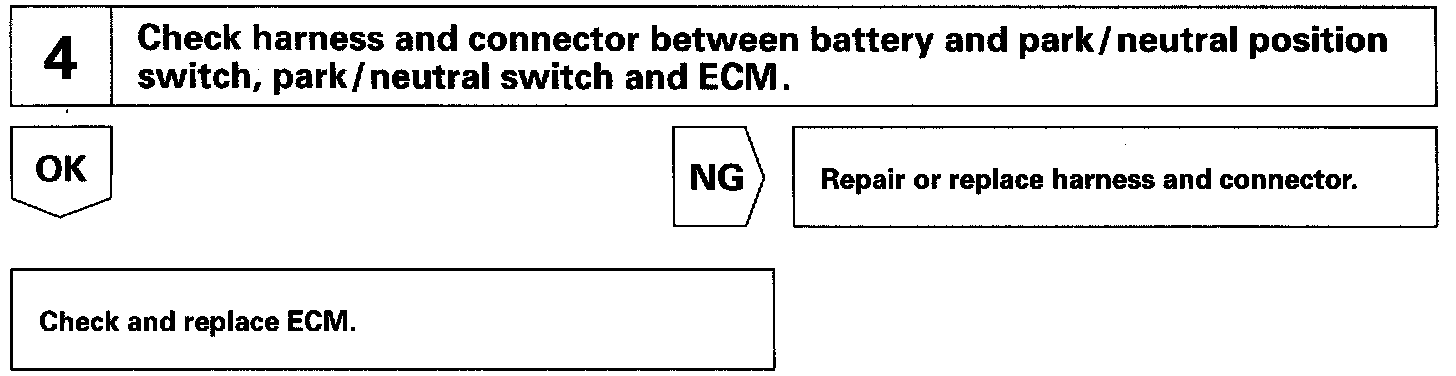

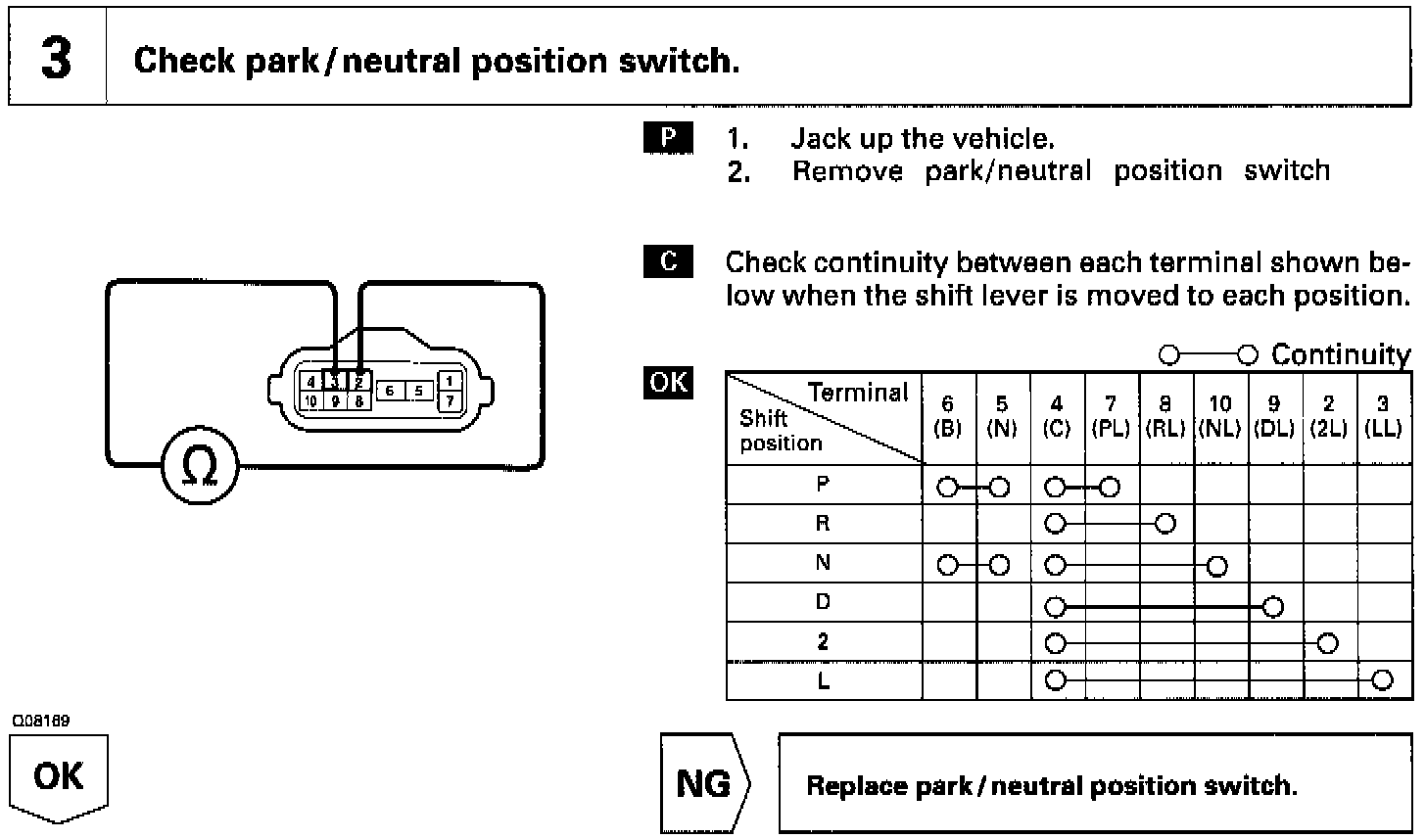

INSPECTION PROCEDURE
