P1700

CIRCUIT DESCRIPTION

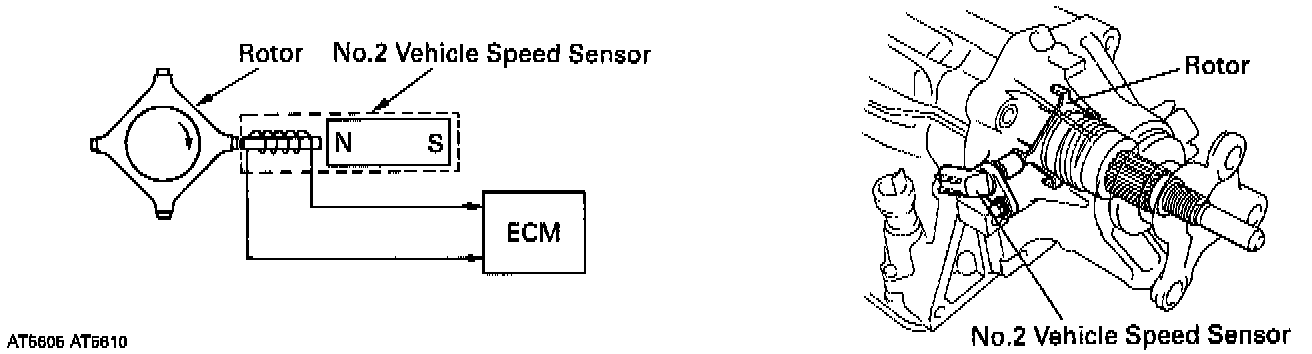

The No.2 vehicle speed sensor detects the rotation speed of the transmission output shaft and sends signals to the ECM. The ECM determines the vehicle speed based on the these signals. An AC voltage is generated in the No.2 vehicle speed sensor coil as the rotor mounted on the output shaft rotates, and this voltage is sent to the ECM. The gear shift point and lock-up timing are controlled by the ECM based on the signals from this vehicle speed sensor and the throttle position sensor signal.

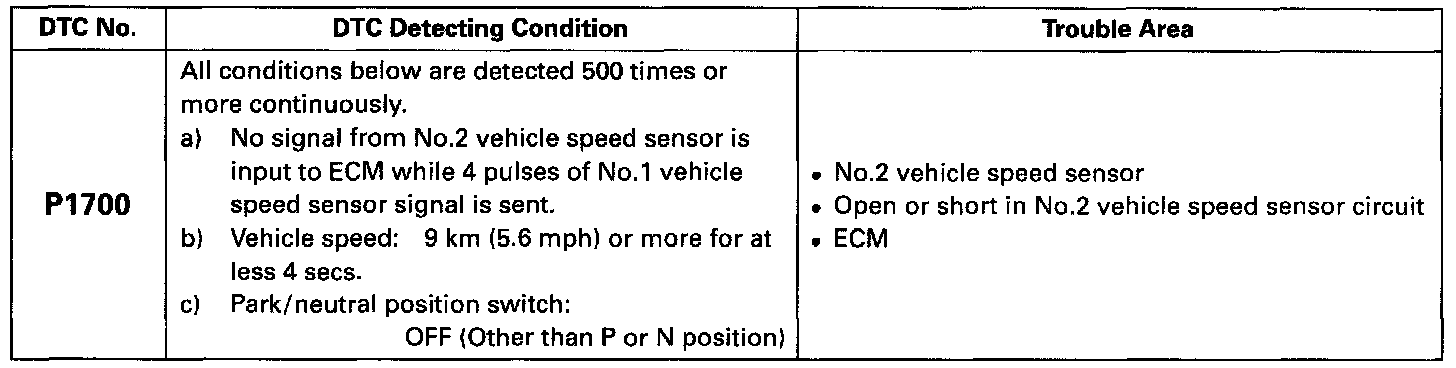

DETECTING CONDITION





Reference

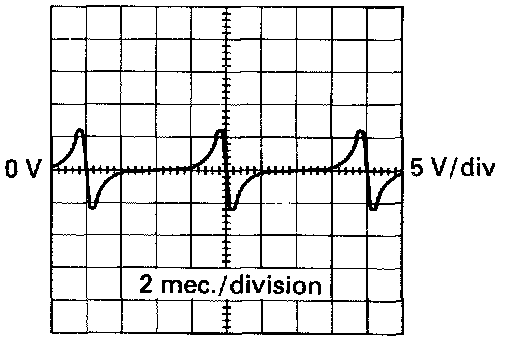

- Waveform between terminals SP2+ and SP2- when vehicle speed is approx. 60 km/h (37 mph)

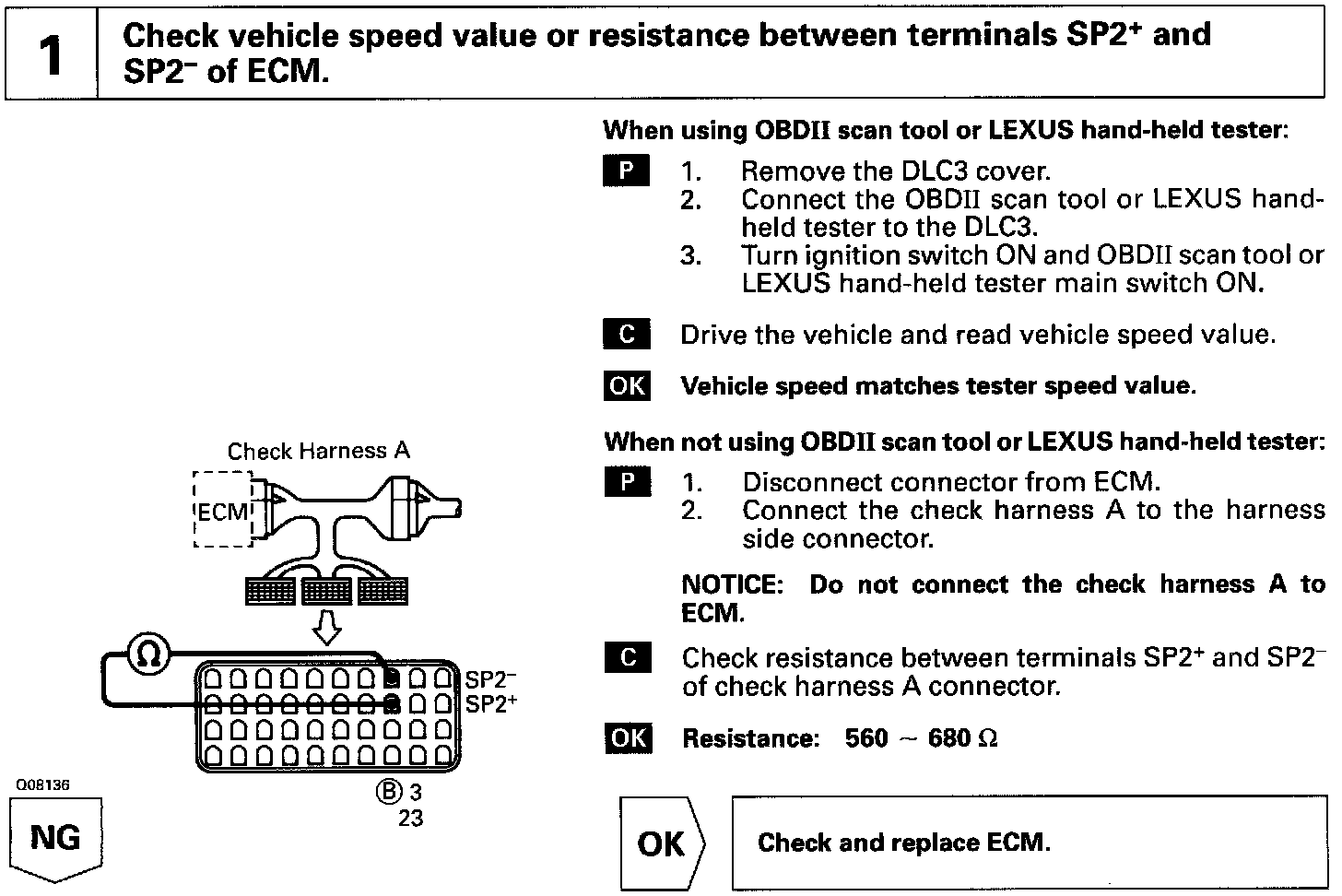

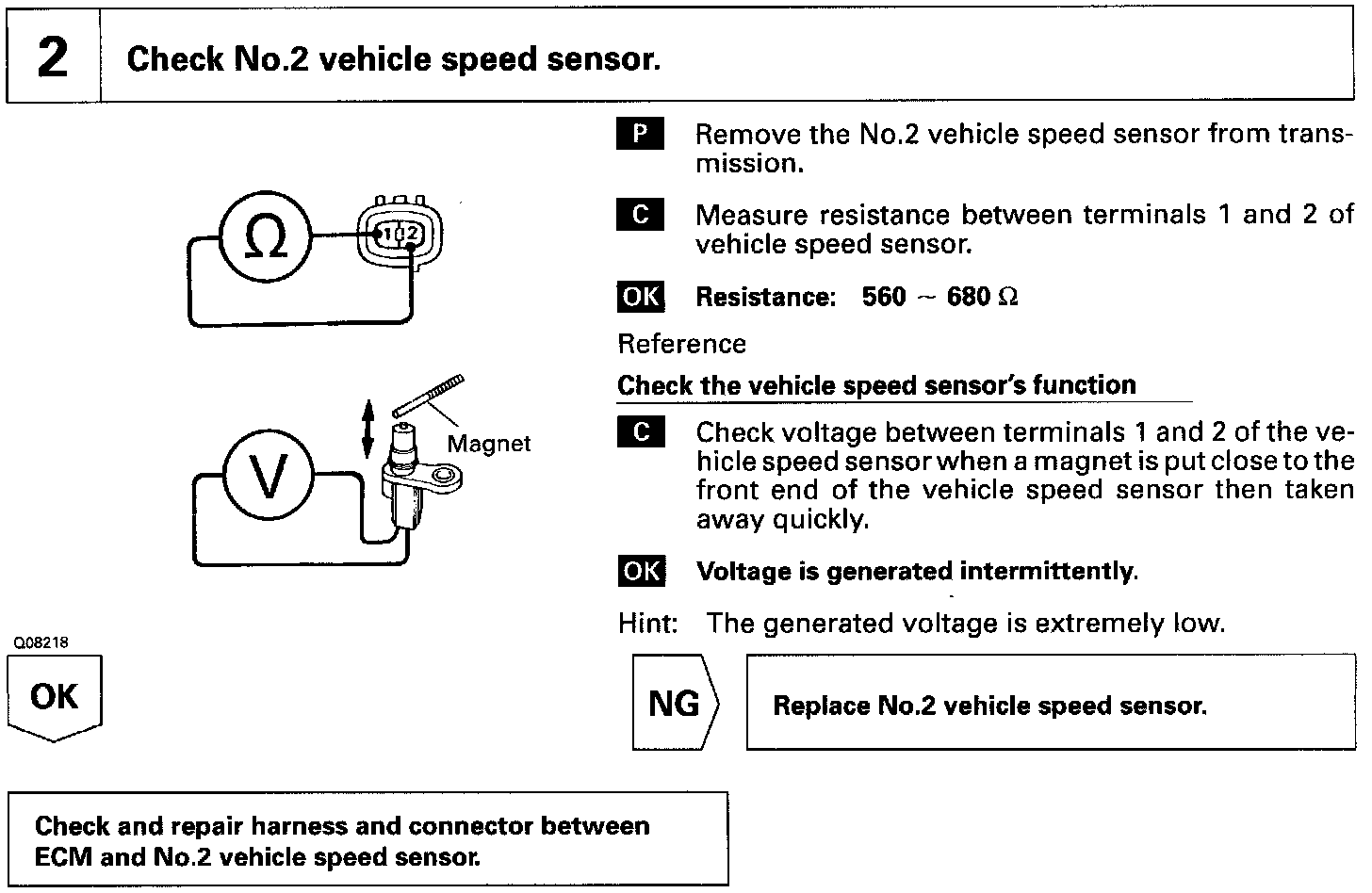

INSPECTION PROCEDURE
