P0770

CIRCUIT DESCRIPTION
The ECM uses the signals from the NCO revolution sensor and crankshaft position sensor to monitor the engagement condition of the lock-up clutch.
Then the ECM compares the engagement condition of the lock-up clutch with the lock-up schedule in the ECM memory to detect mechanical trouble of the shift solenoid valve SLU valve body and torque converter clutch.





DETECTING CONDITION

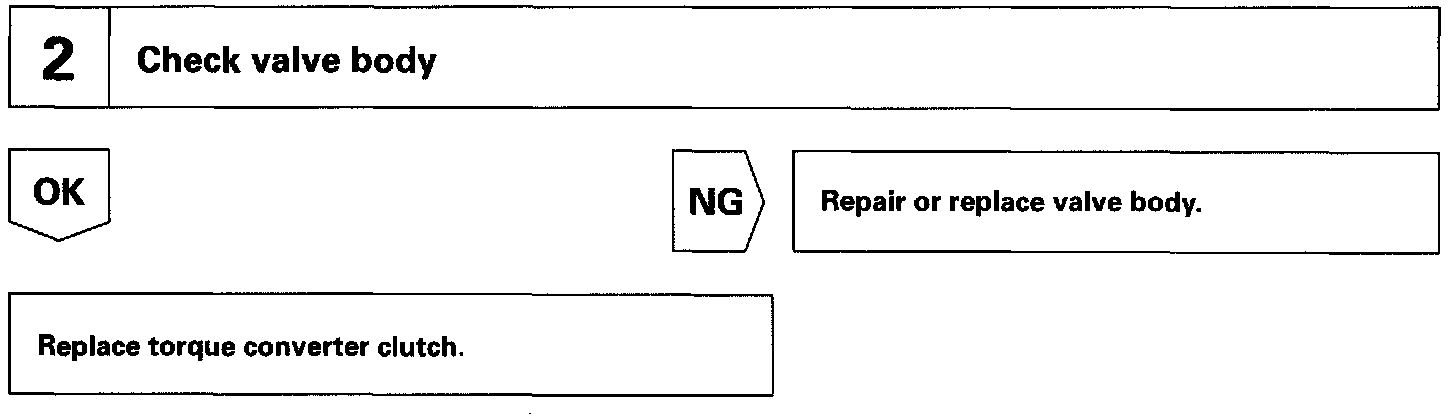

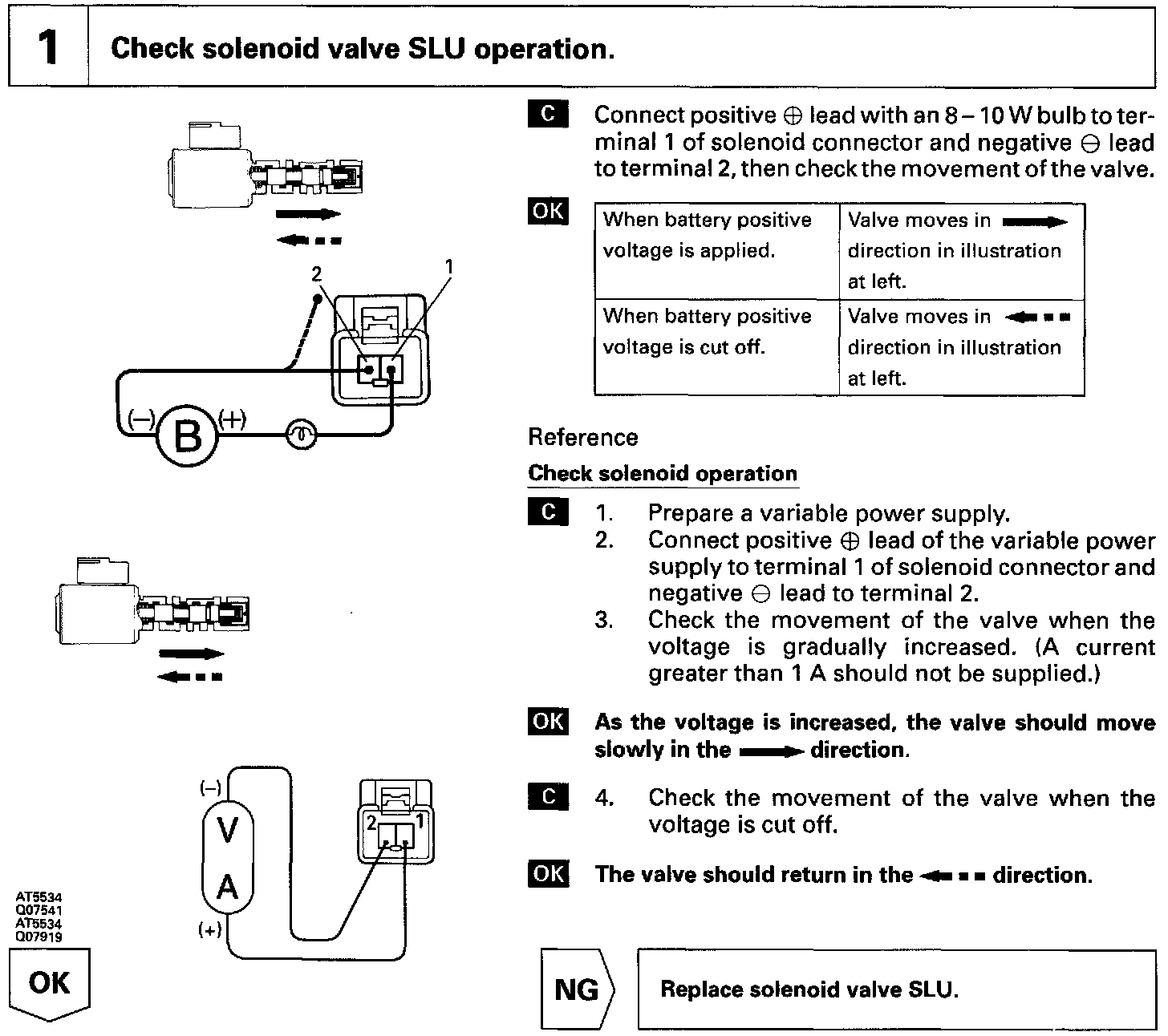

INSPECTION PROCEDURE
