P0715

CIRCUIT DESCRIPTION

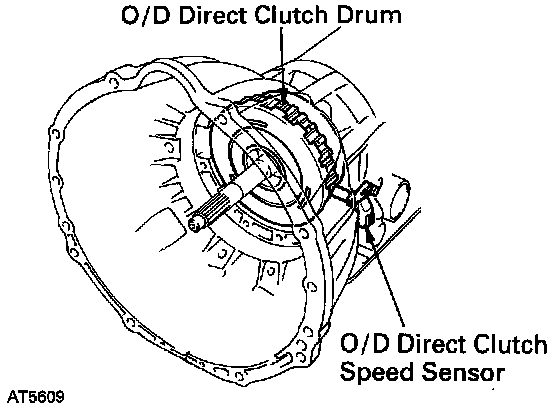

This sensor detects the rotation speed of the O/D input shaft from the rotation of the O/D direct clutch drum.
Its construction is the same as that of the No.2 vehicle speed sensor.
By comparing the O/D direct clutch speed signal and the vehicle speed sensor signal, the ECM detects the shift timing of the gears and appropriately controls the engine torque and hydraulic pressure in response to various conditions, thus performing smooth gear shift.

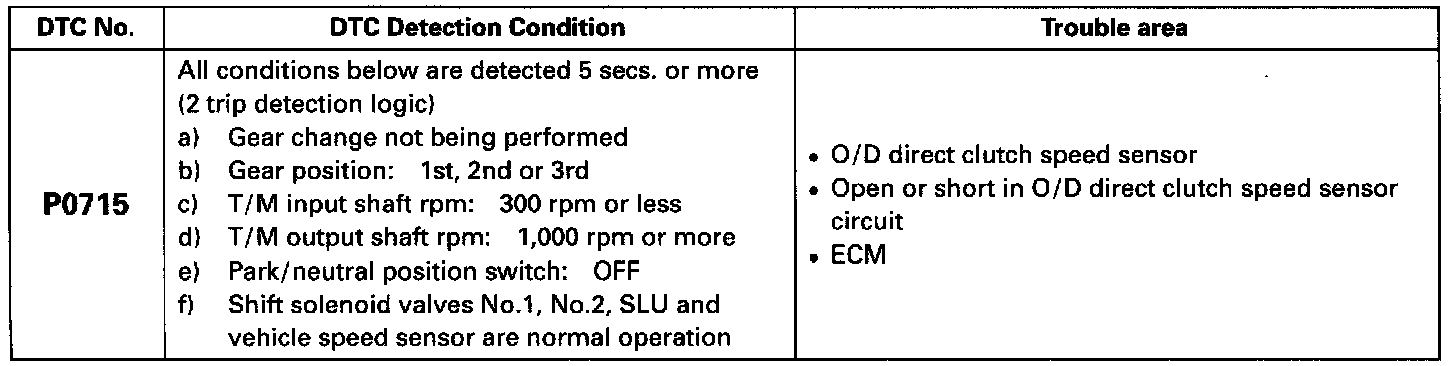

DETECTING CONDITION

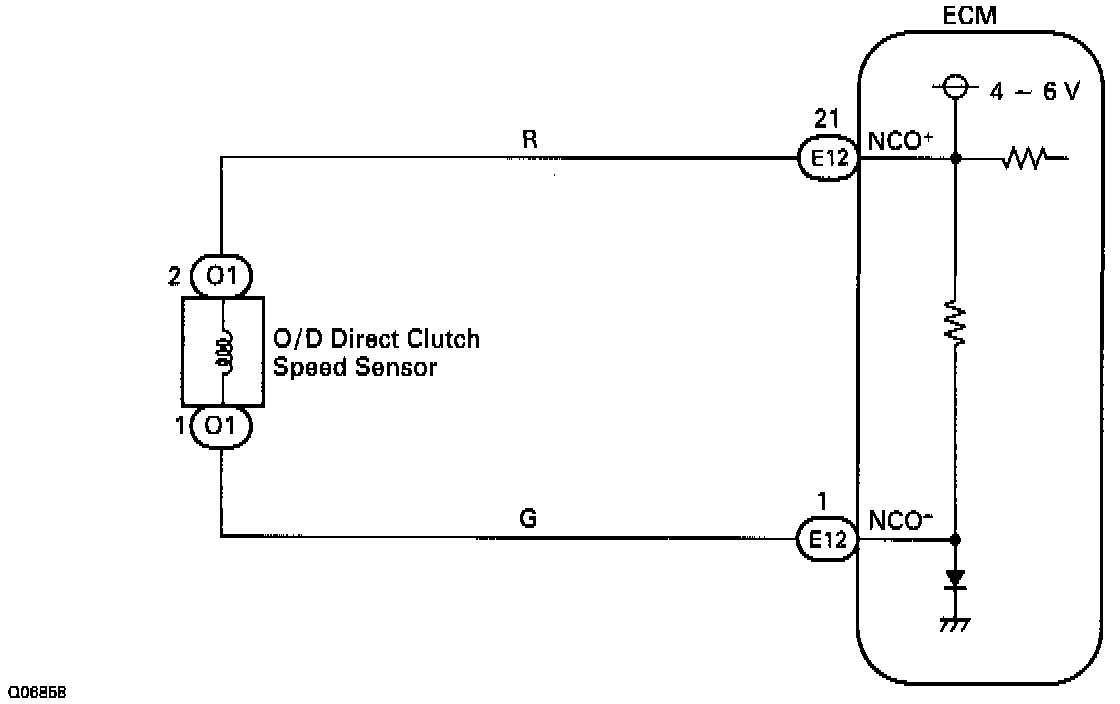

WIRING DIAGRAM

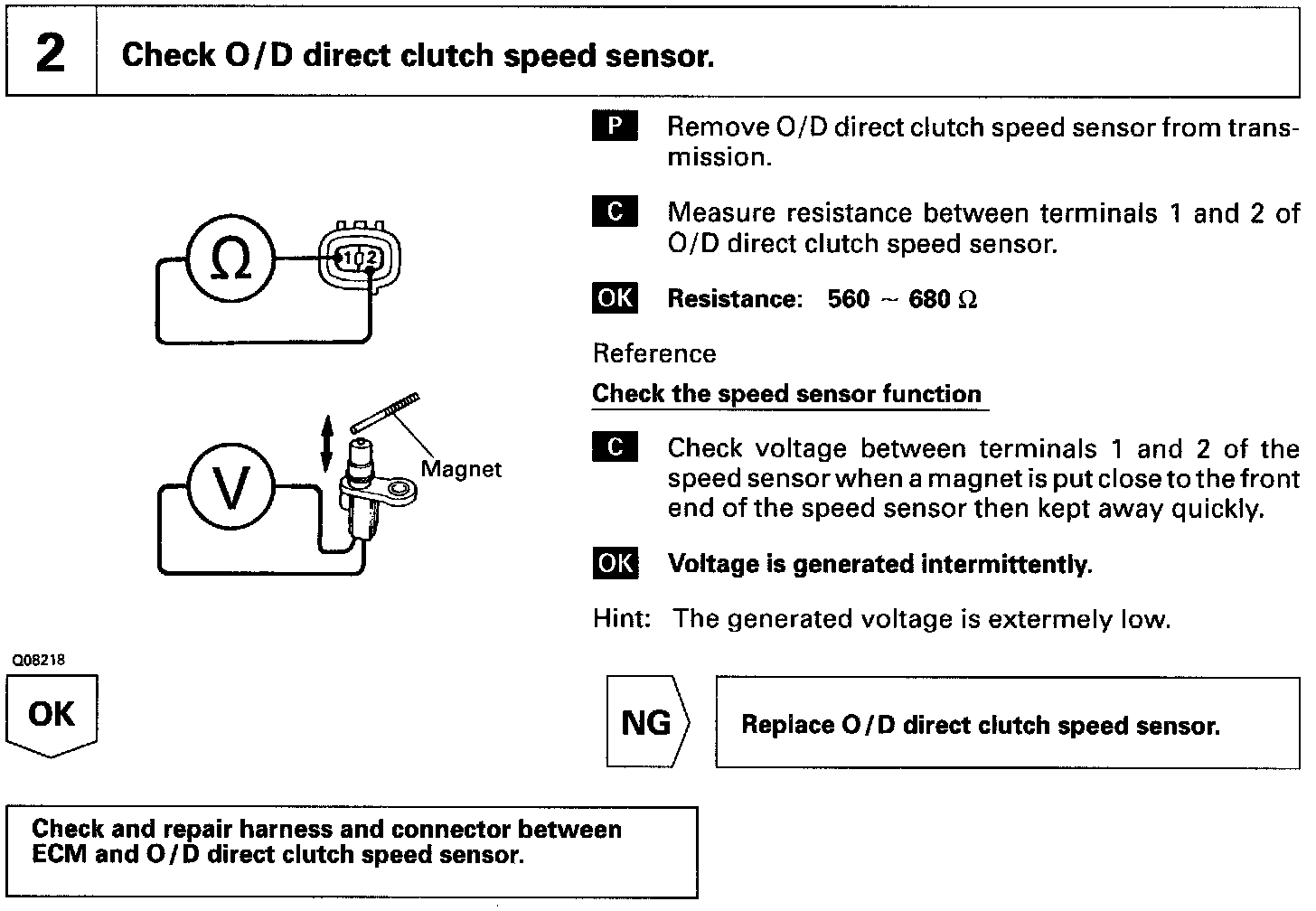

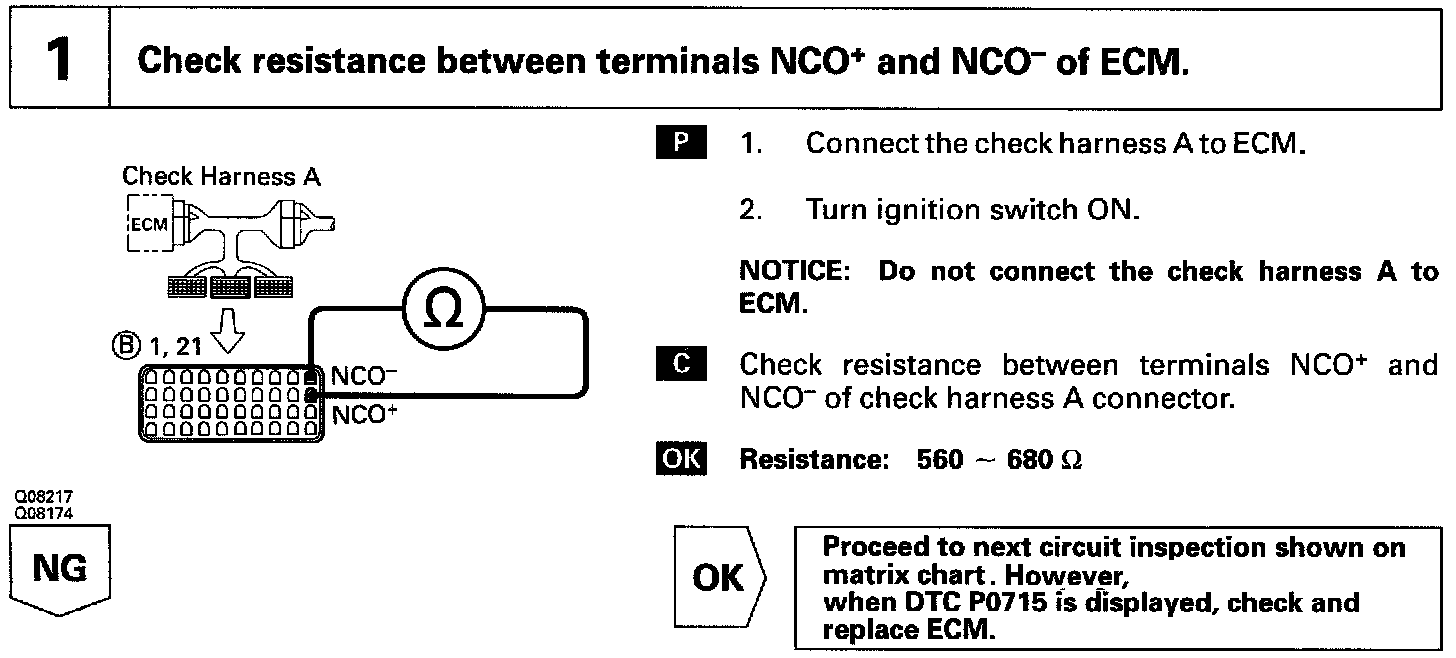

INSPECTION PROCEDURE
