Troubleshooting

CIRCUIT DESCRIPTION
The ATF temperature sensor converts fluid temperature into a resistance value which is input into the ECM.

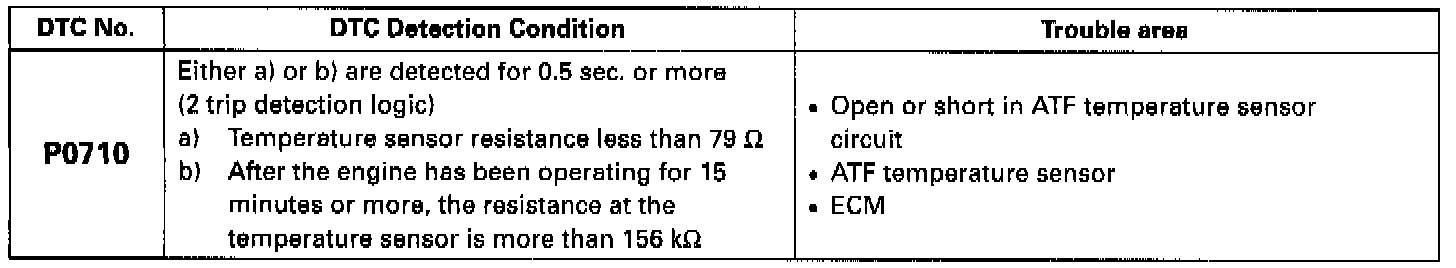

DETECTING CONDITION

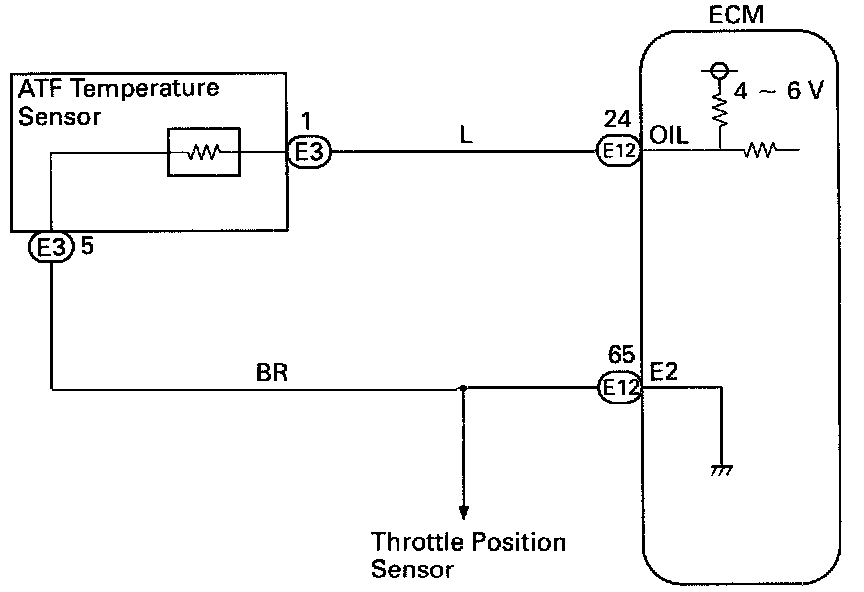

WIRING DIAGRAM

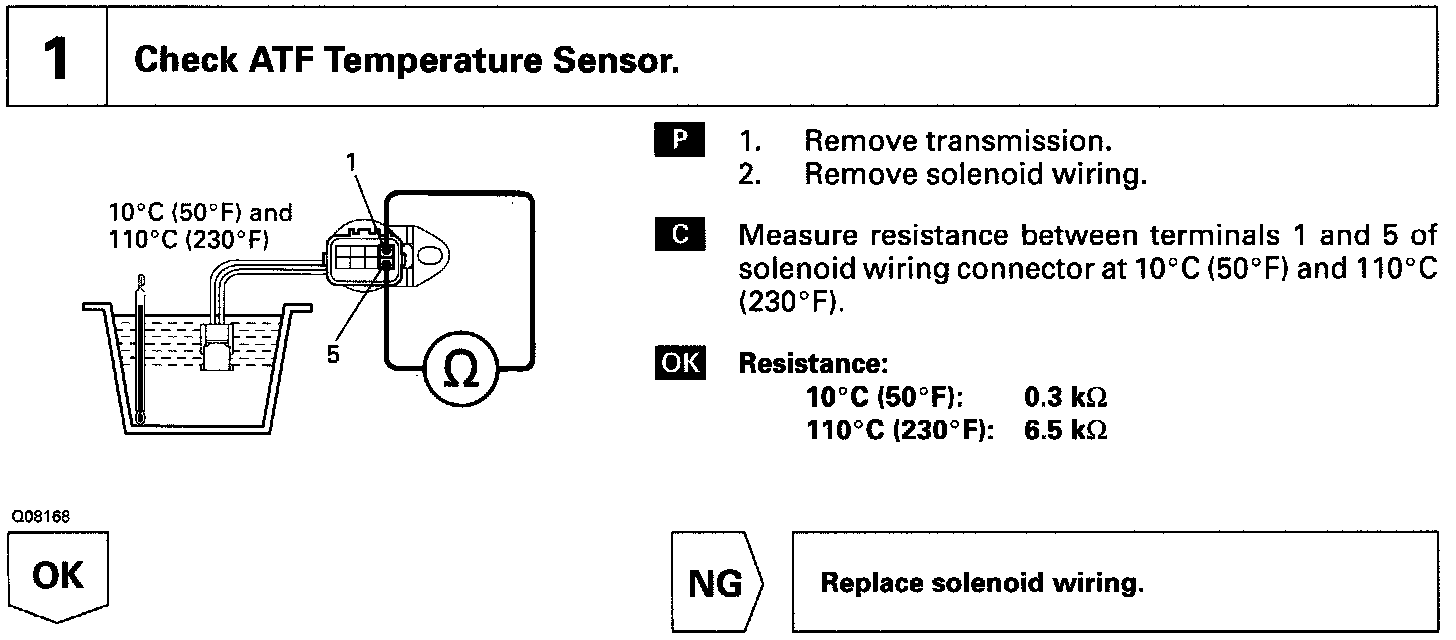

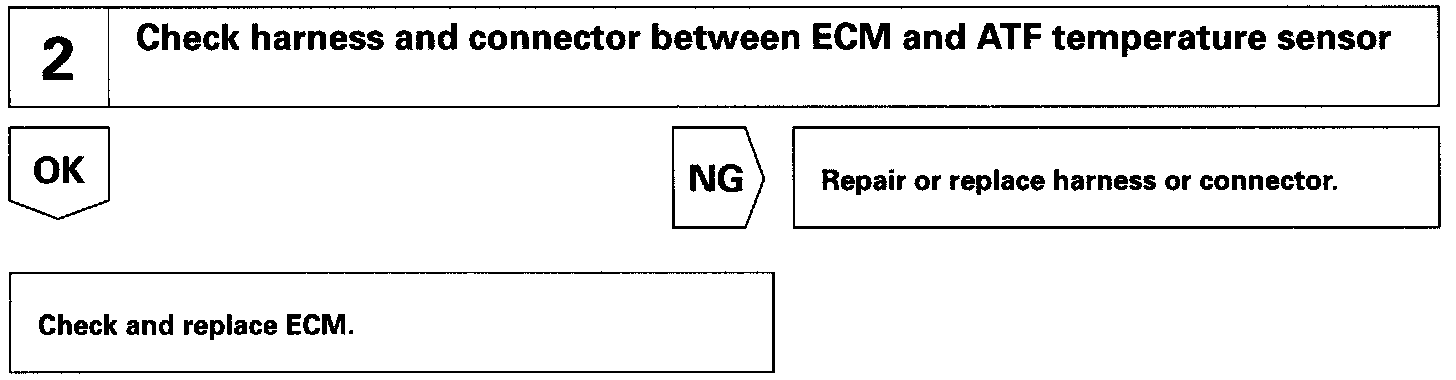

INSPECTION PROCEDURE
