P0510

CIRCUIT DESCRIPTION
Refer to Throttle/Pedal Position Sensor/Switch "A" Circuit Malfunction.

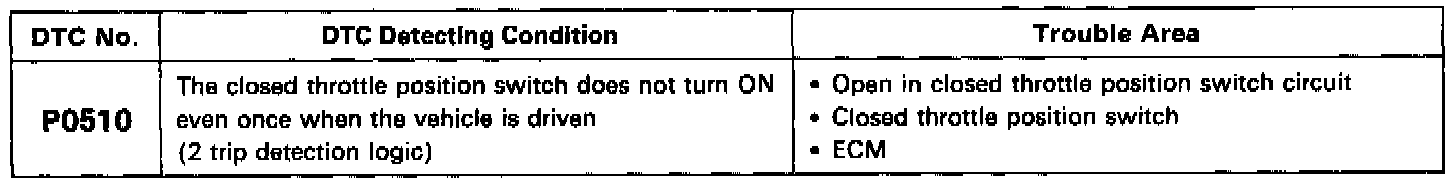

DETECTING CONDITION

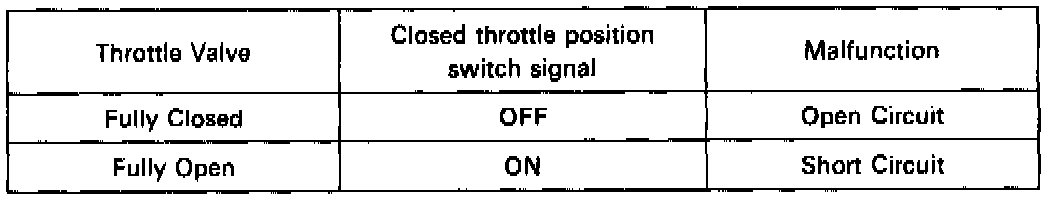

HINT: After confirming DTC P0510 use the LEXUS hand-held tester to confirm the closed throttle position switch signal from "CURRENT DATA".

WIRING DIAGRAM
Refer to Throttle Pedal/Position Sensor/Switch "A" Circuit Malfunction.

INSPECTION PROCEDURE
HINT: If DTCs P0110, P0115 and P0120 are output simultaneously, E2 (sensor ground) may be open.

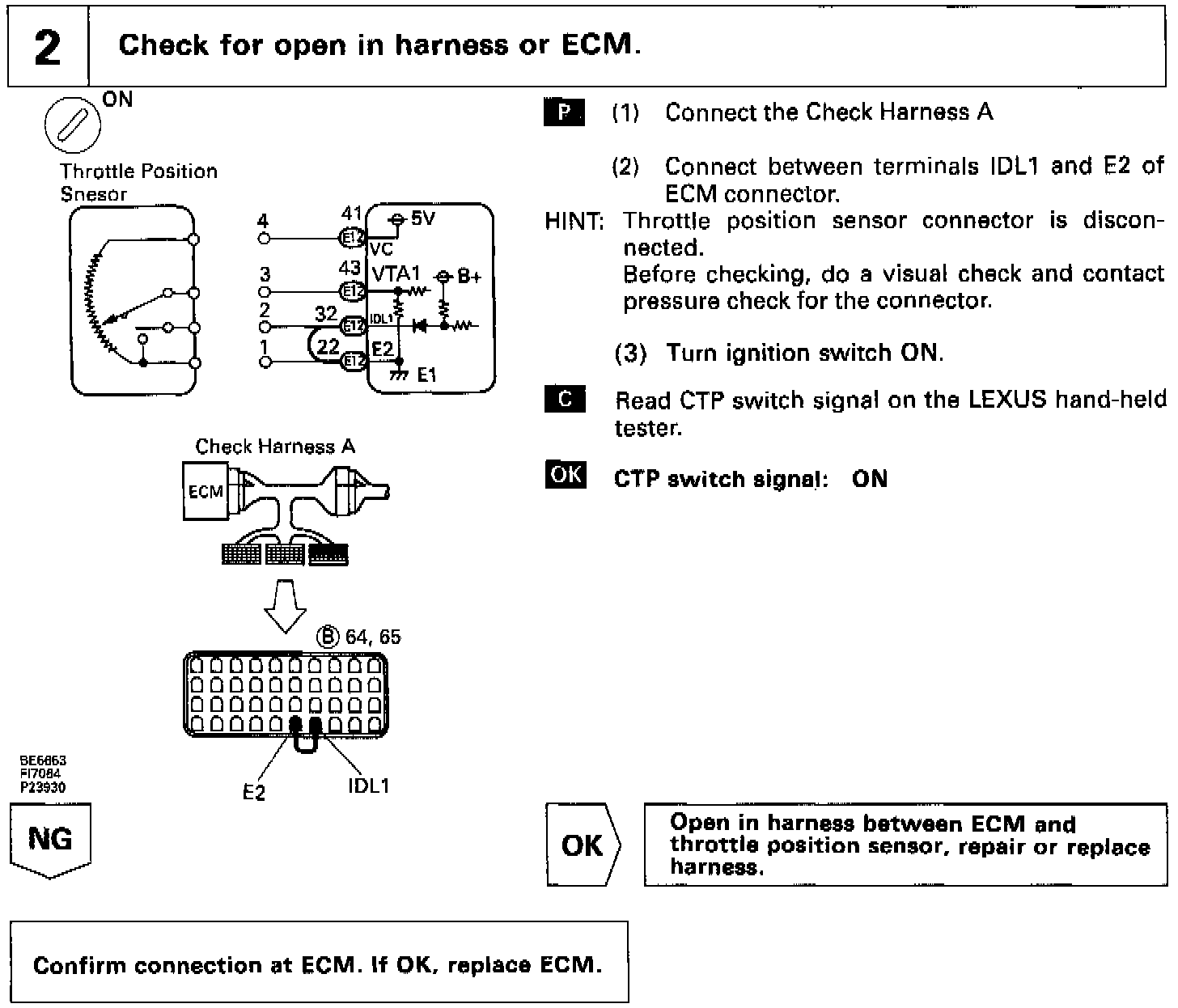

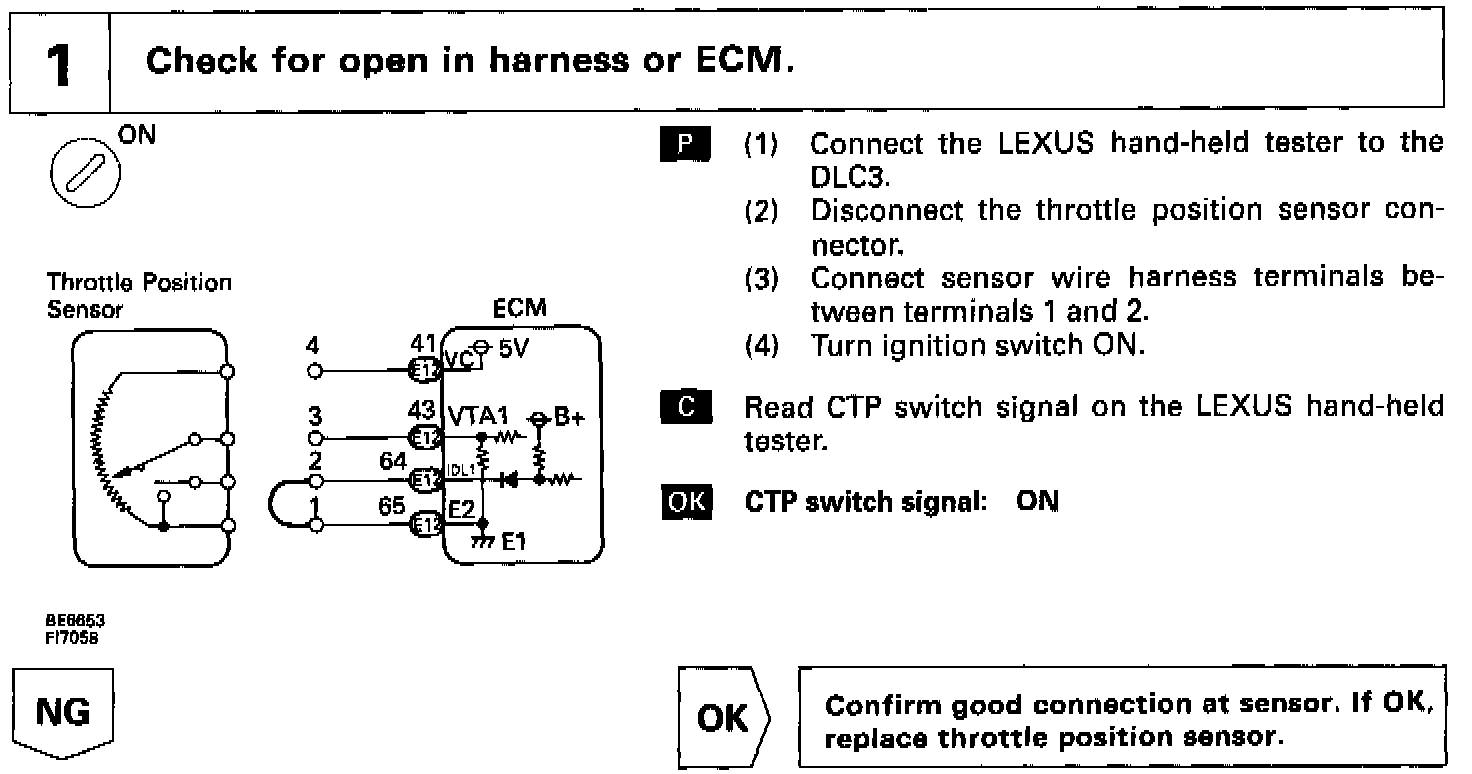

LEXUS hand-held tester

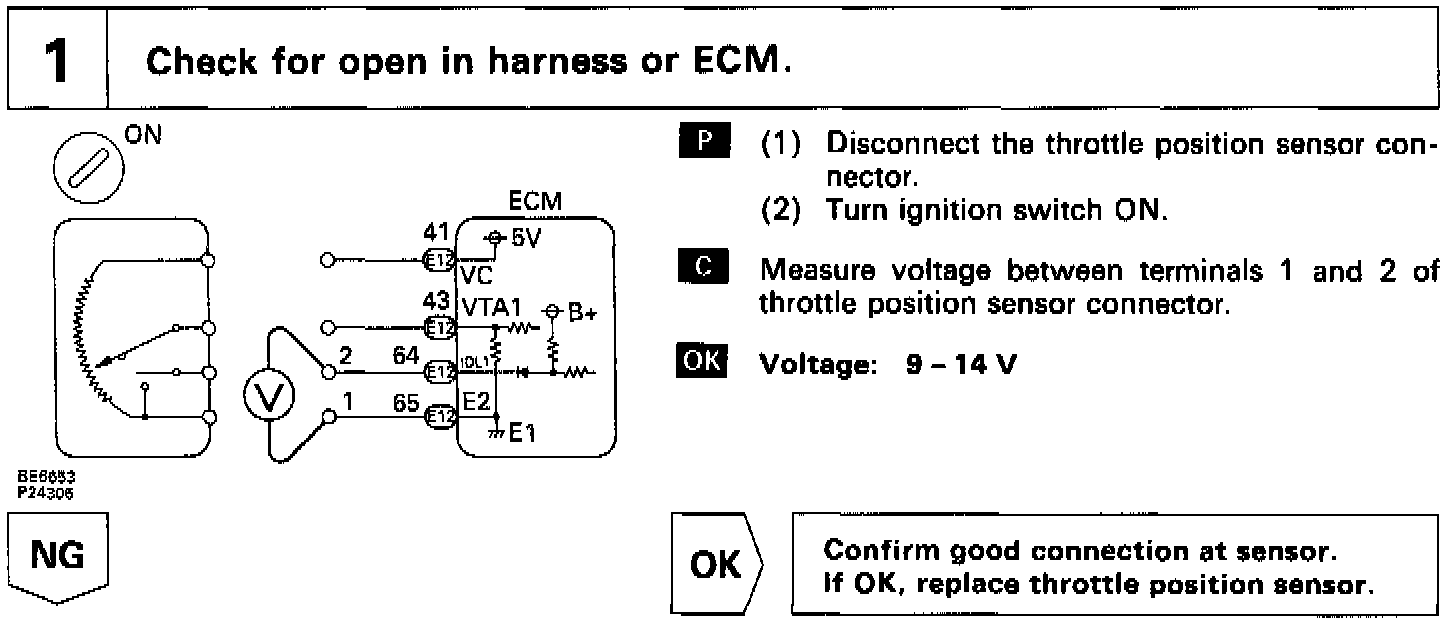

OBDII scan tool (excluding LEXUS hand-held tester)
