P0441

CIRCUIT DESCRIPTION
To reduce HC emissions, evaporated fuel from the fuel tank is routed through the charcoal canister to the intake manifold for combustion in the cylinders.
The ECM changes the duty signal to the VSV for EVAP so that the intake quantity of HC emissions is appropriate for the driving conditions (engine load, engine speed, etc.) after the engine is warmed up.

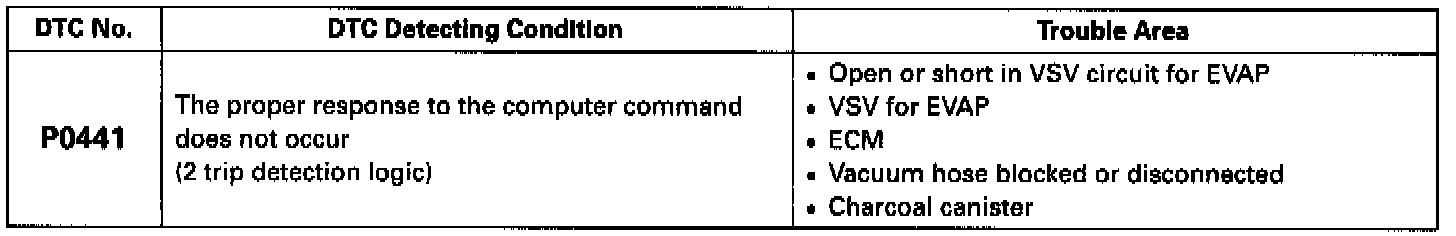

DETECTING CONDITION





WIRING DIAGRAM

INSPECTION PROCEDURE

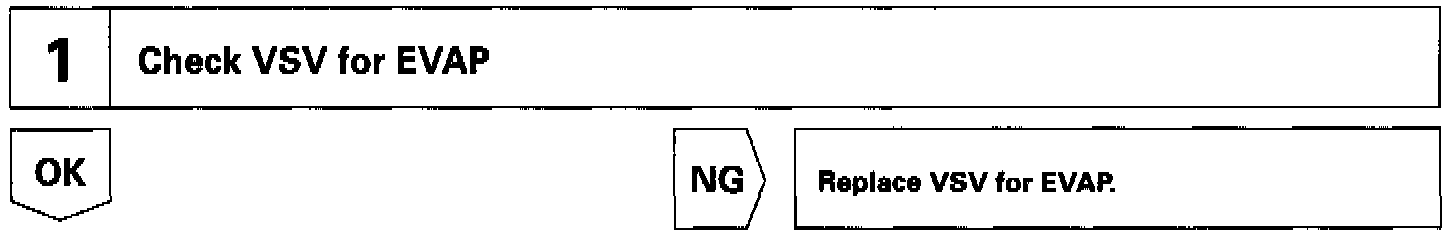

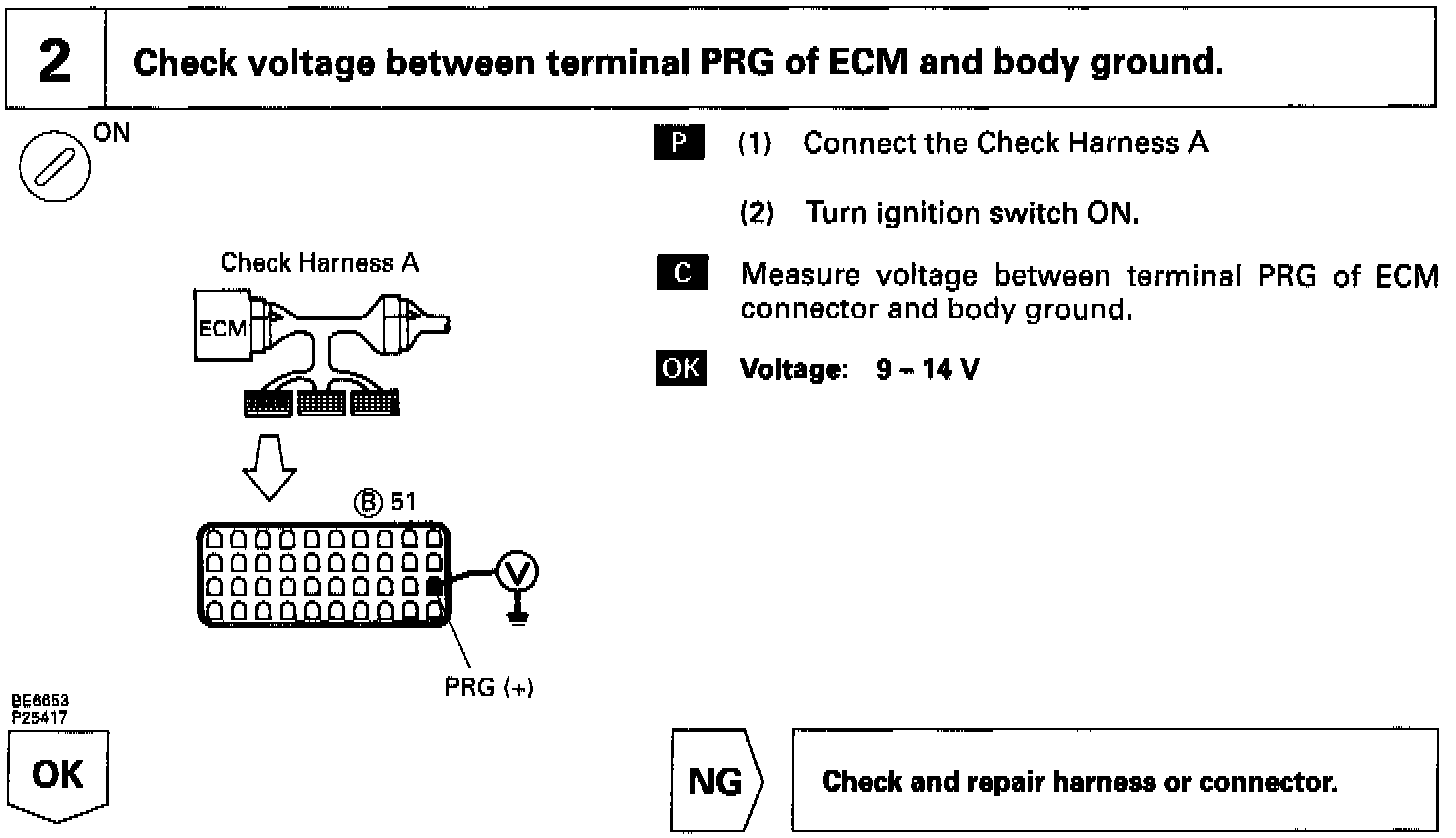

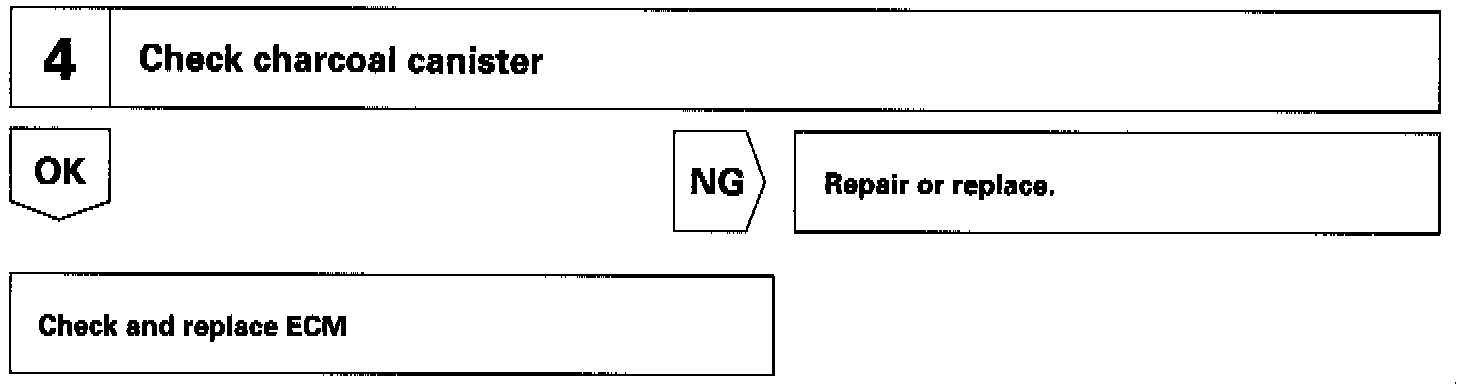

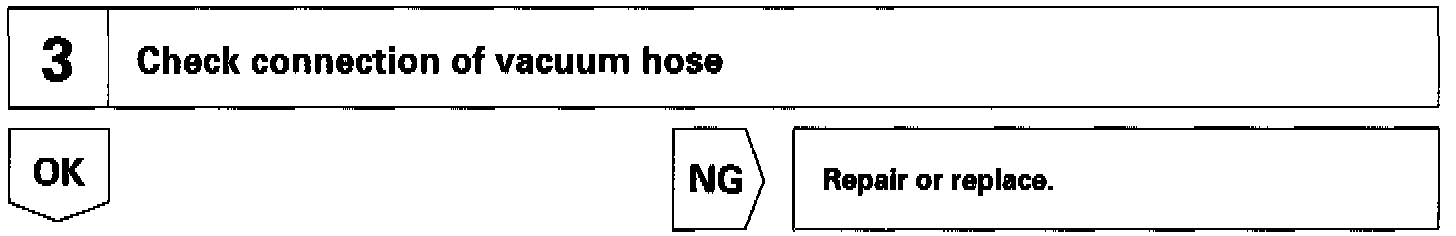

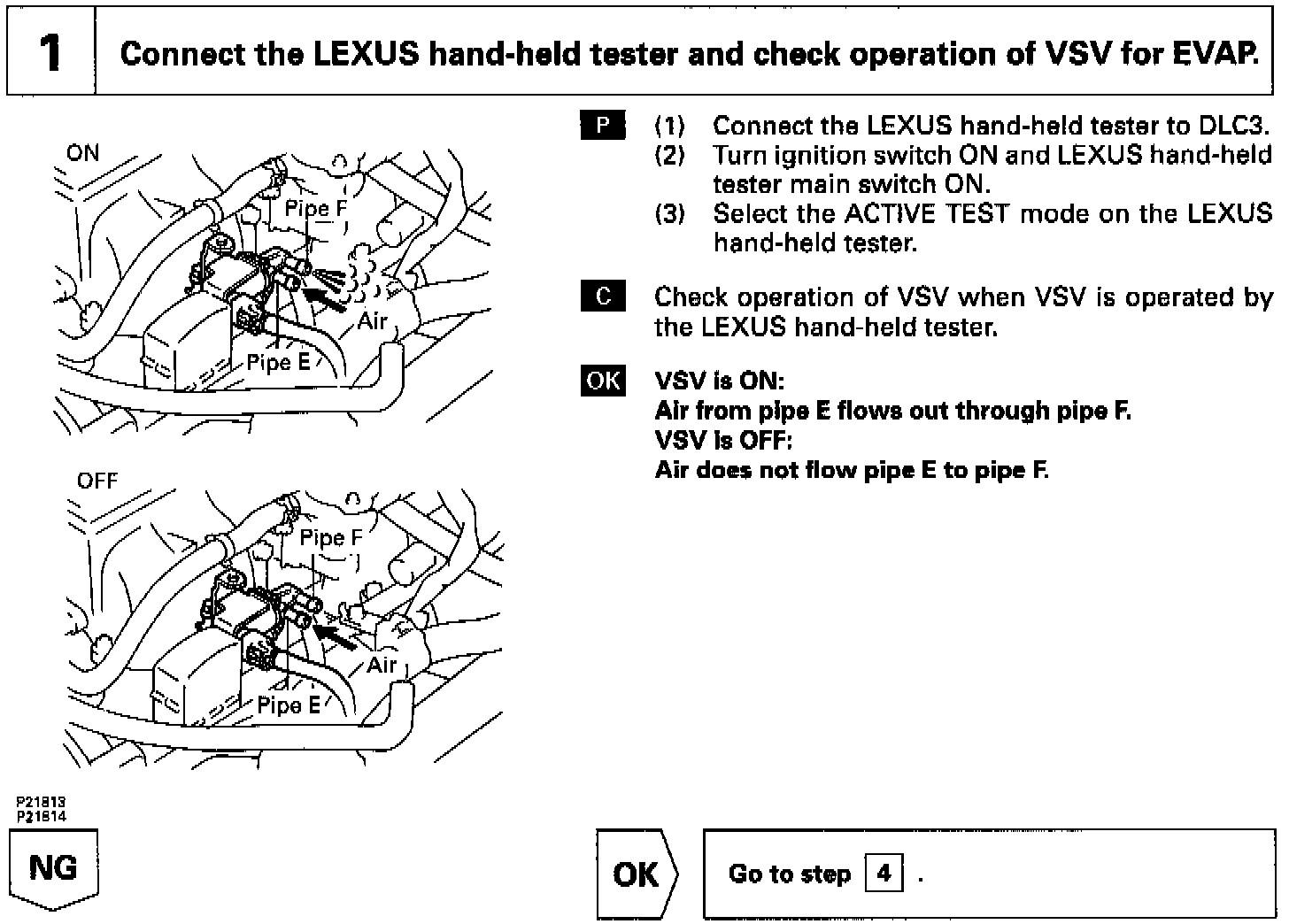

LEXUS hand-held tester

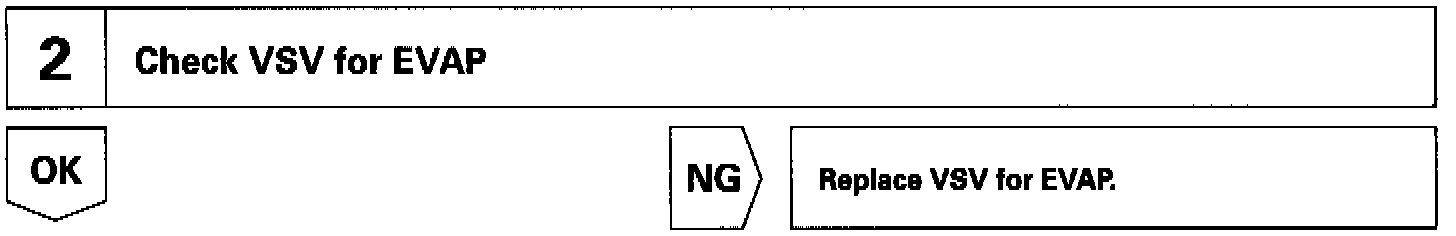

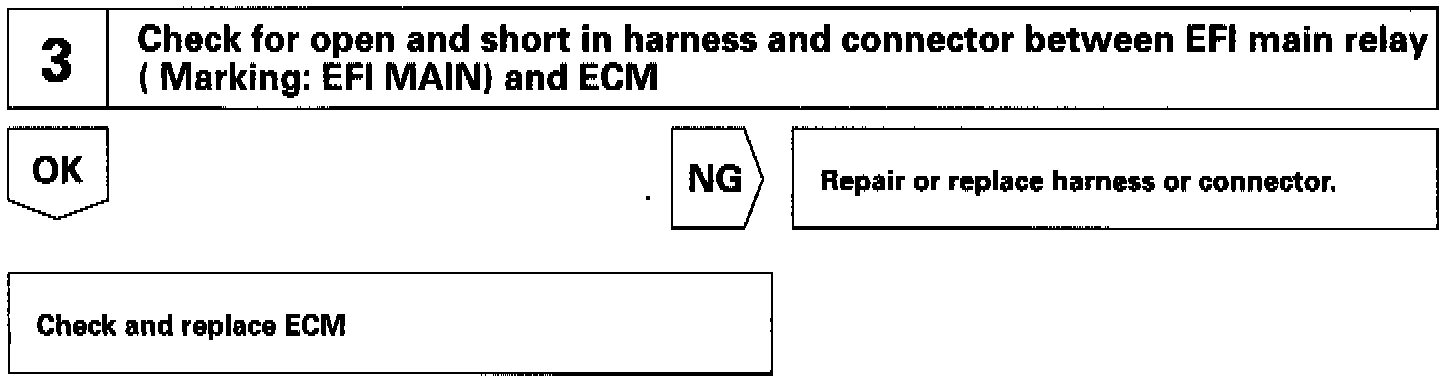

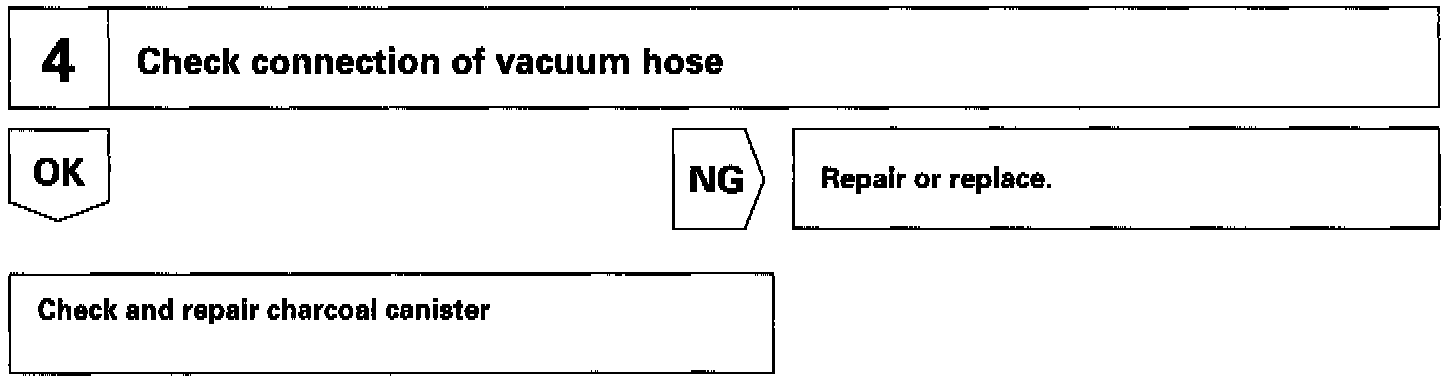

OBDII scan tool (excluding LEXUS hand-held tester)
