P0402

CIRCUIT DESCRIPTION
Refer to Exhaust Gas Recirculation Flow Insufficient Detected. See DTC P0401 for System Check Driving Pattern and Wiring Diagram.

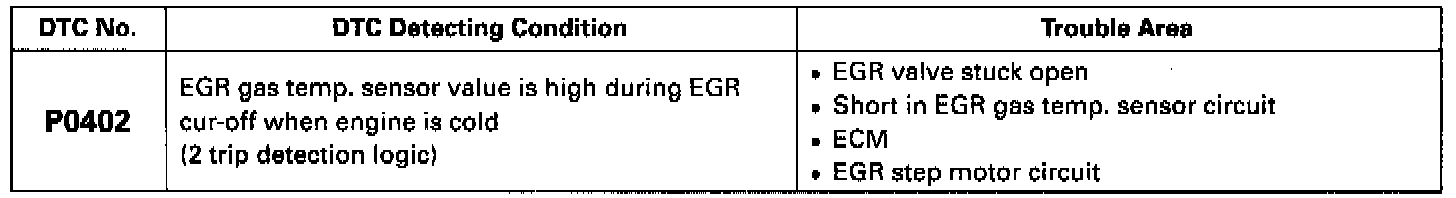

DETECTING CONDITION

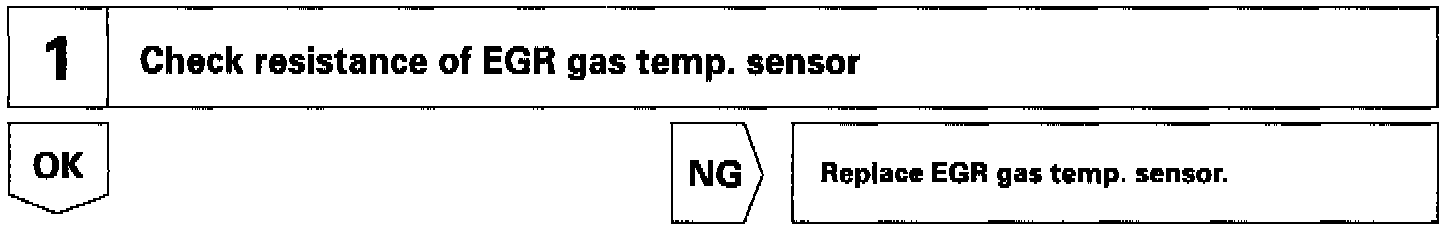

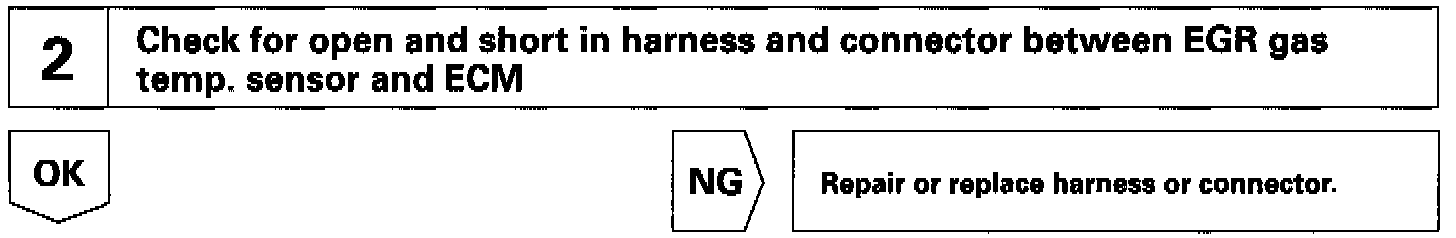

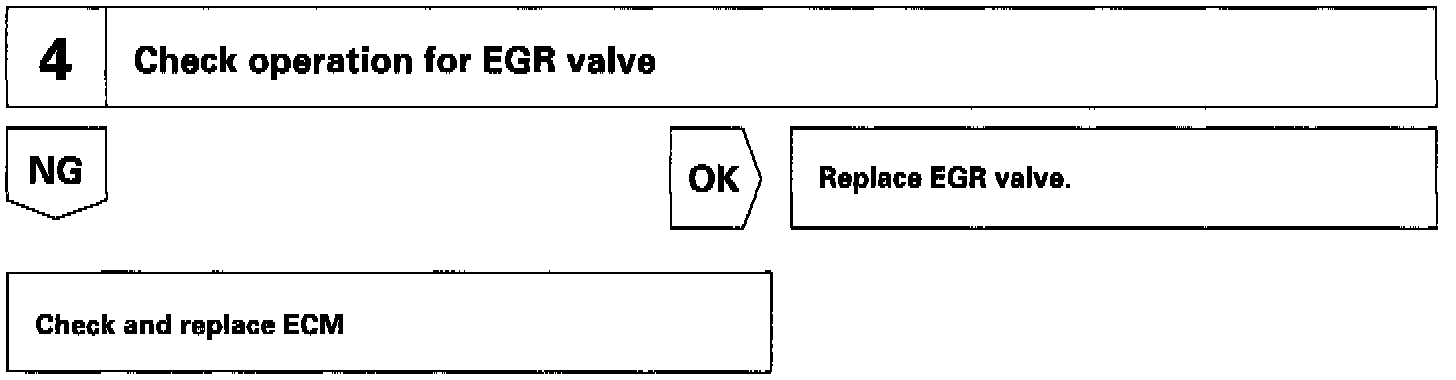

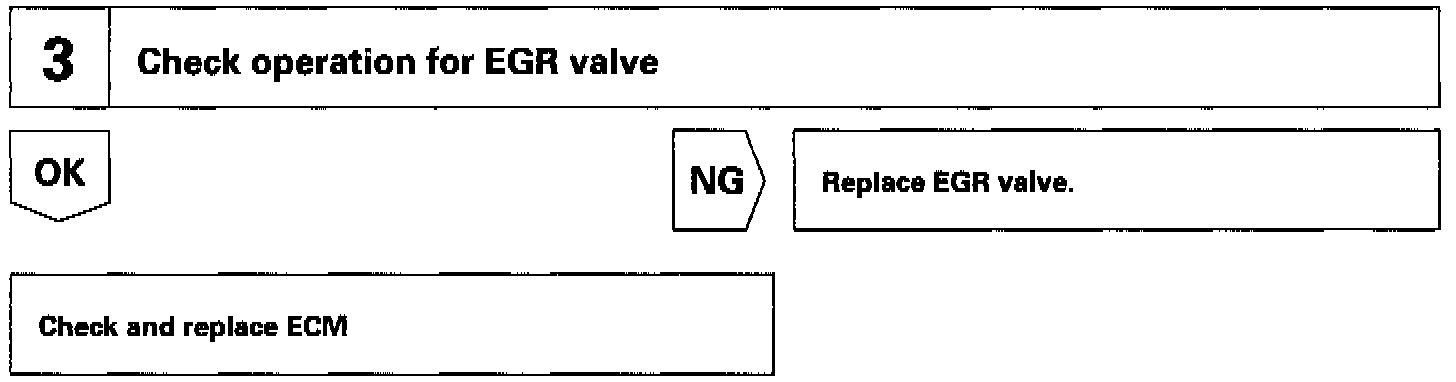

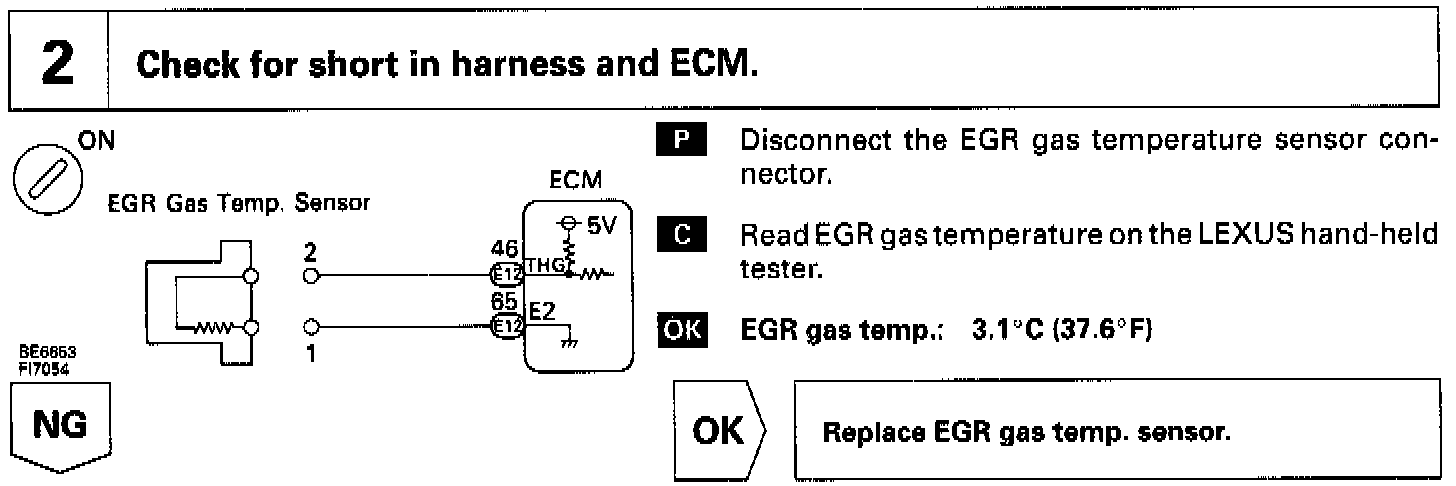

INSPECTION PROCEDURE
LEXUS hand held tester












OBDII scan tool (excluding LEXUS hand-held tester)
