Troubleshooting

CIRCUIT DESCRIPTION
"Fuel trim" refers to the feedback compensation value compared against the basic inflection time. Fuel trim includes short-term fuel trim and long-term fuel trim.
"Short-term fuel trim" is the short-term fuel compensation used to maintain the air-fuel ratio at its ideal theoretical value. The signal from the heated oxygen sensor indicates whether the air-fuel ratio is RICH or LEAN compared to the ideal theoretical value, triggering a reduction in fuel volume if the air-fuel ratio is rich, and an increase in fuel volume if it is lean.
"Long-term fuel trim" is overall fuel compensation carried out long-term to compensate for continual deviation of the short-term fuel trim from the central value due to individual engine differences, wear overtime and changes in the usage environment.
If both the short-term fuel trim and long-term fuel trim are LEAN or RICH beyond a certain value, it is detected as a malfunction and the MIL lights up.





DETECTING CONDITION

HINT:

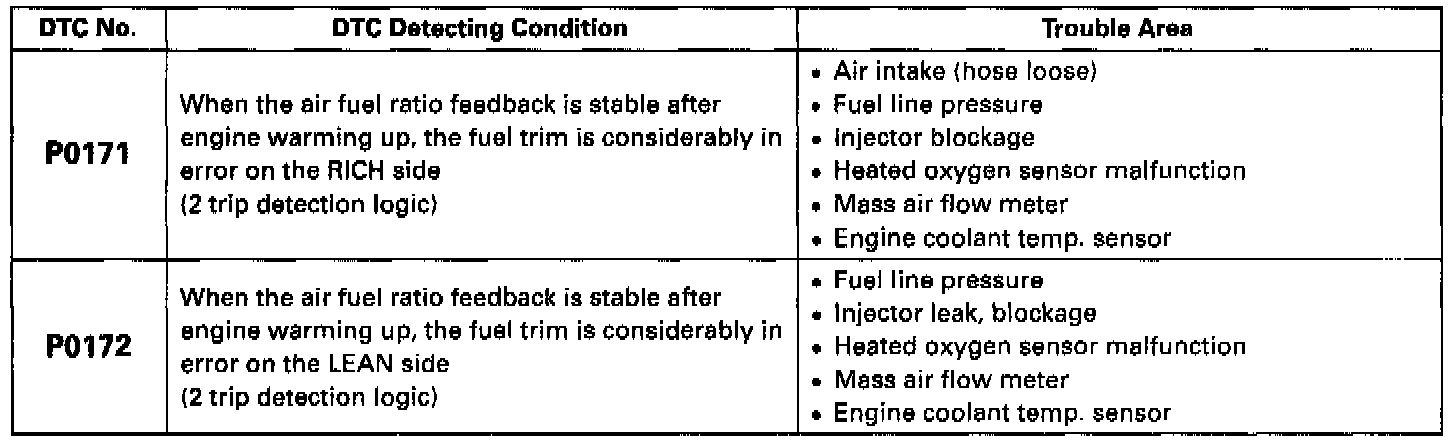

- When DTC P0171 is recorded, the actual air-fuel ratio is on the LEAN side.
- When DTC P0172 is recorded, the actual air-fuel ratio is on the RICH side.
- If the vehicle runs out of fuel,the air-fuel ratio is LEAN and DTC P0171 is detected. The MIL then comes on.
- If the total of the short-tern fuel trim value and long-term fuel trim value is within ± 25 %, the system is functioning normally.

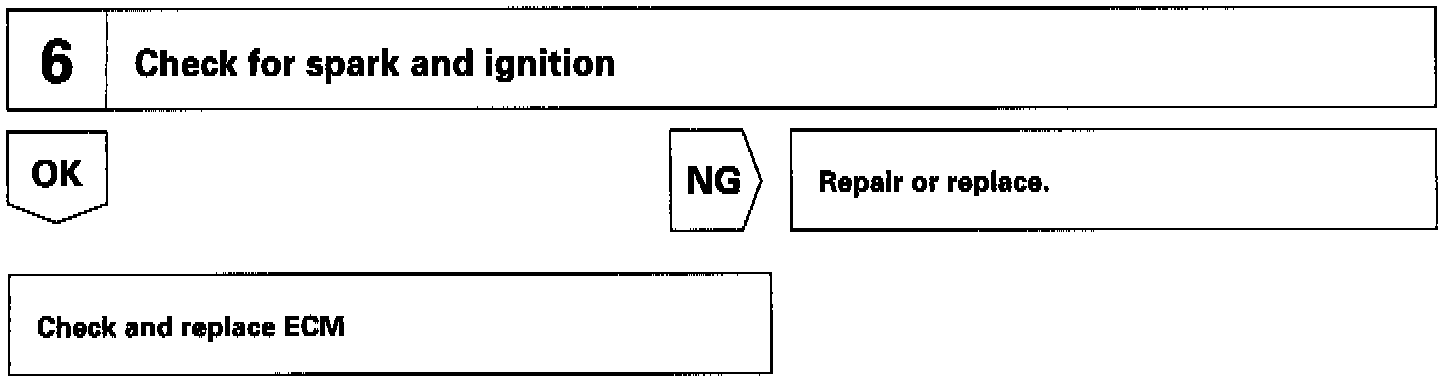

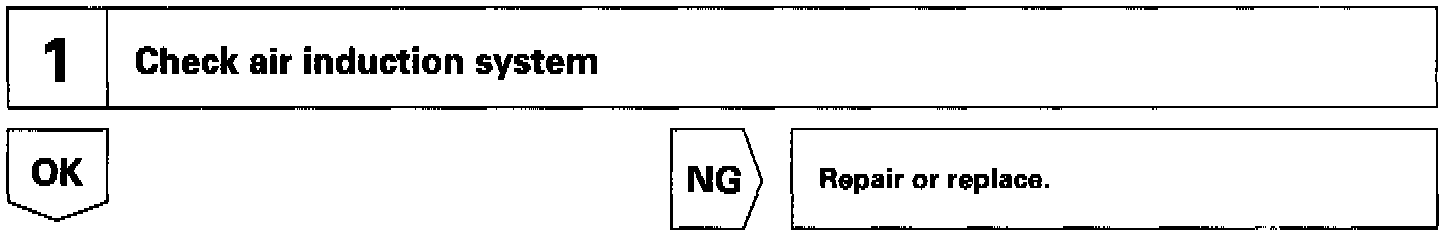

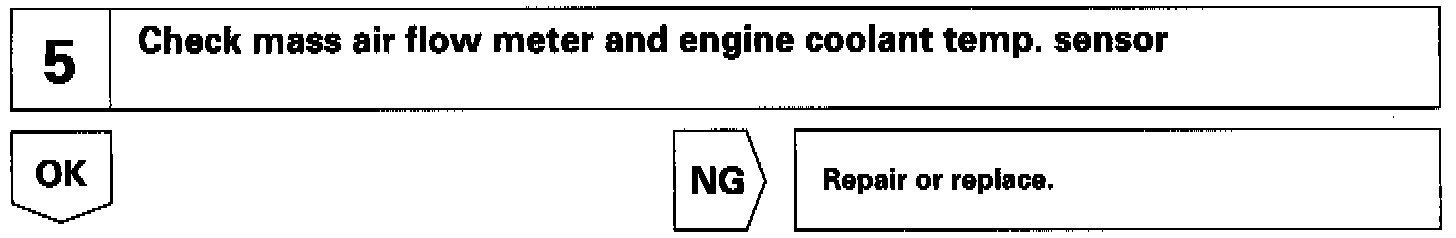

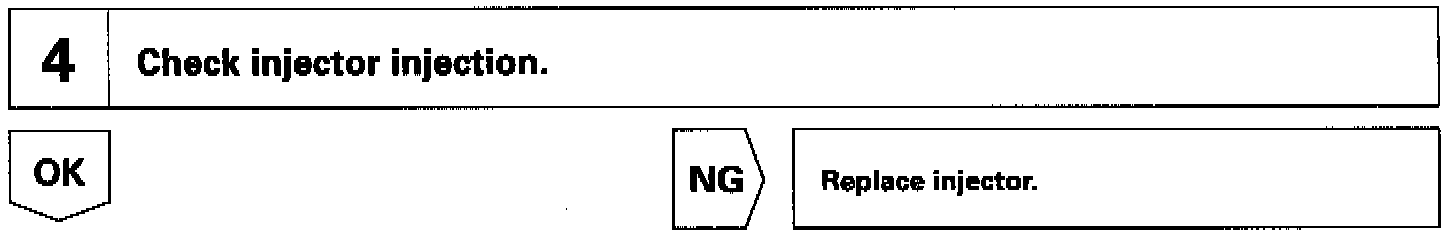

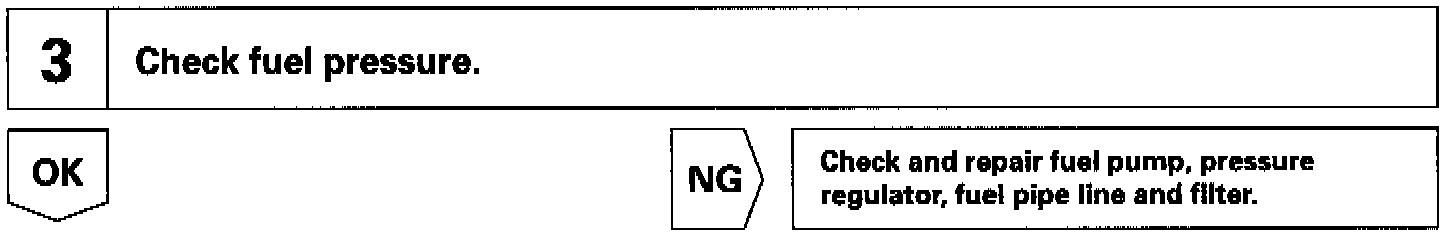

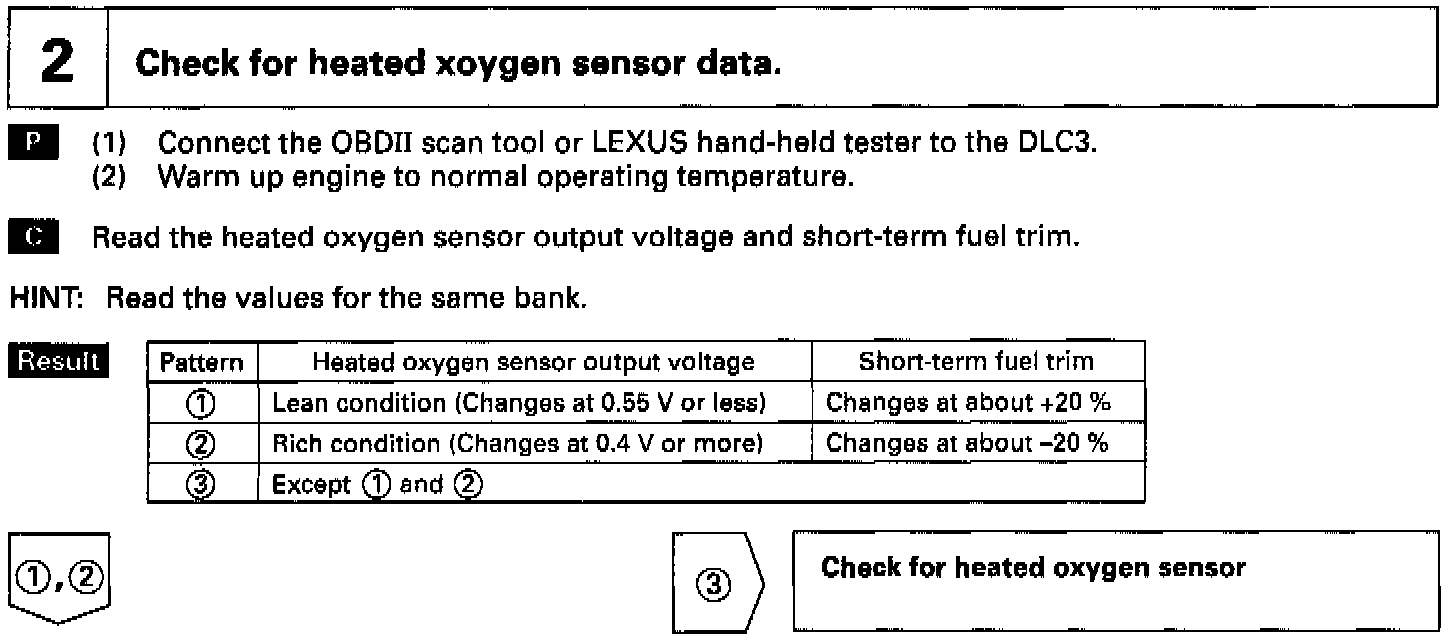

INSPECTION PROCEDURE
