Troubleshooting

CIRCUIT DESCRIPTION
Refer to "Insufficient coolant temp. for closed loop fuel control".

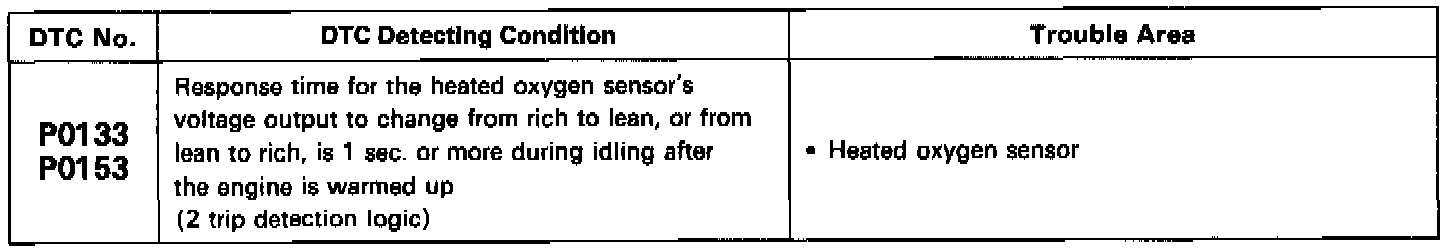

DETECTING CONDITION
HINT:
- Bank 1 refers to the bank that includes cylinder No.1.
- Bank 2 refers to the bank that does not include cylinder No.1.
- Sensor 1 refers to the sensor closer to the engine body.

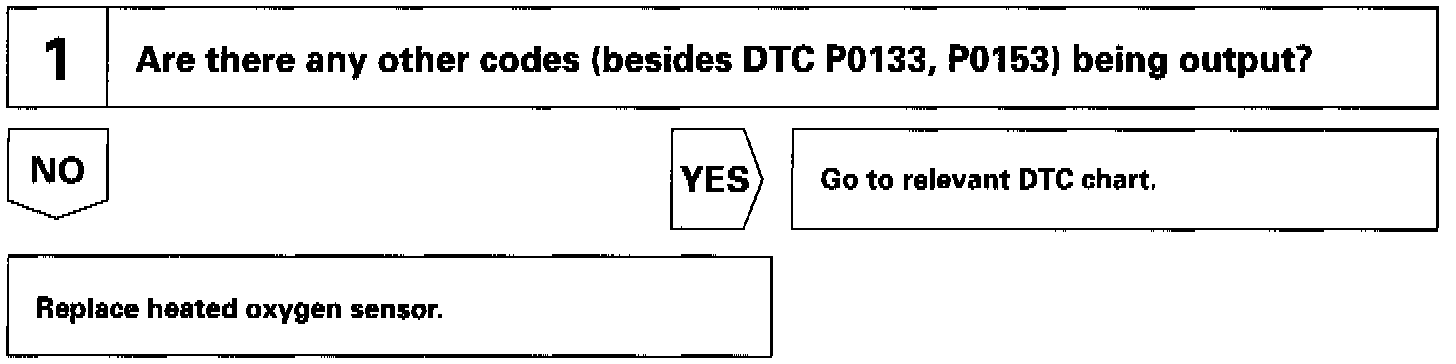

INSPECTION PROCEDURE
