Home >> Lexus >> 1996 >> SC 400 V8-4.0L (1UZ-FE) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> P Code Charts >> P0121 >> Troubleshooting

Troubleshooting

CIRCUIT DESCRIPTION
Refer to Throttle/Pedal Position Sensor/Switch "A" Circuit Malfunction.

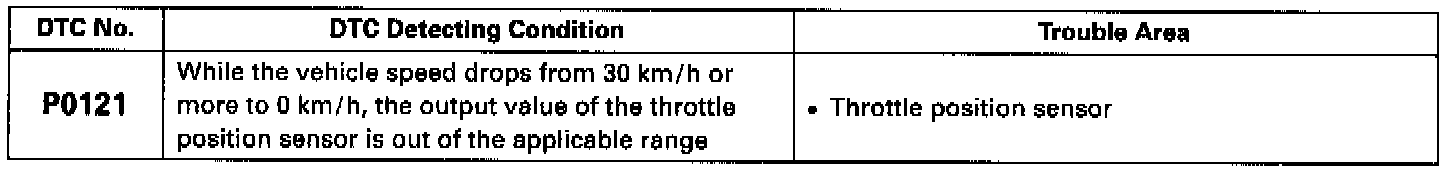

DETECTING CONDITION

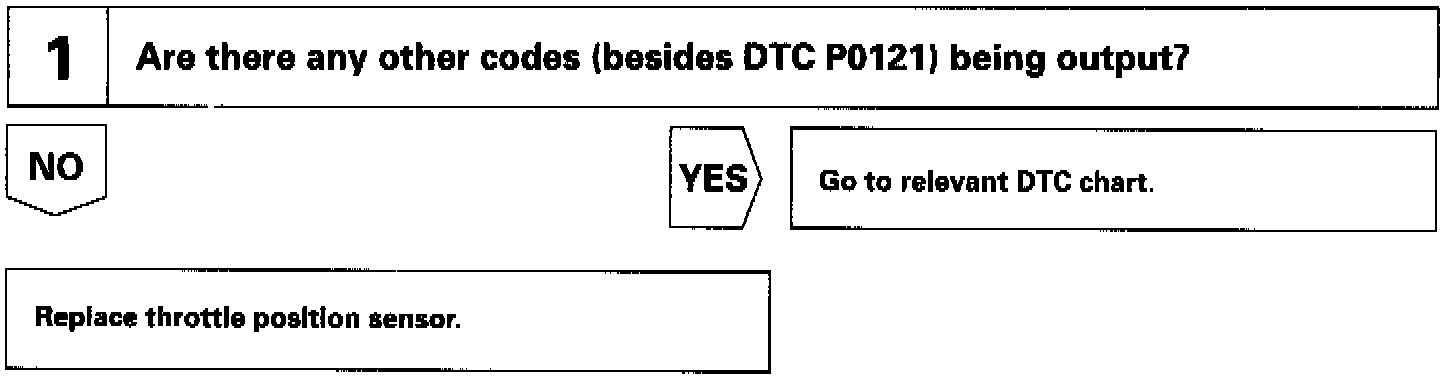

INSPECTION PROCEDURE
