Home >> Lexus >> 1996 >> SC 400 V8-4.0L (1UZ-FE) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> P Code Charts >> P0121 >> Monitor Description

Monitor Description

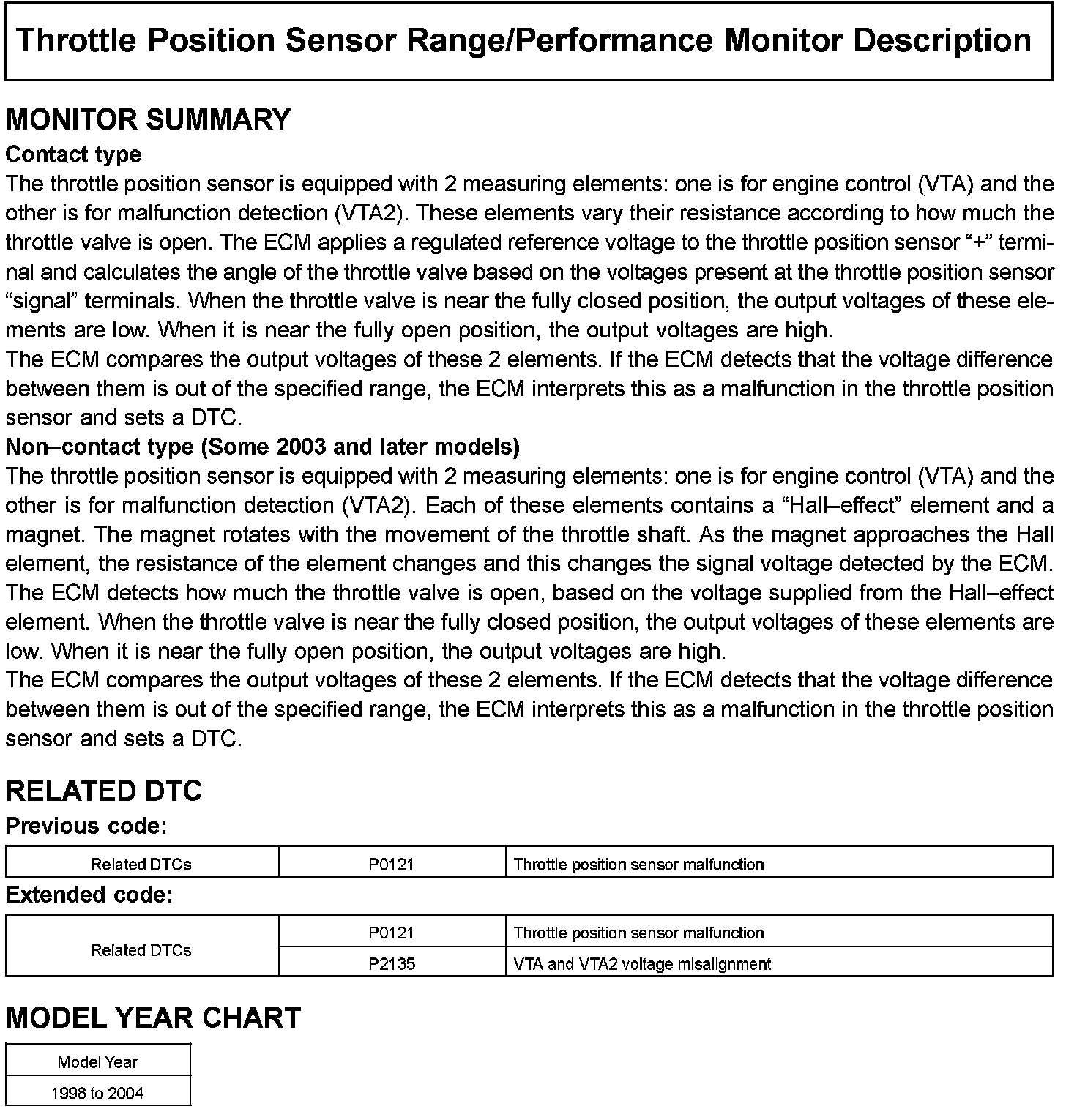

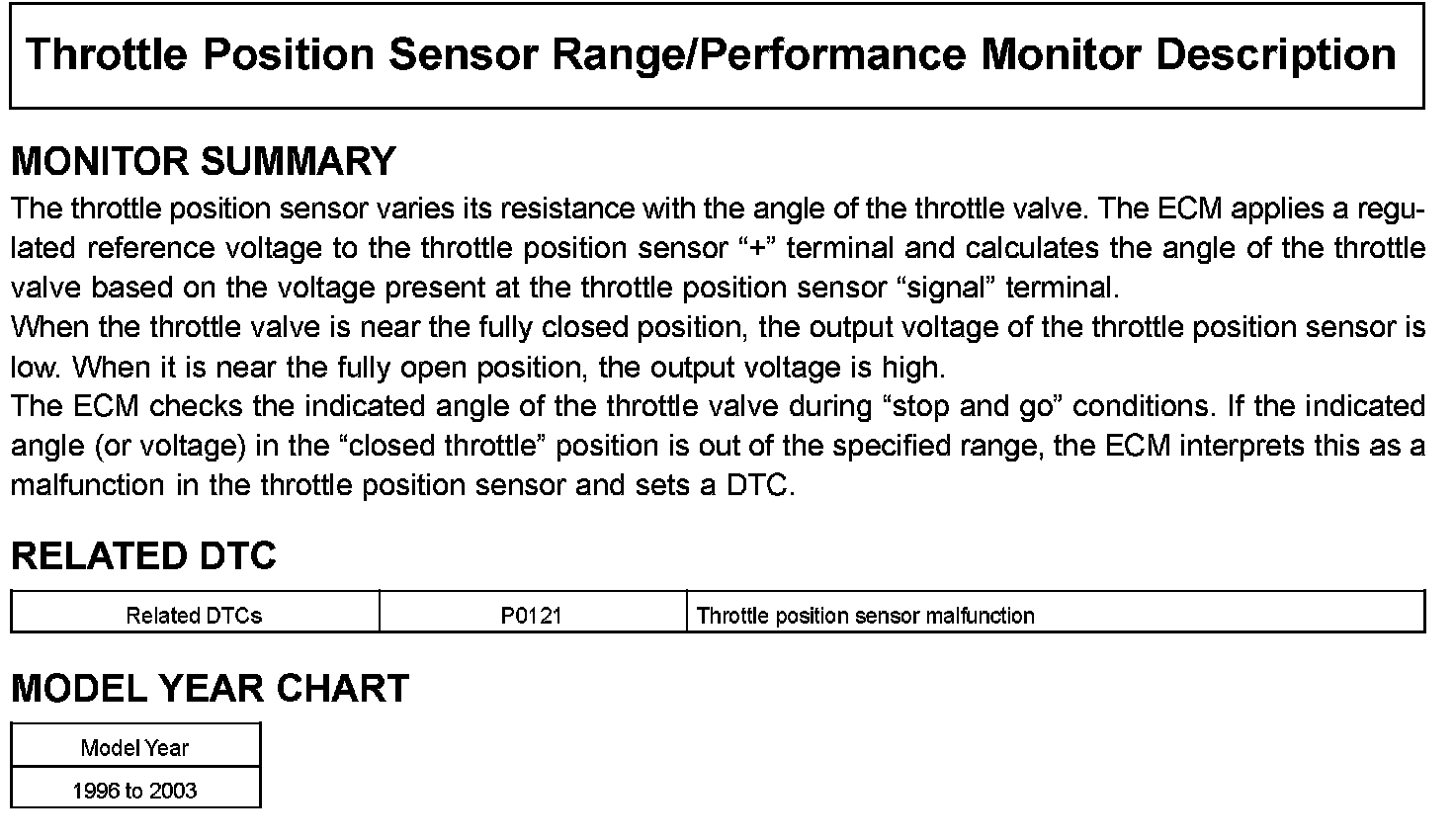

Throttle Position Sensor Range/Performance Monitor Description






Throttle Position Sensor(2-Sensor Type)
