Air Inlet Servomotor Circuit

Circuit Description
This circuit turns the servomotor and changes each mode damper position by the signals from the A/C control assembly. When the AUTO switch is on, the A/C control assembly changes the mode automatically between (FACE), (BI-LEVEL), and (FOOT) according to the temperature setting.

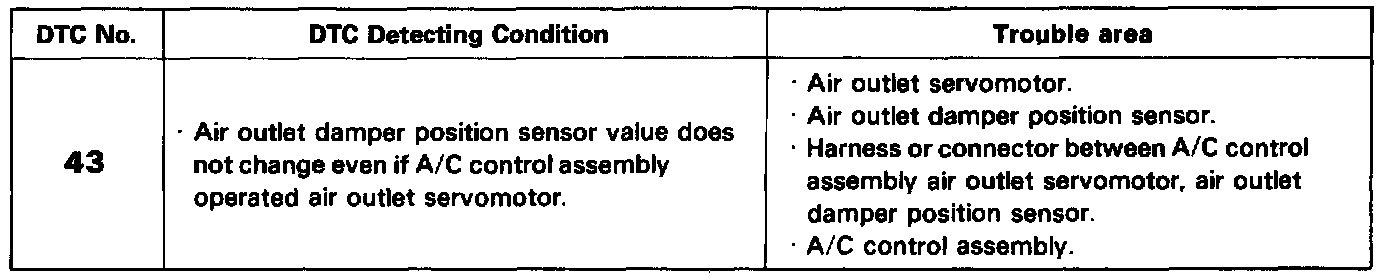

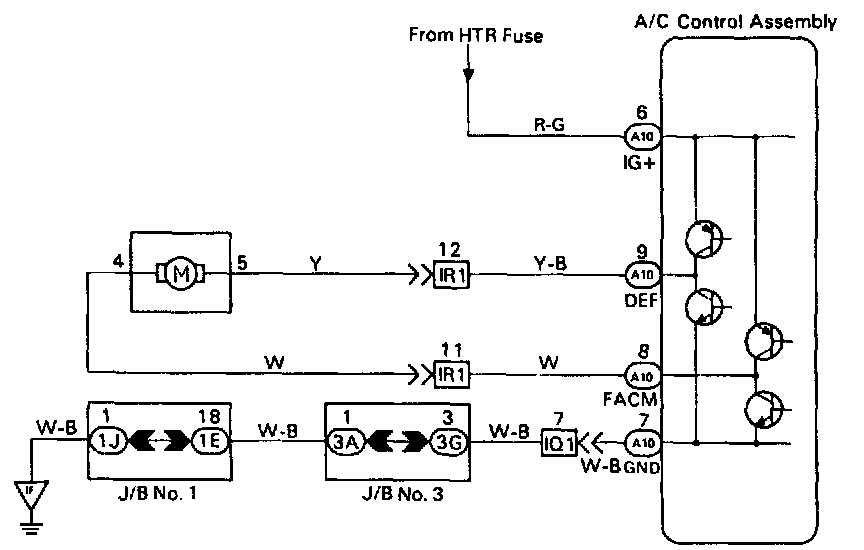

Wiring Diagram:

Inspection Procedure

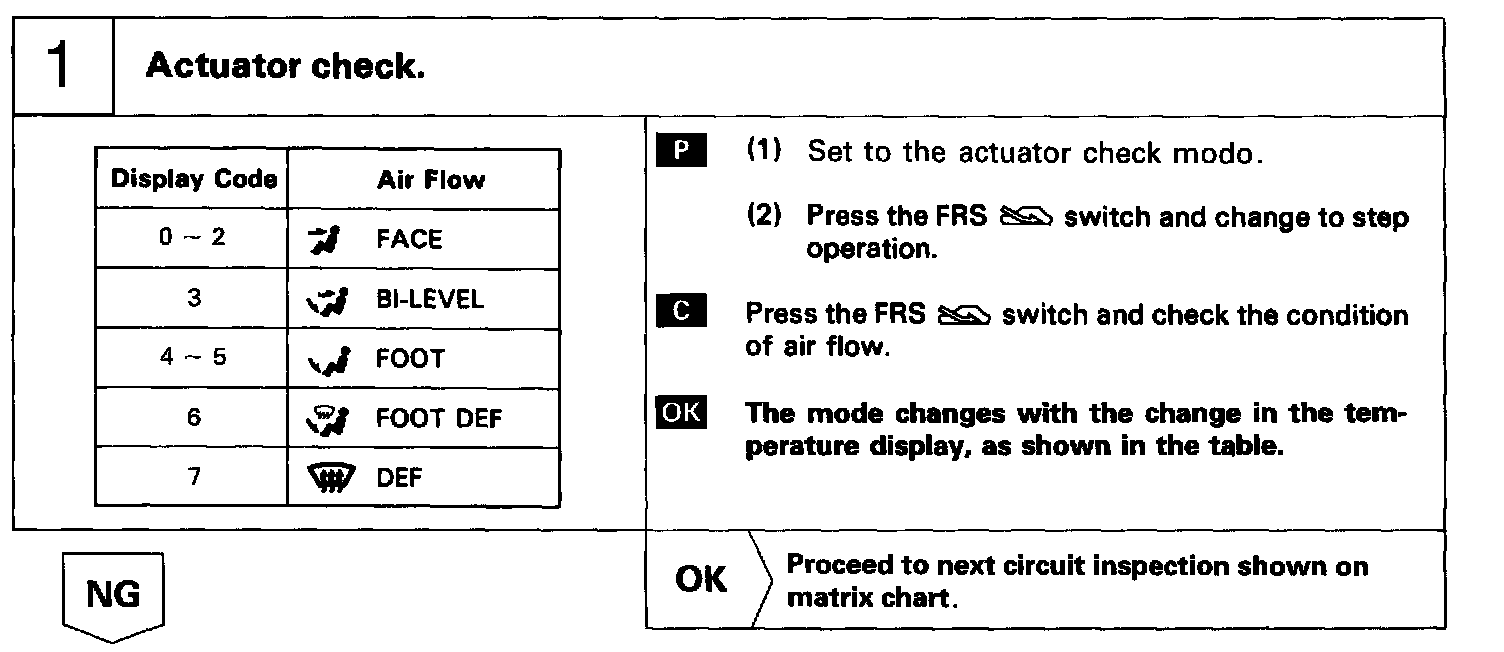

Step 1:

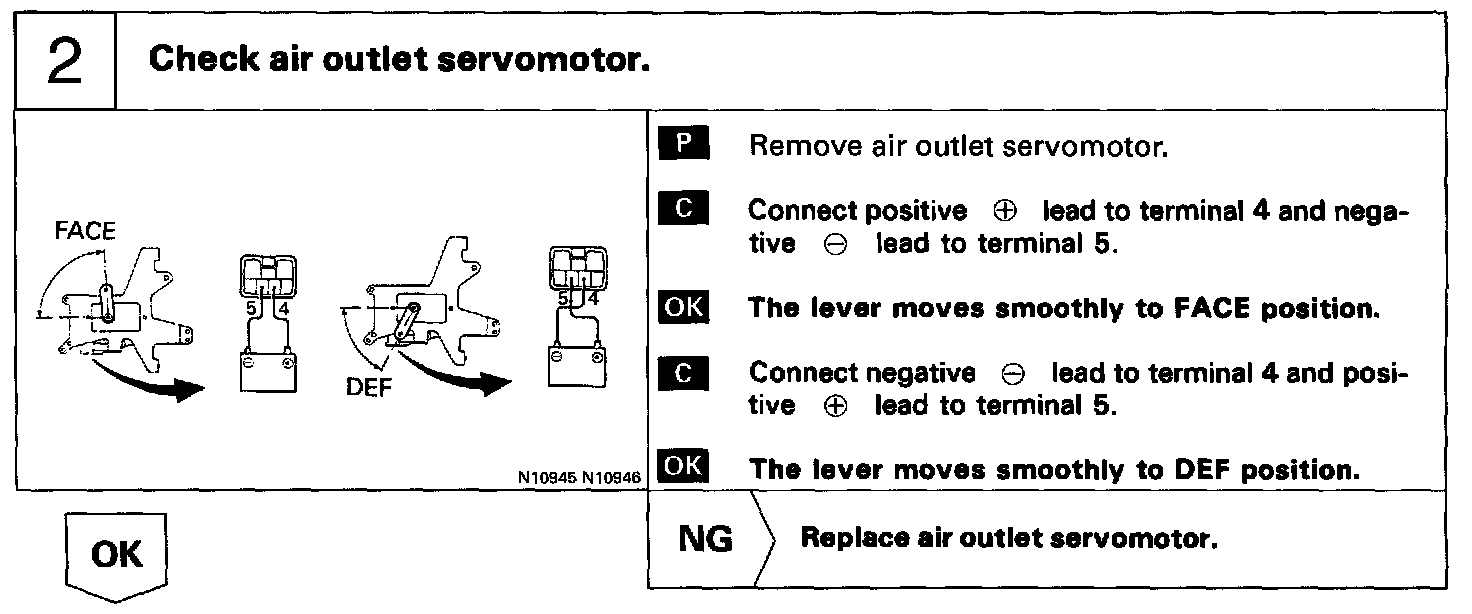

Step 2:

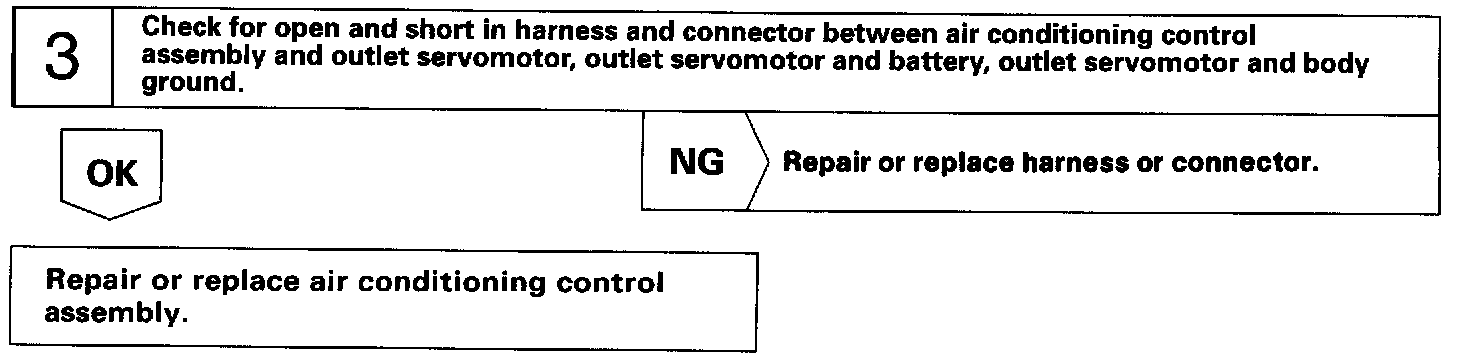

Step 3:
