Air Inlet Damper Position Sensor Circuit

Circuit Description
This sensor detects the position of the air inlet damper and sends the appropriate signals to the air conditioning control assembly. The position sensor is built into the air mix servomotor assembly.

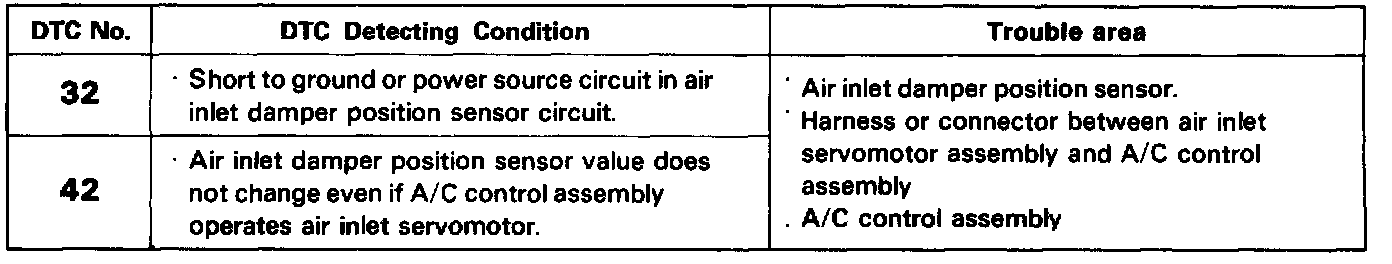

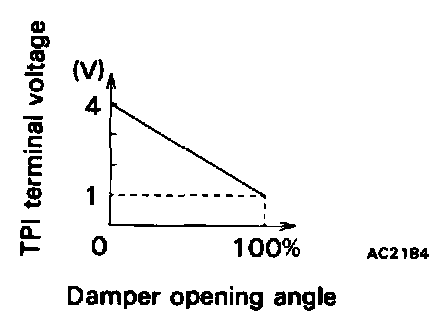

TPI Terminal Voltage:

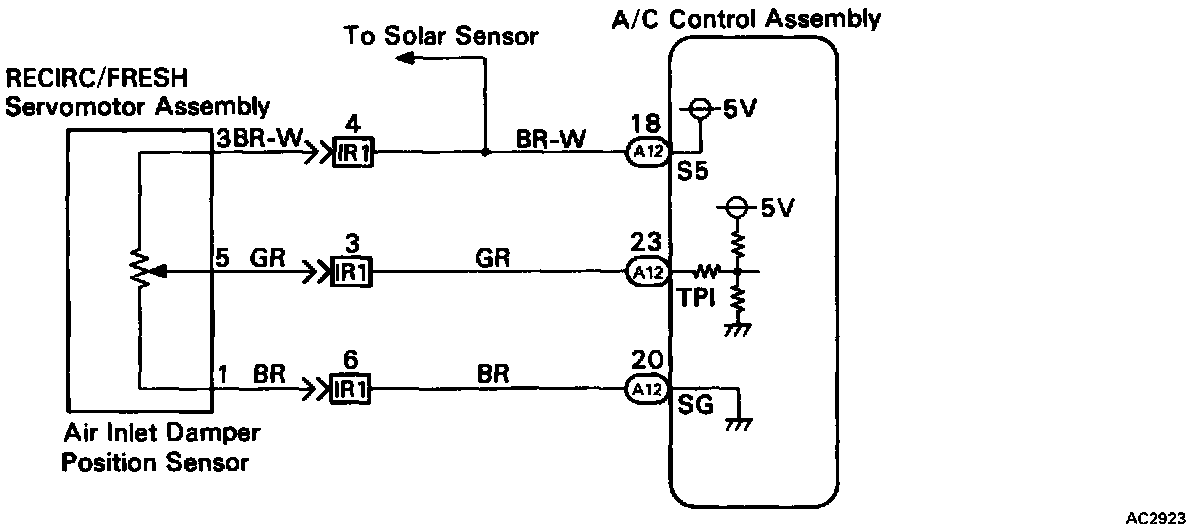

Wiring Diagram:

Inspection Procedure

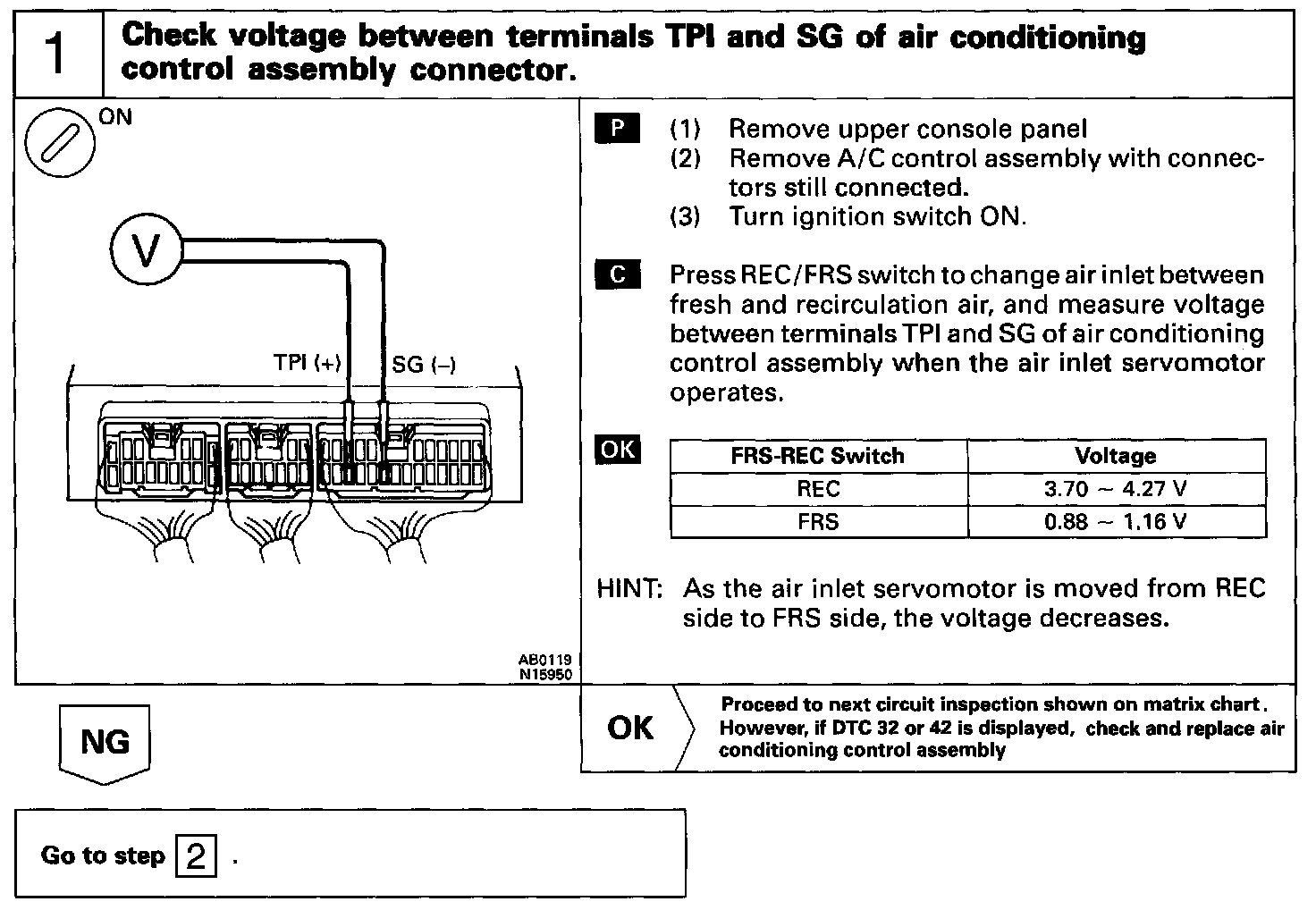

Step 1:

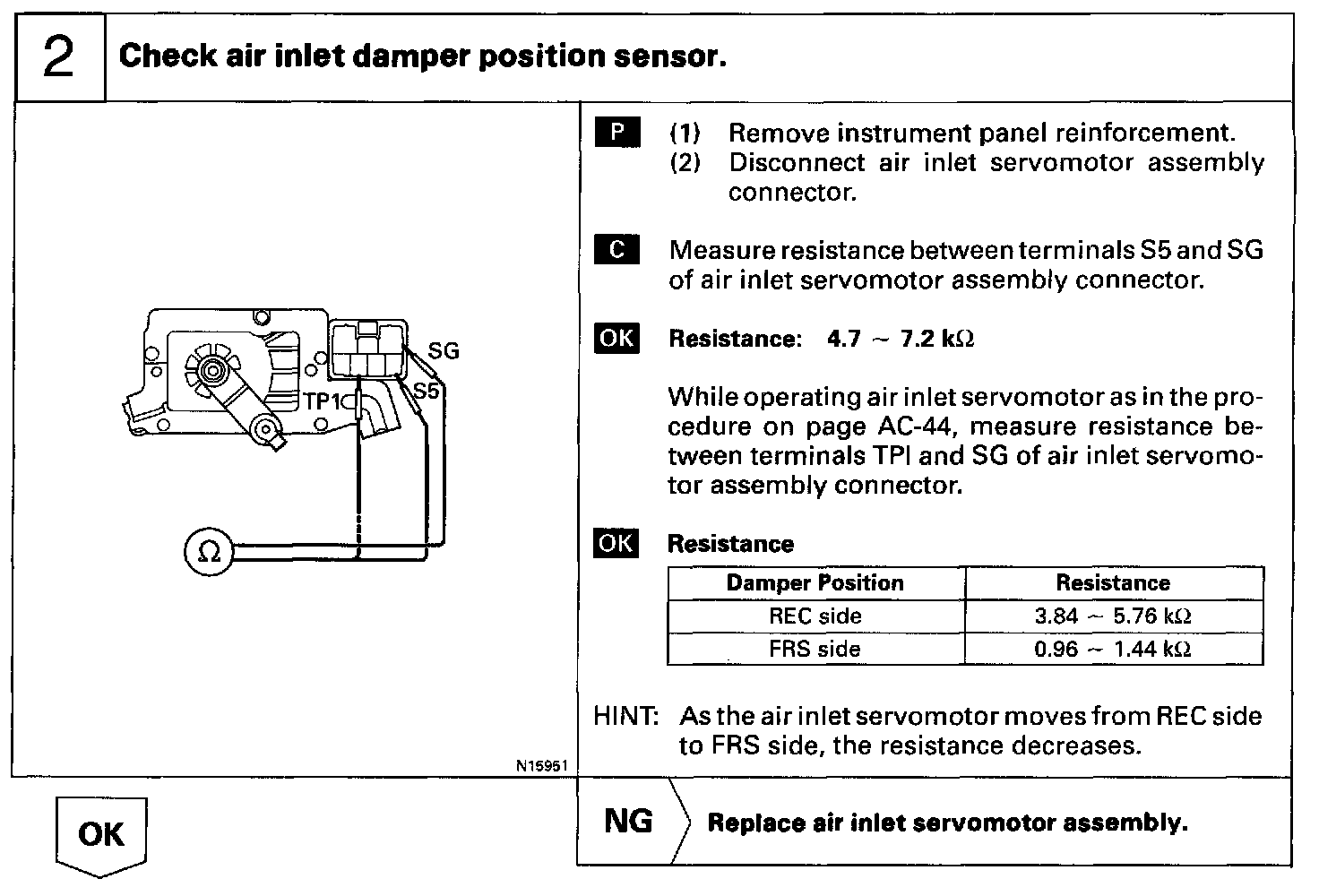

Step 2:

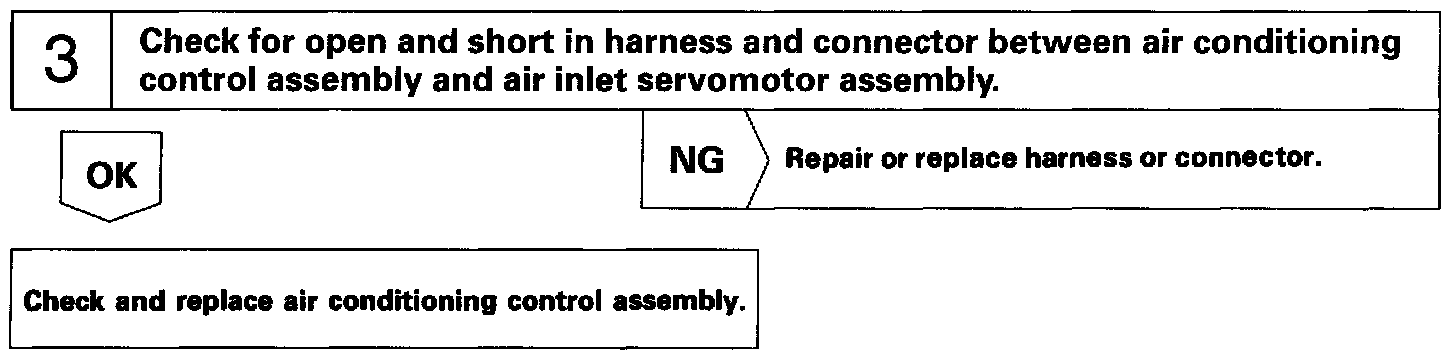

Step 3:
