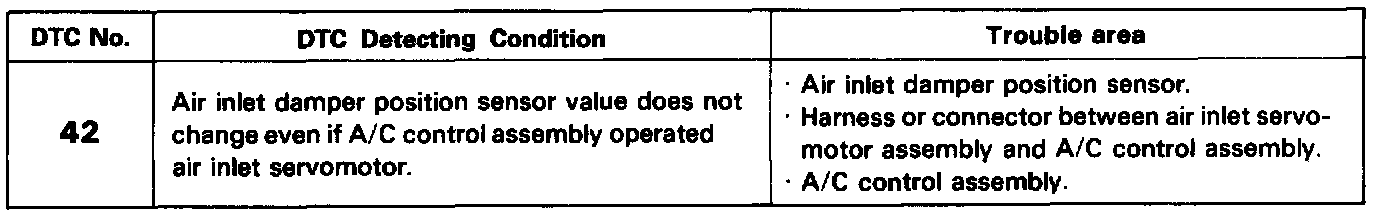

Air Inlet Control Servomotor Circuit







Circuit Description
The air inlet servomotor is controlled by the air conditioning control assembly and moves the air inlet damper to the desired position.

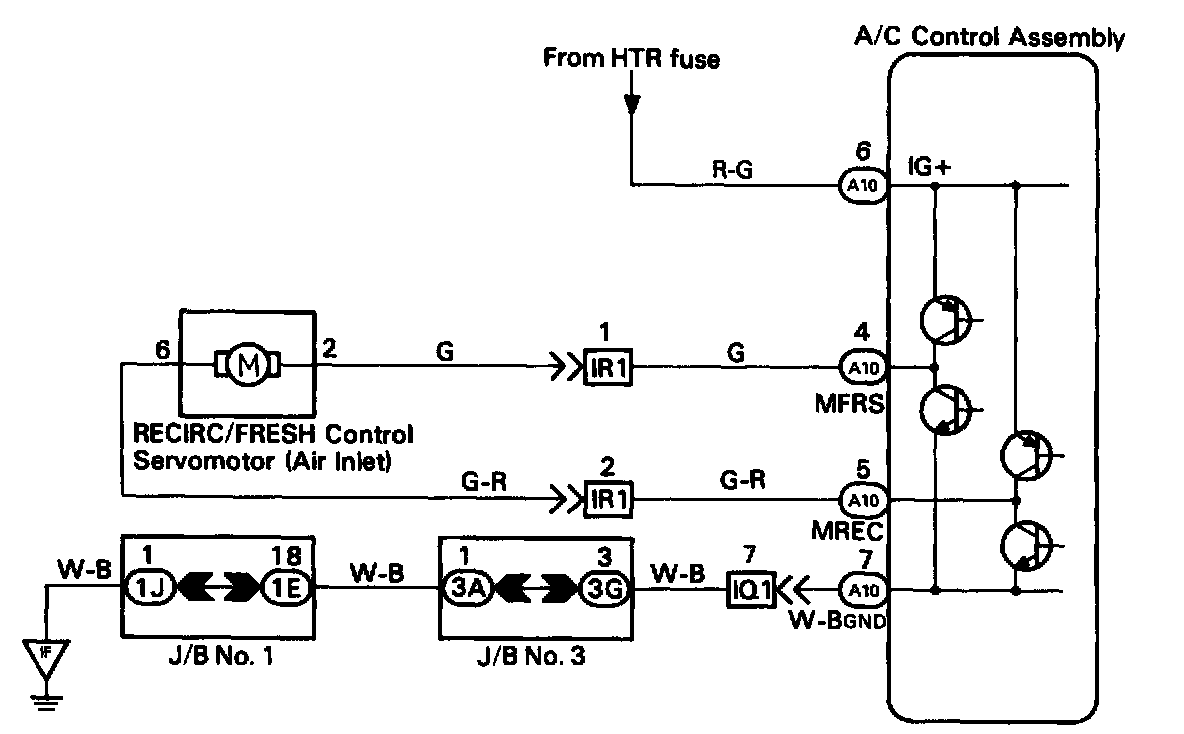

Wiring Diagram:





Inspection Procedure

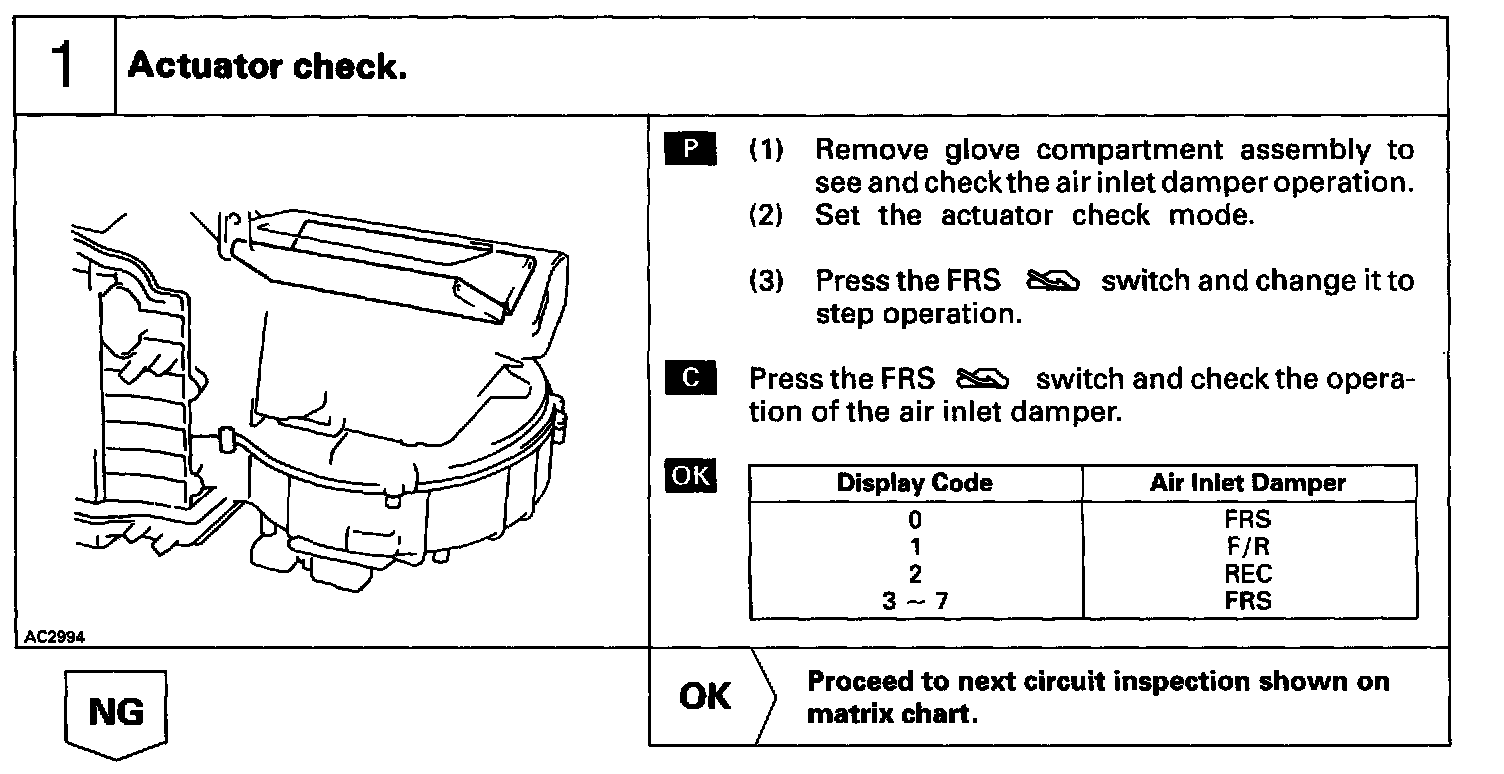

Step 1:

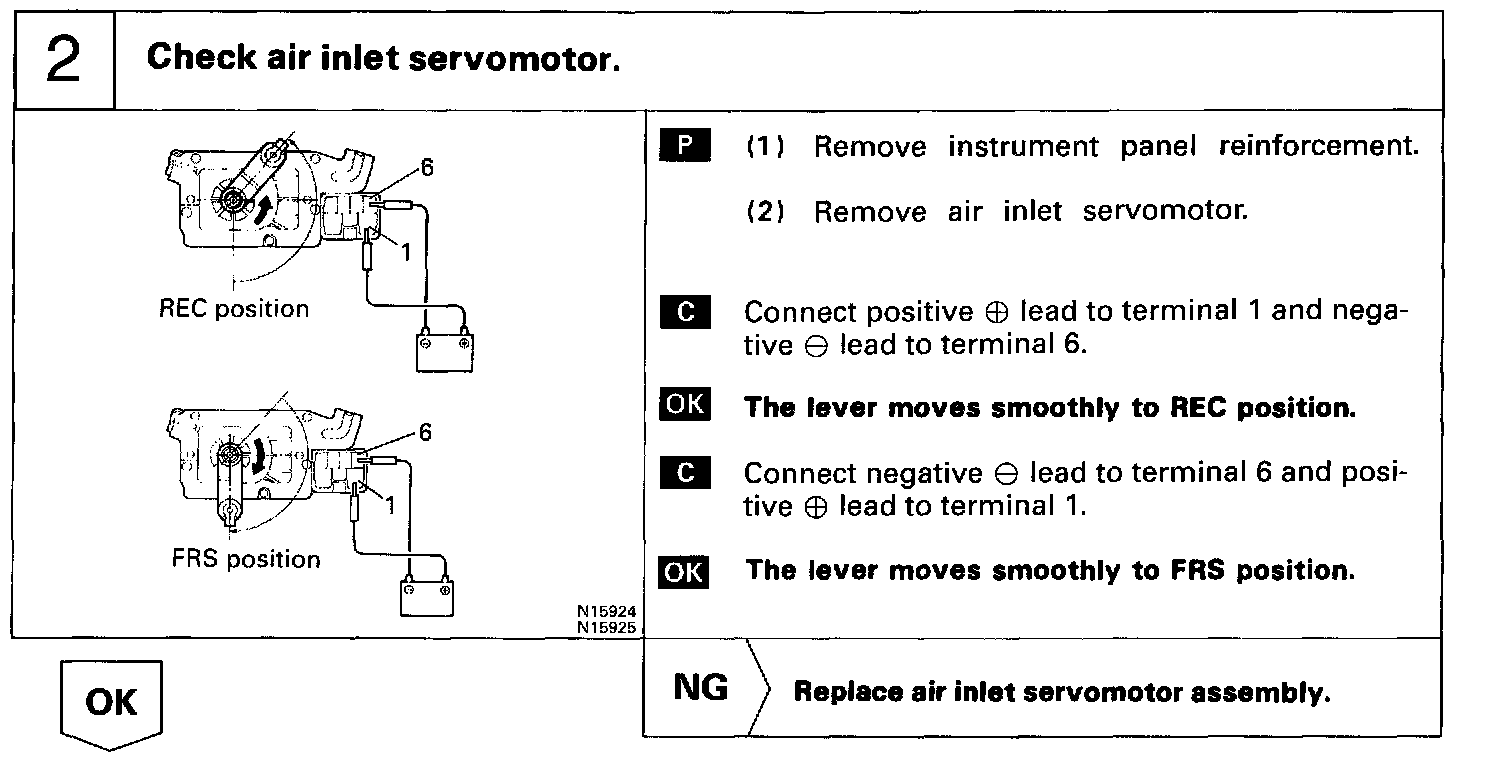

Step 2:

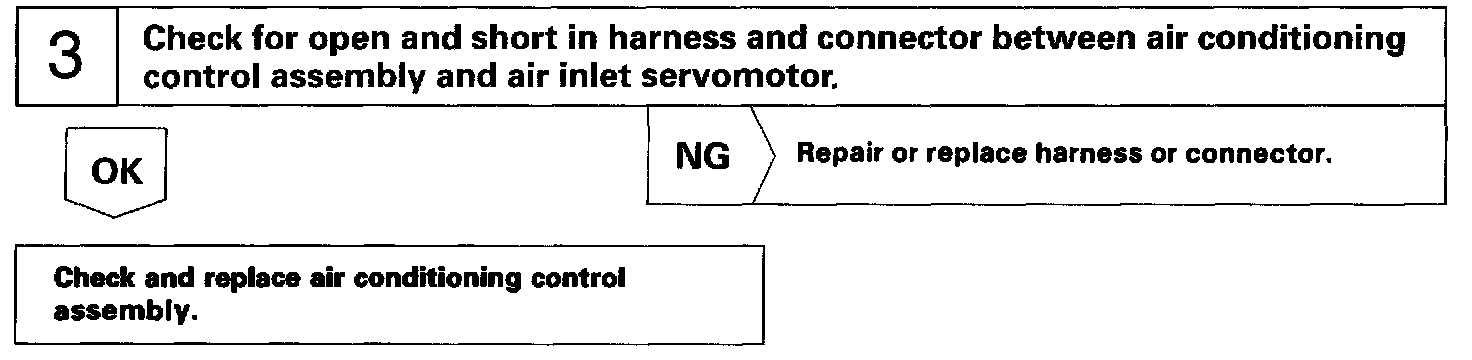

Step 3:
