Air Mix Control Servomotor Circuit

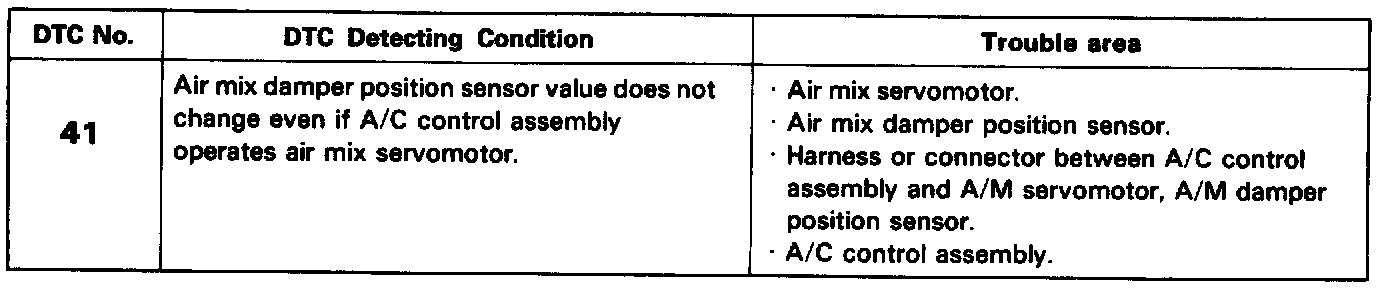

Circuit Description
The air mix servomotor is controlled by the A/C control assembly and moves the air mix damper to the desired position.

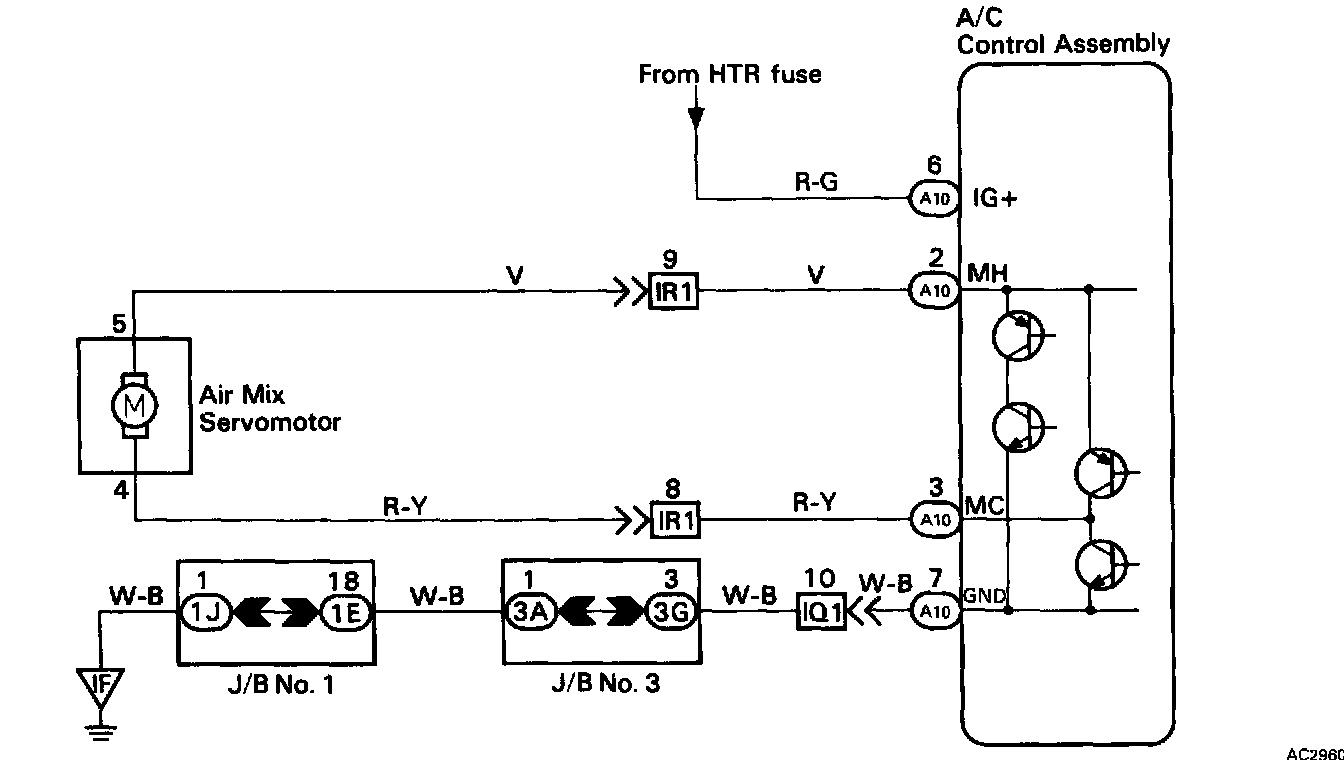

Wiring Diagram:

Inspection Procedure

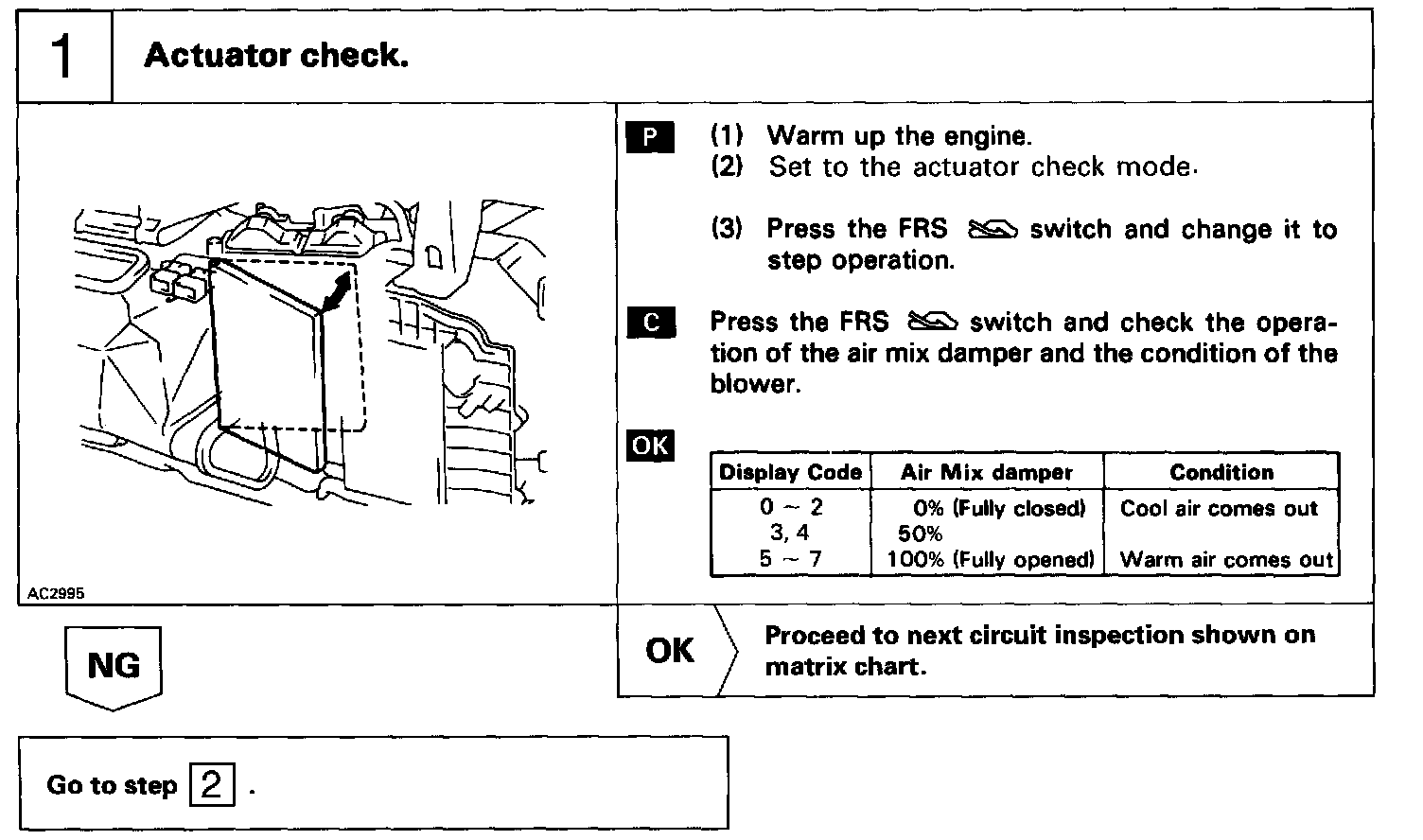

Step 1:

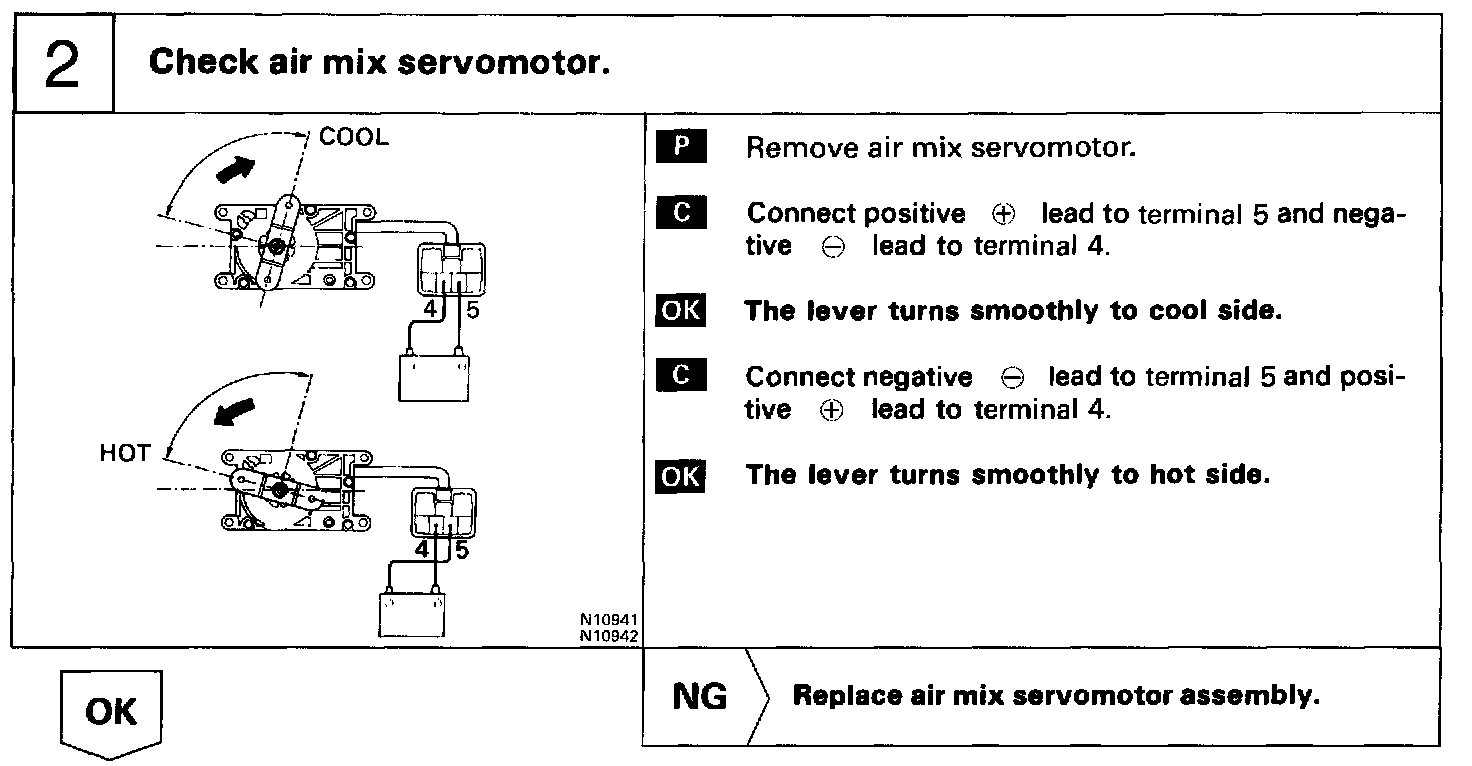

Step 2:

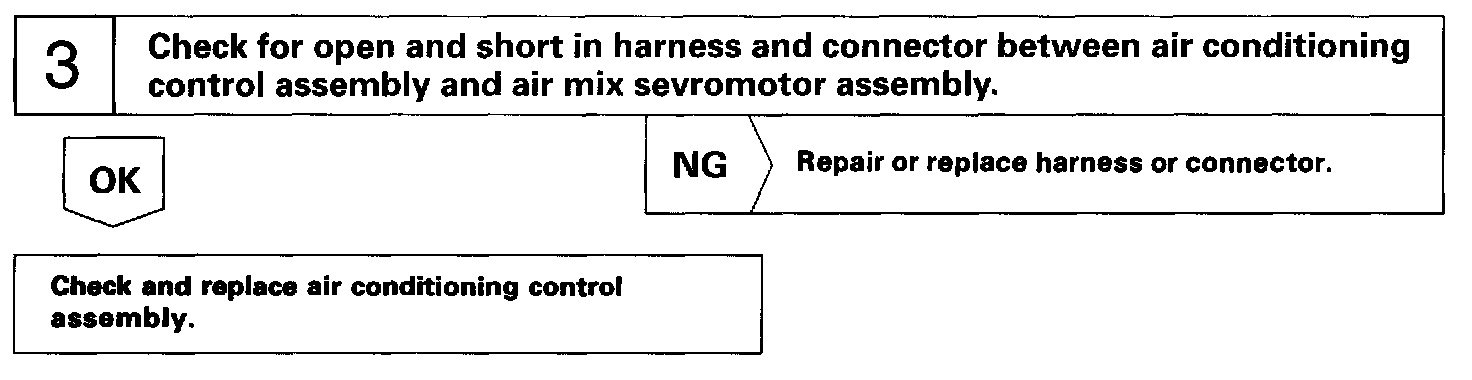

Step 3:
