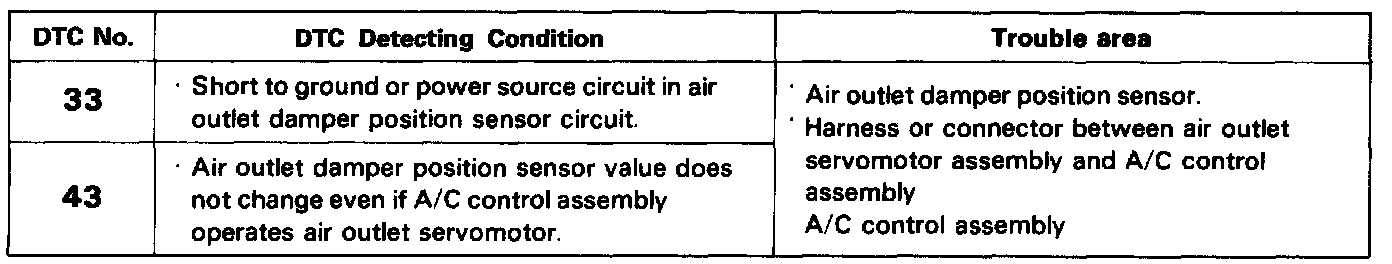

DTC 33

CIRCUIT DESCRIPTION
This sensor detects the position of the air outlet damper and sends the appropriate signals to the air conditioning control assembly. The position sensor is built into the air outlet servomotor assembly.

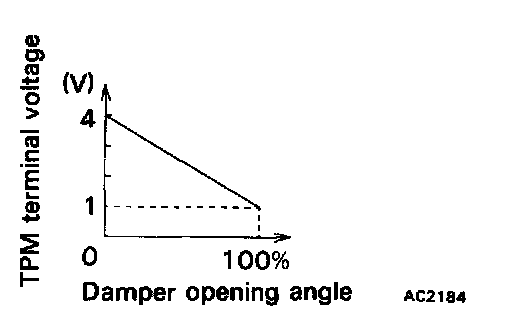

TPM Terminal Voltage:

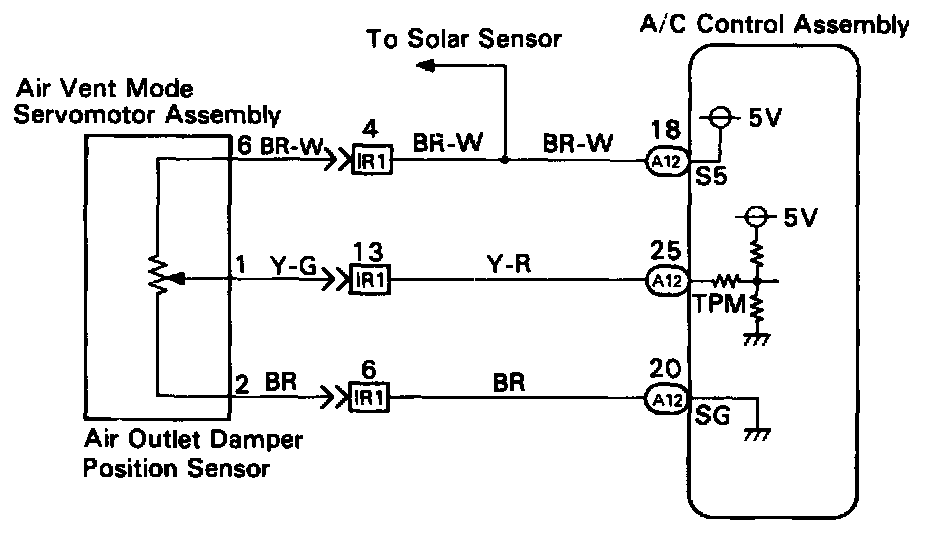

Wiring Diagram:

Inspection Procedure

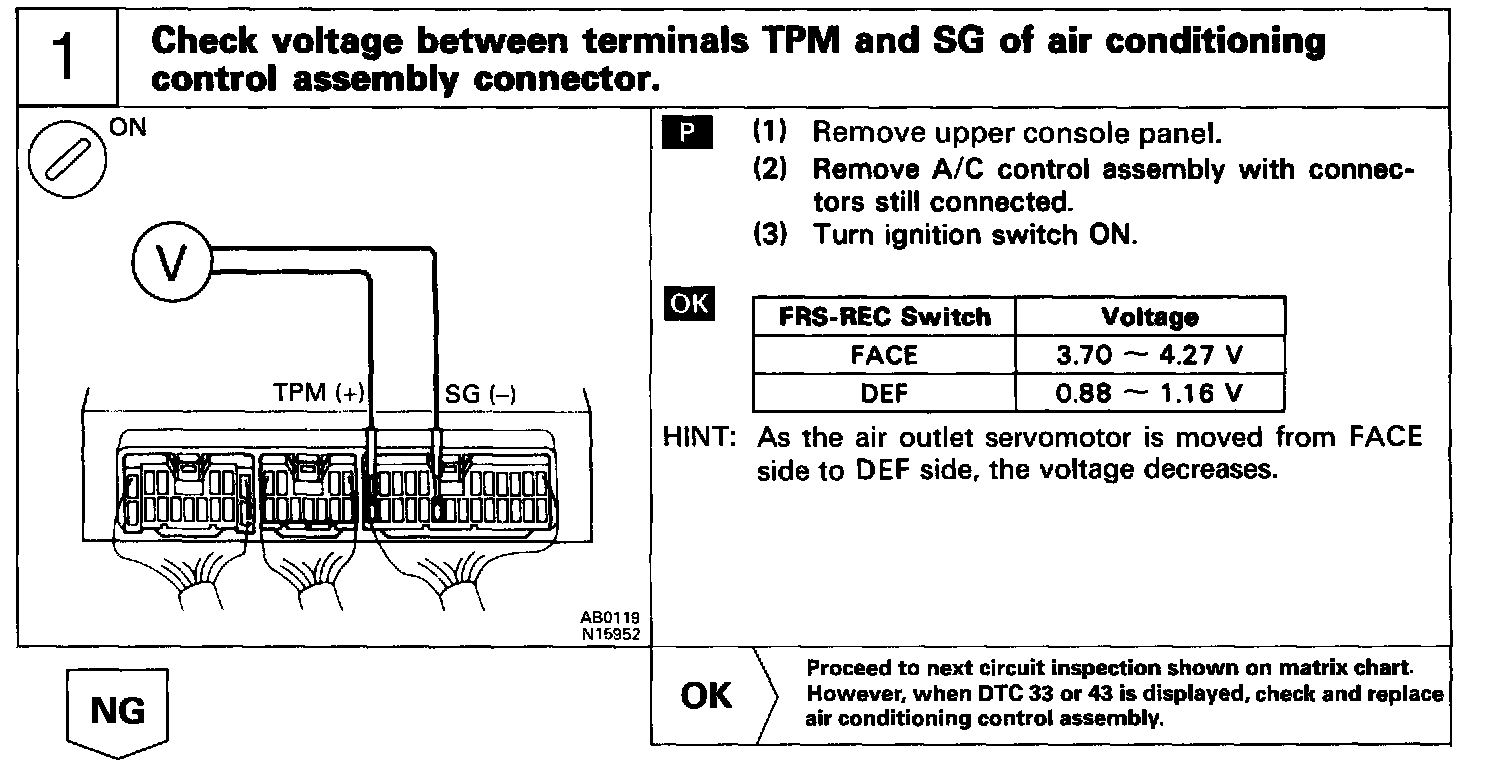

Step 1:

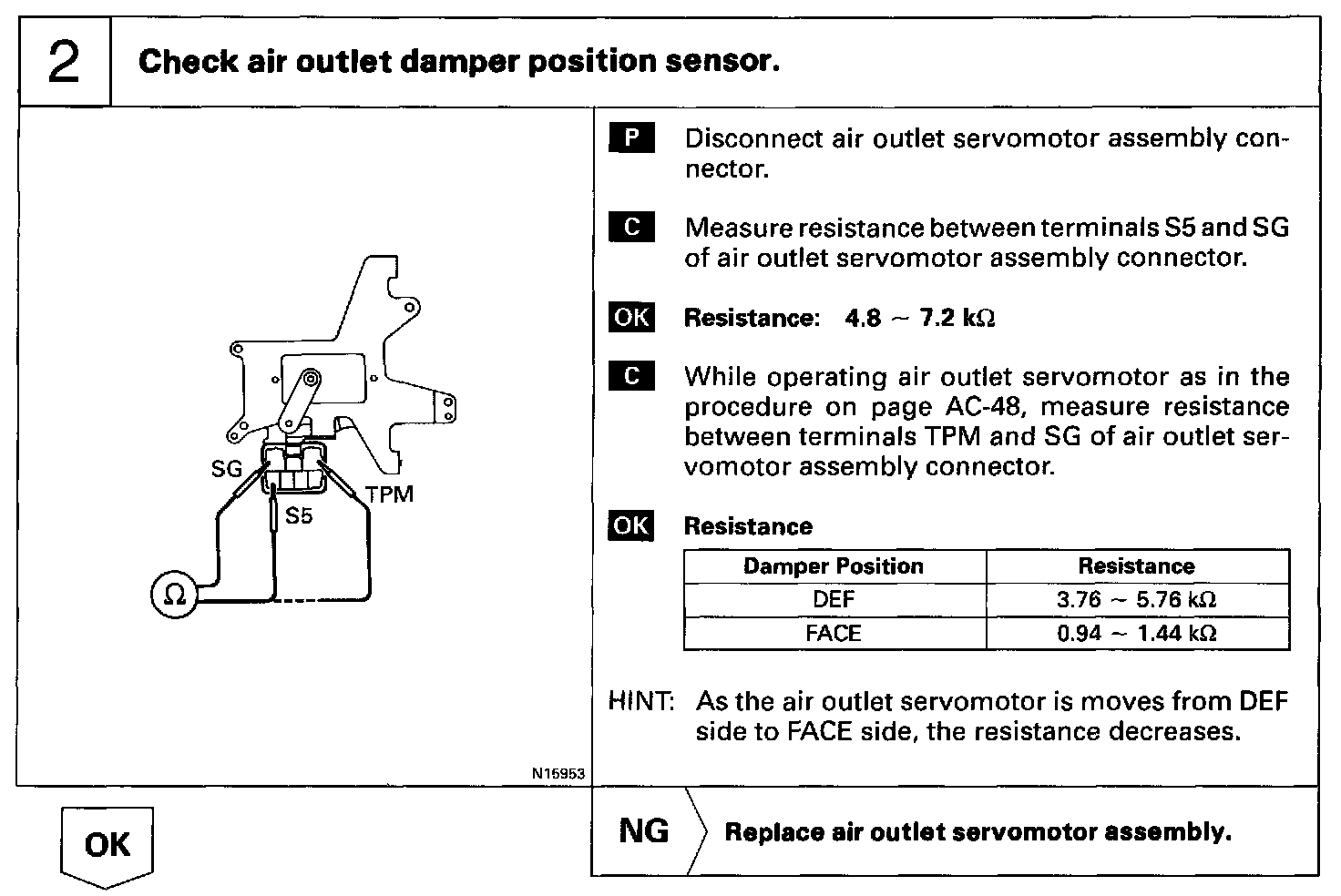

Step 2:

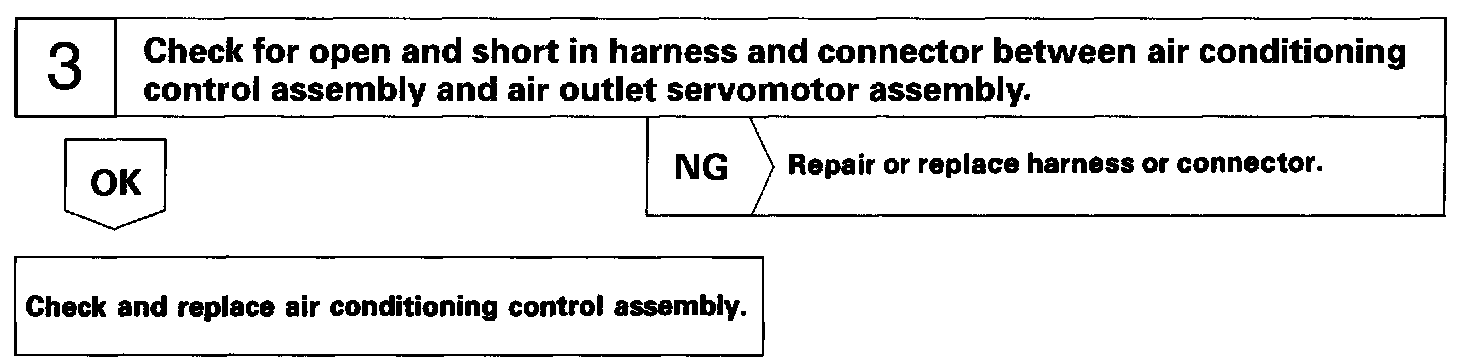

Step 3:
