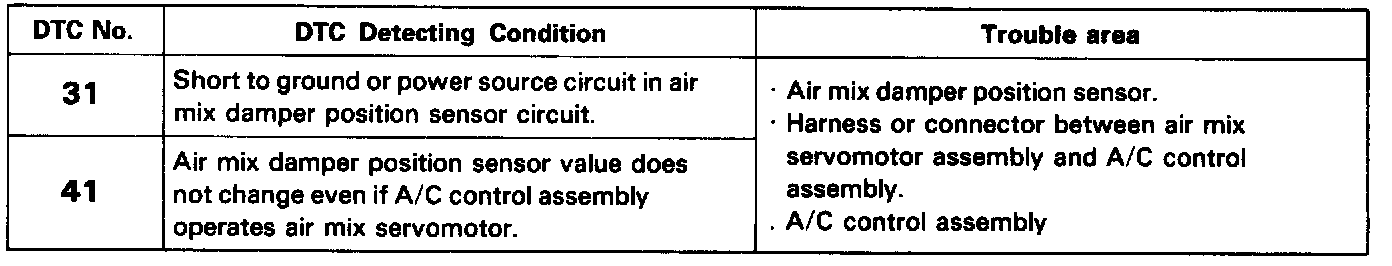

DTC 31

Circuit Description
This sensor detects the position of the air mix damper and sends the appropriate signals to the air conditioning control assembly. The position sensor is built into the air mix servomotor assembly.

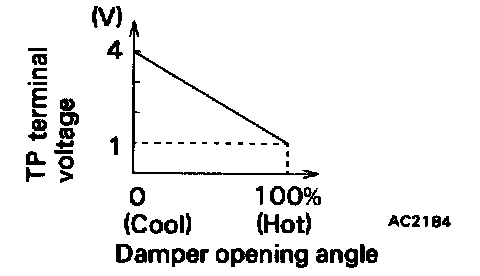

TP Terminal Voltage:

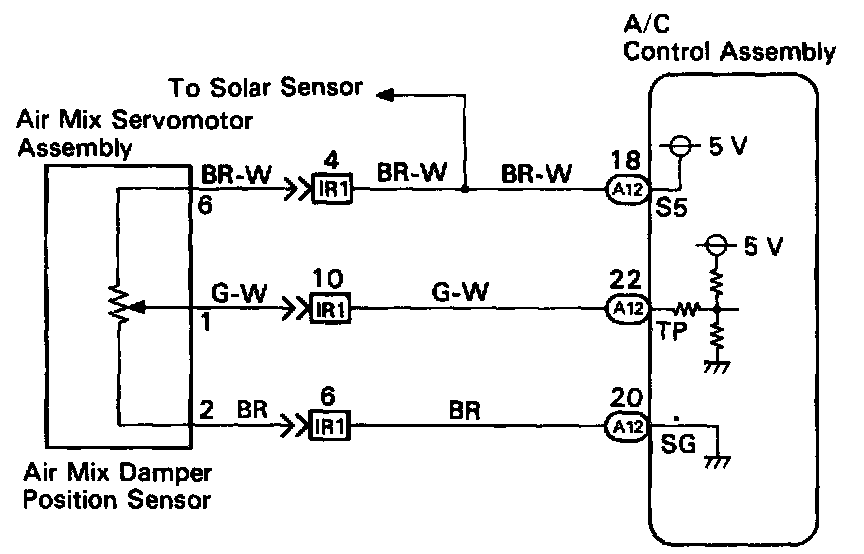

Wiring Diagram:

Inspection Procedure

Step 1:

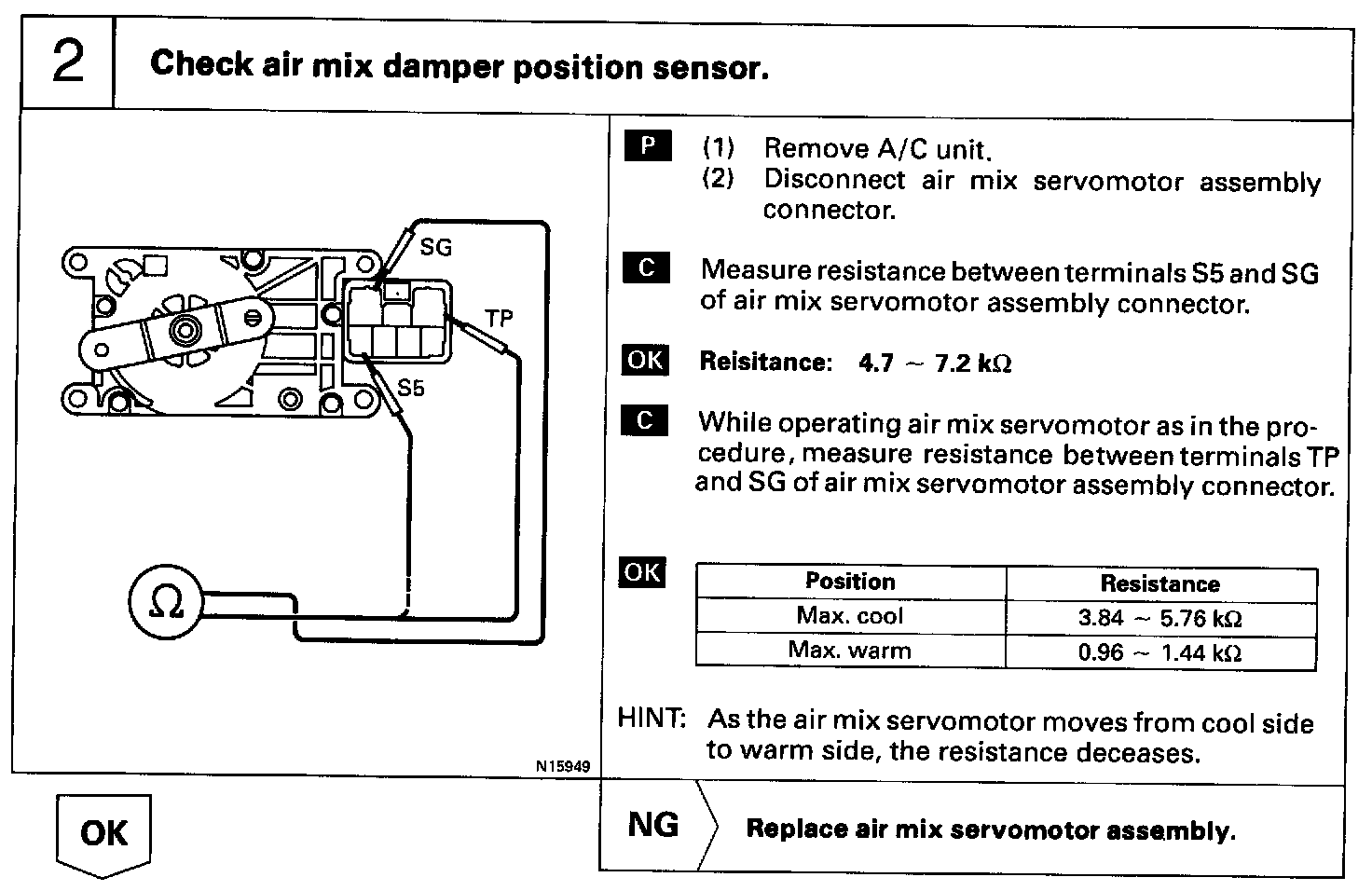

Step 2:

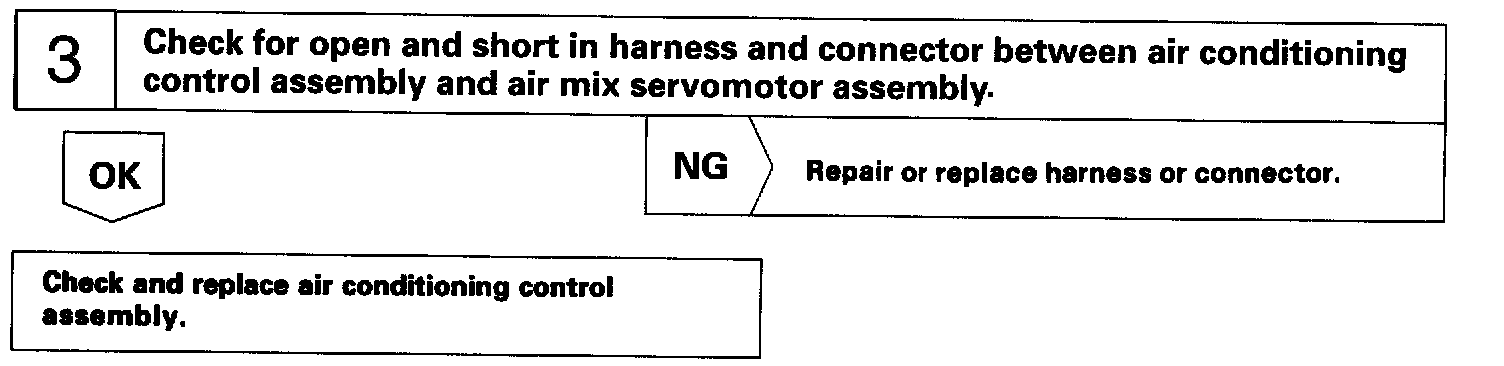

Step 3:
