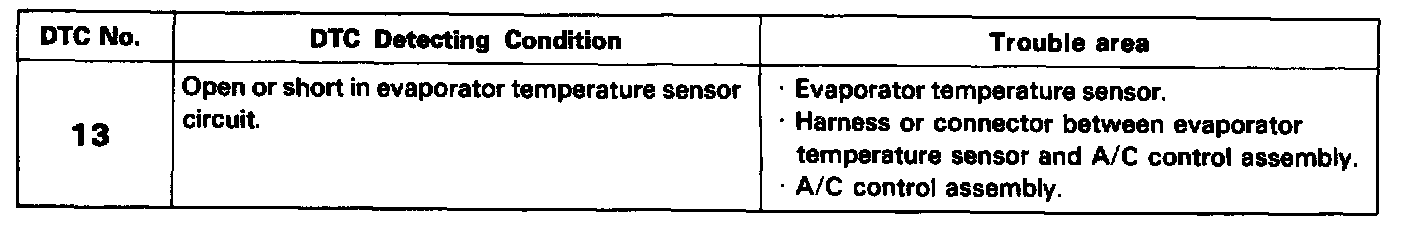

DTC 13

Circuit Description
This sensor detects the temperature inside the cooling unit and sends the appropriate signals to the air conditioning control assembly.

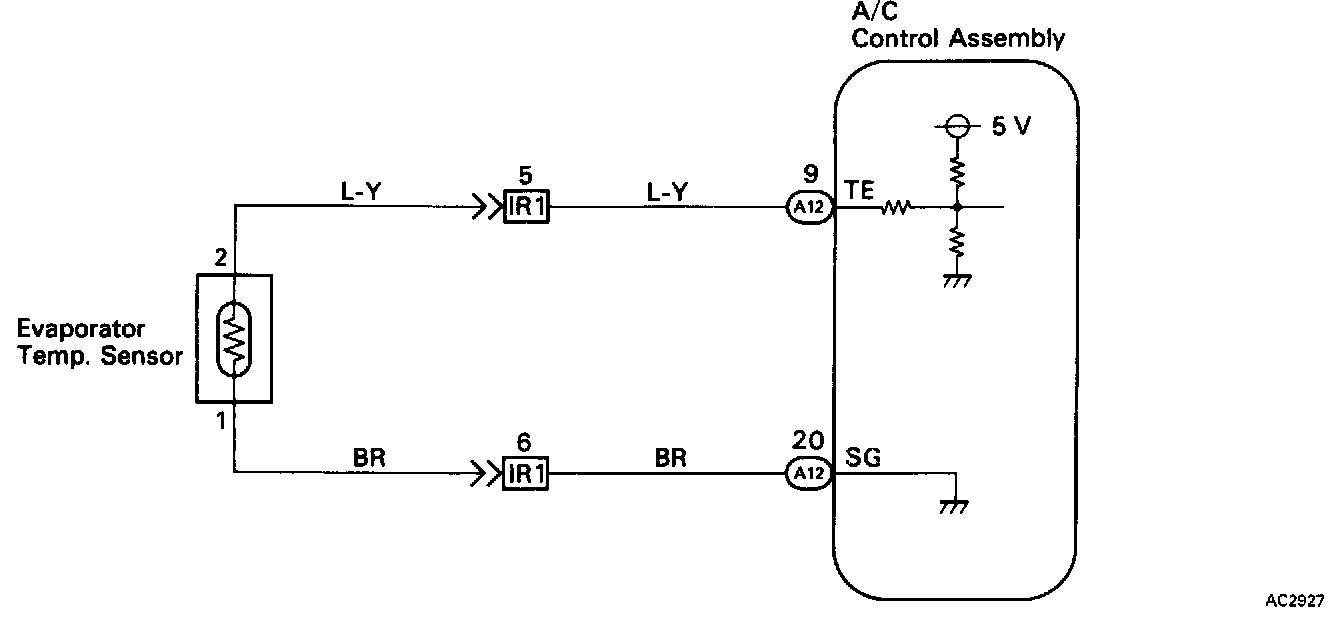

Wiring Diagram:

Inspection Procedure

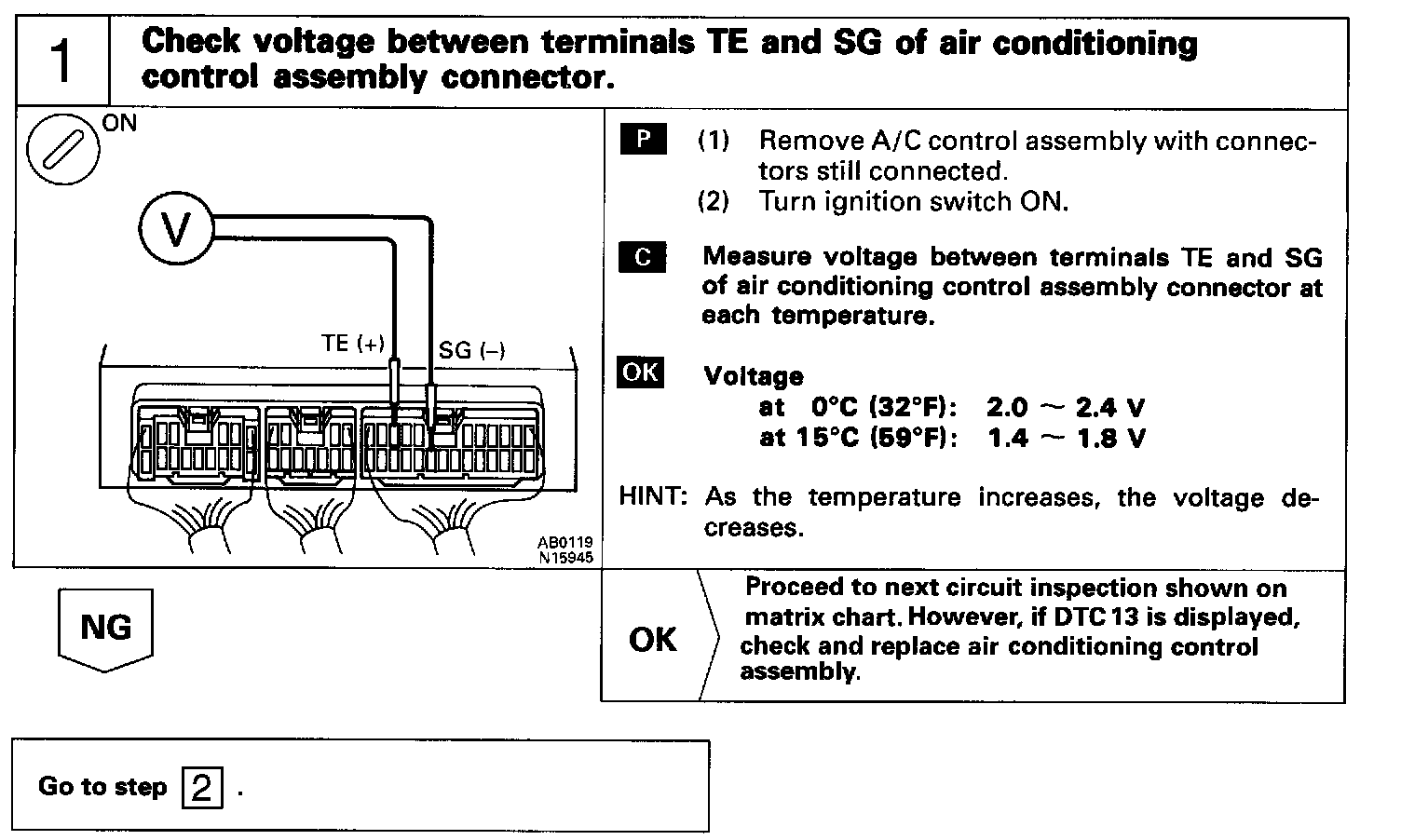

Step 1:

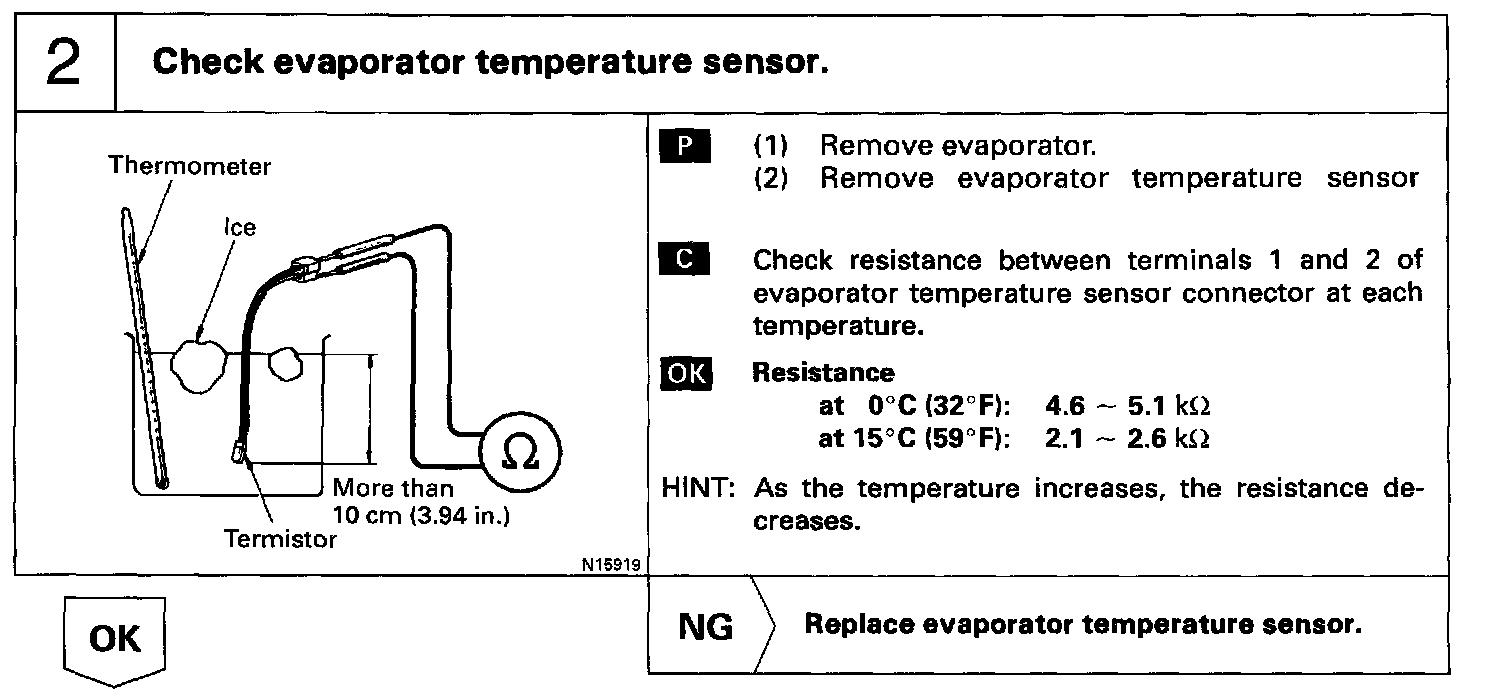

Step 2:

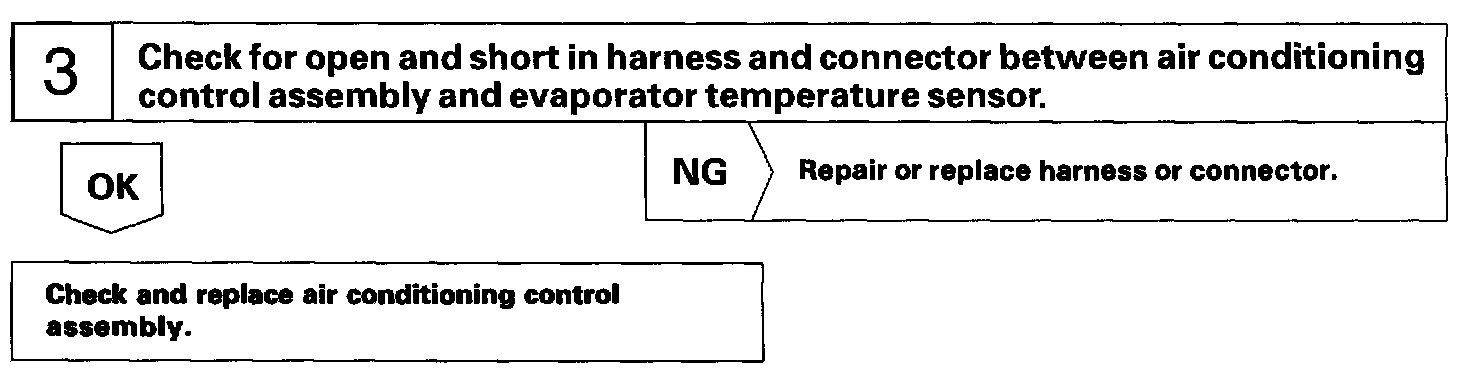

Step 3:
