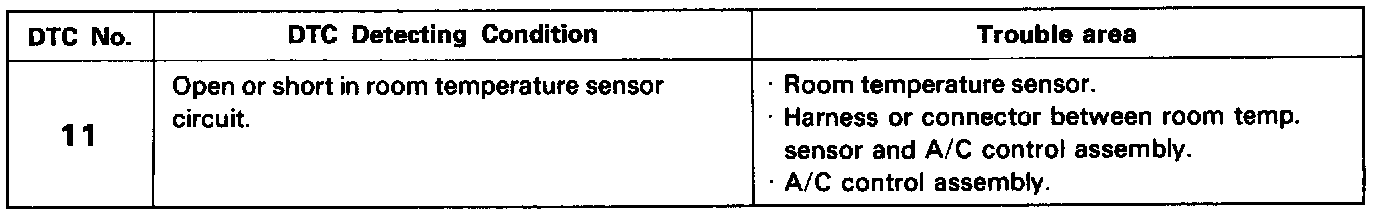

DTC 11

Circuit Description
This sensor detects the temperature inside the cabin and sends the appropriate signals the A/C control assembly.

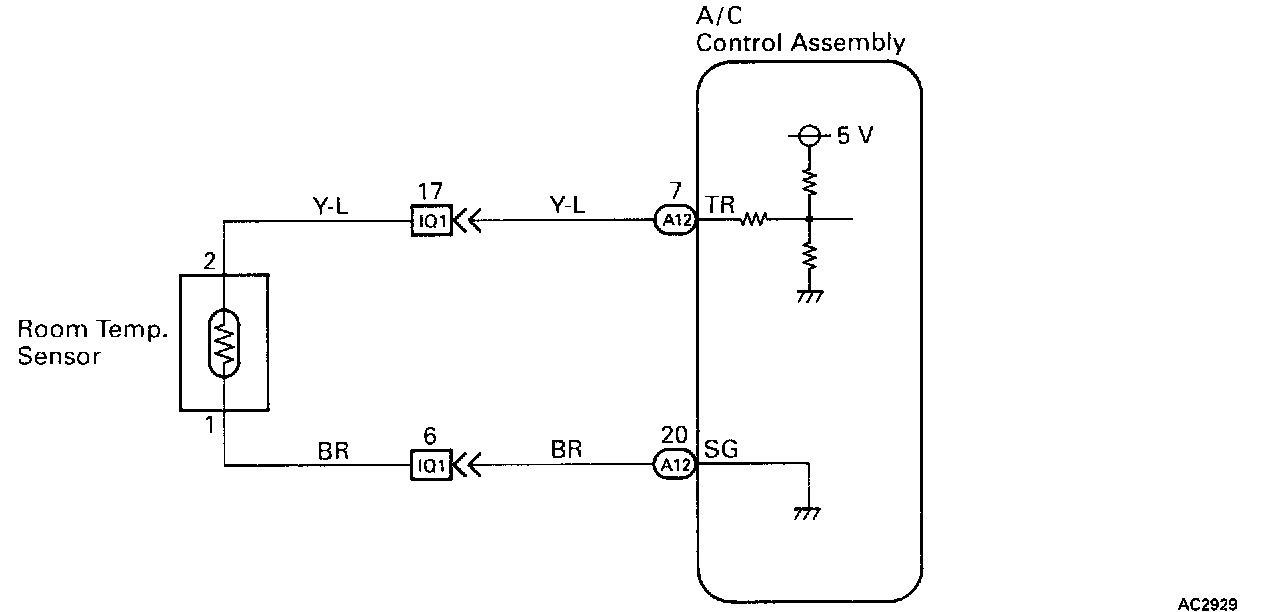

Wiring Diagram:

Inspection Procedure

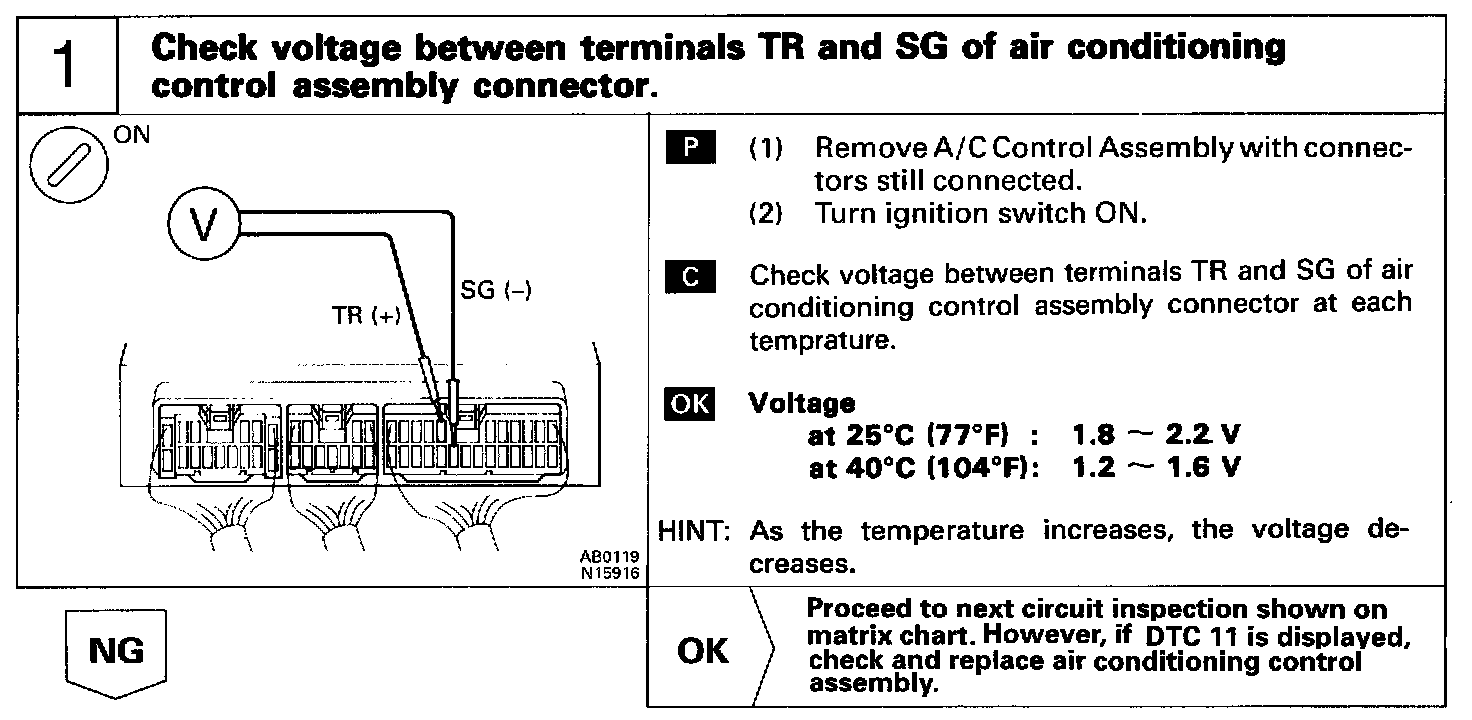

Step 1:

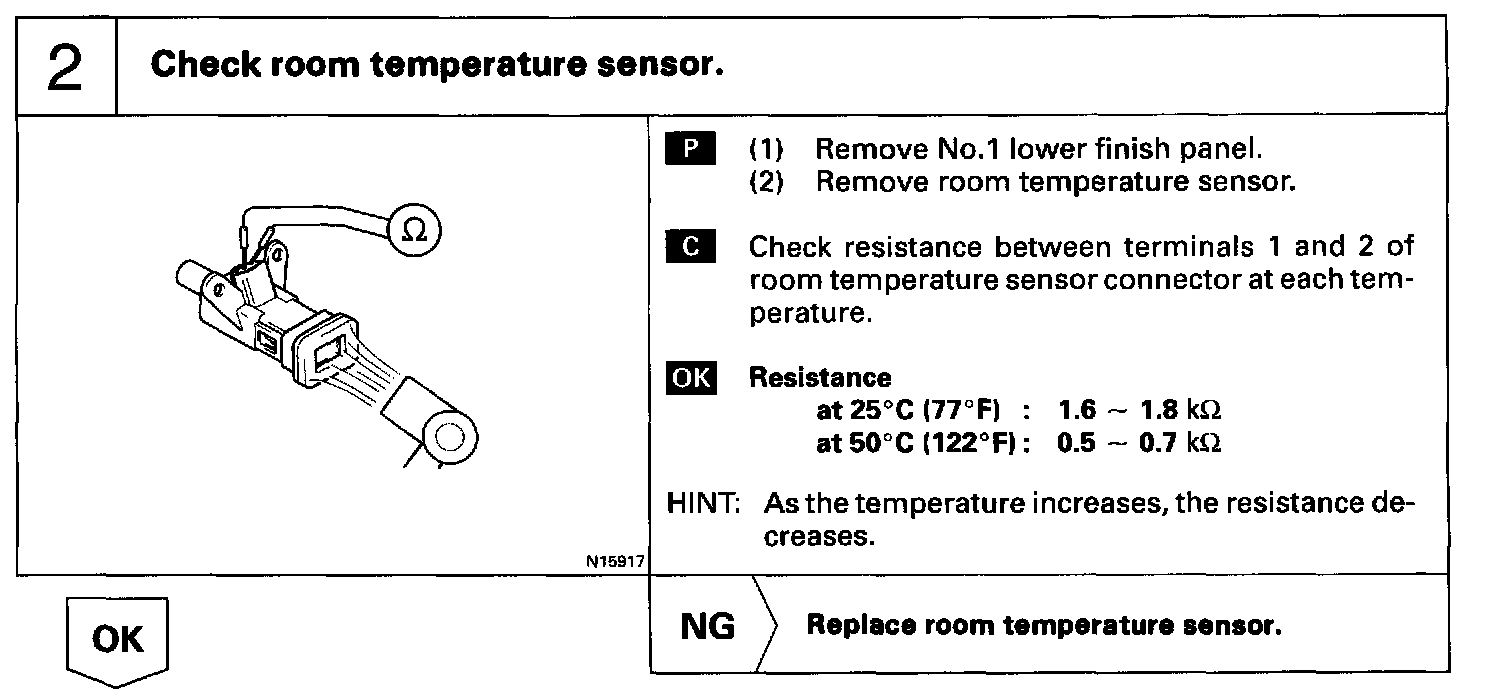

Step 2:

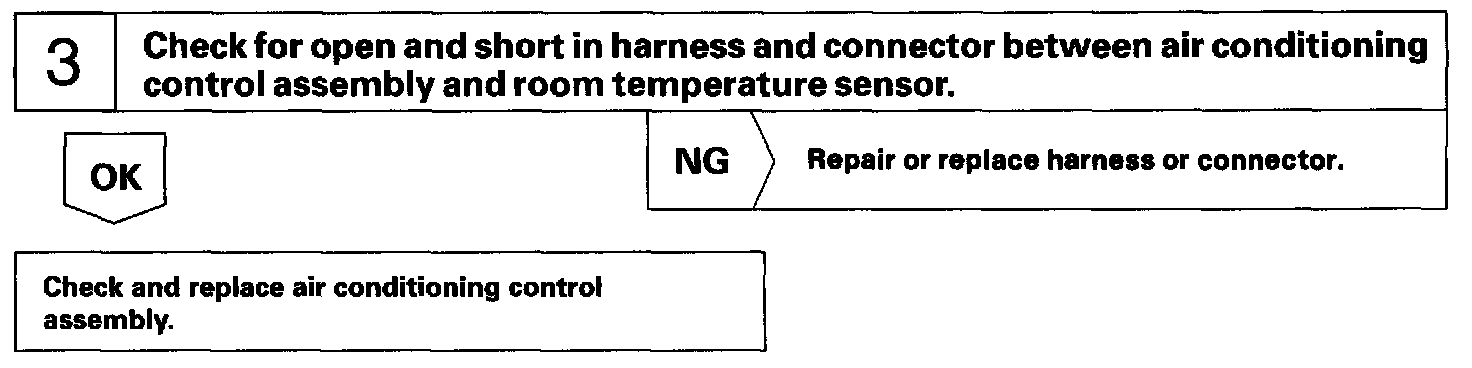

Step 3:
