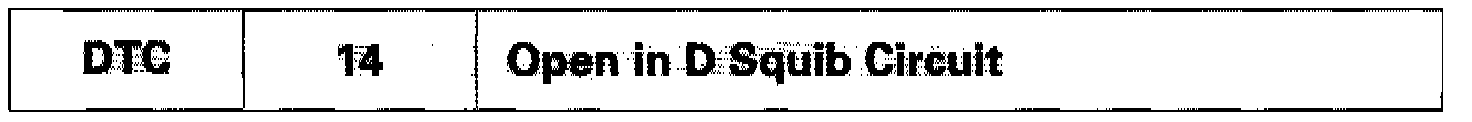

DTC 14

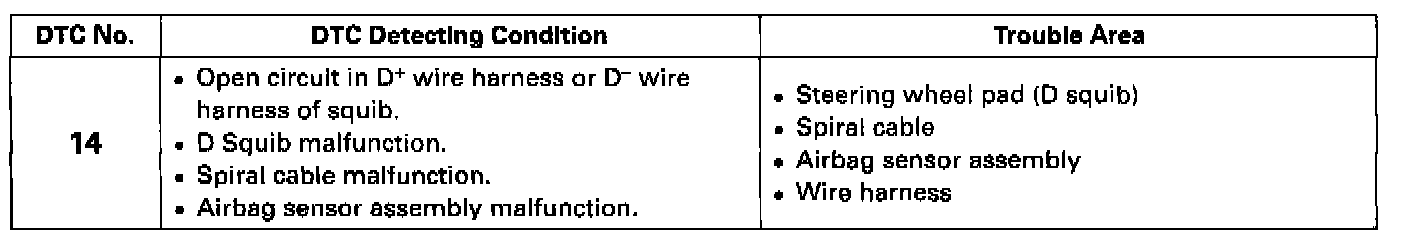

CIRCUIT DESCRIPTION

The D squib Circuit consists of the airbag sensor assembly, spiral cable and steering wheel pad. It causes the airbag to deploy when the airbag deployment conditions are satisfied. Diagnostic trouble code 14 is recorded when an open is detected in the D squib circuit.

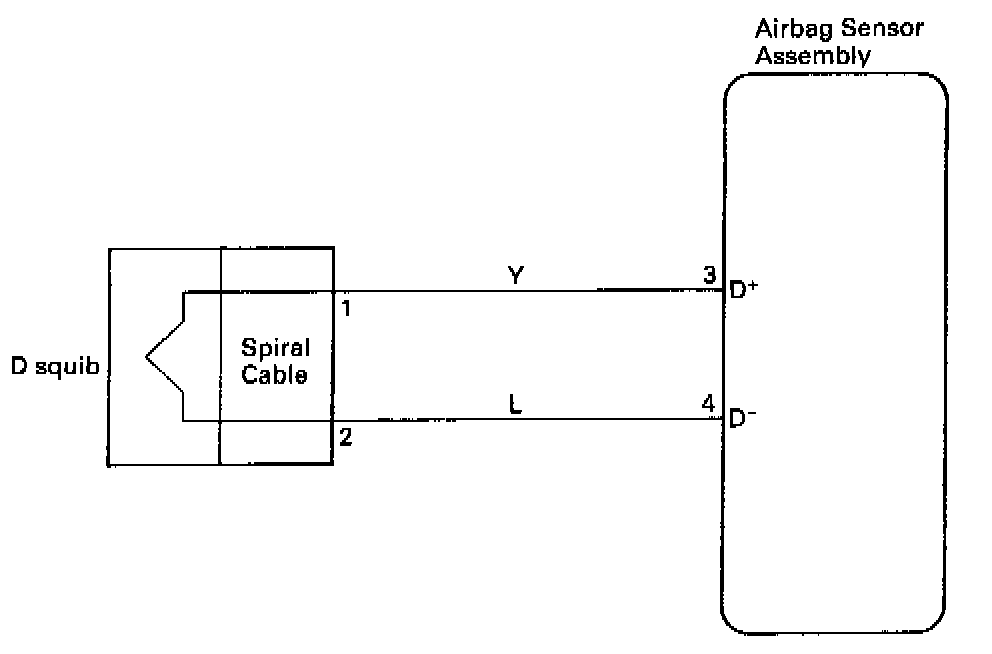

Wiring Diagram:

Wiring Diagram

Step 1:

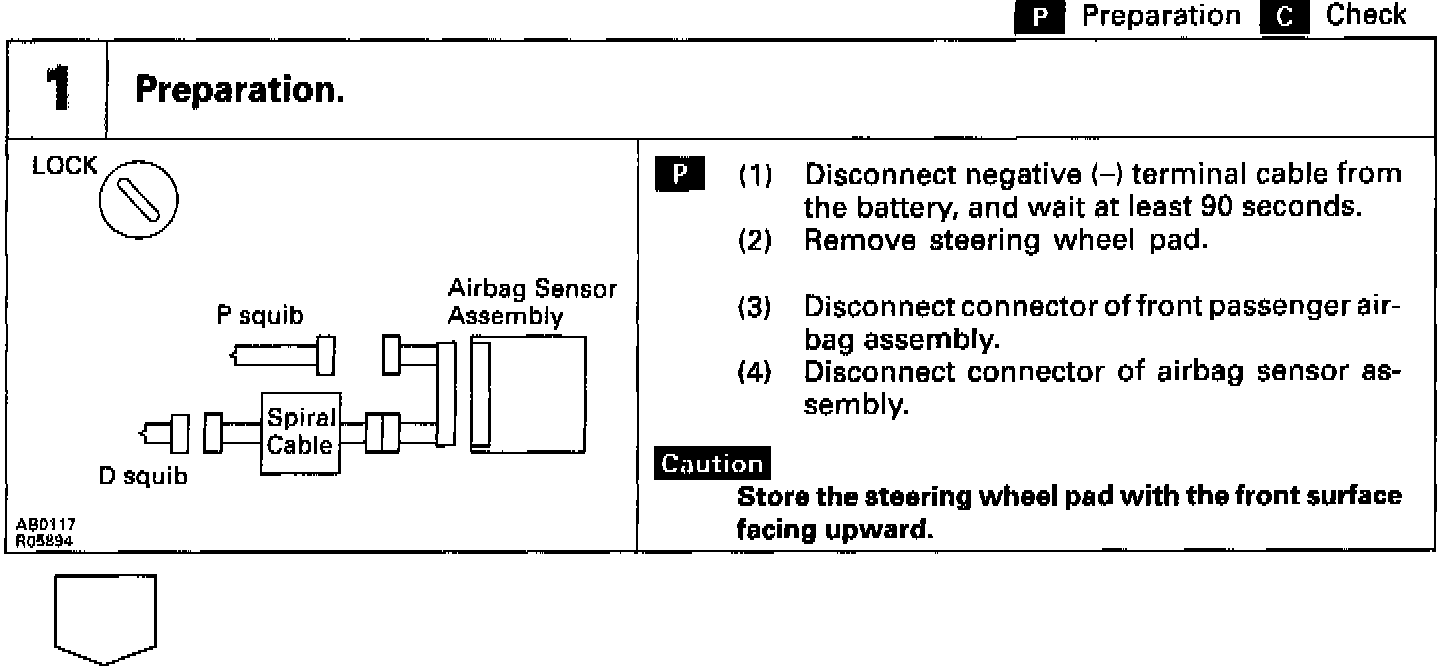

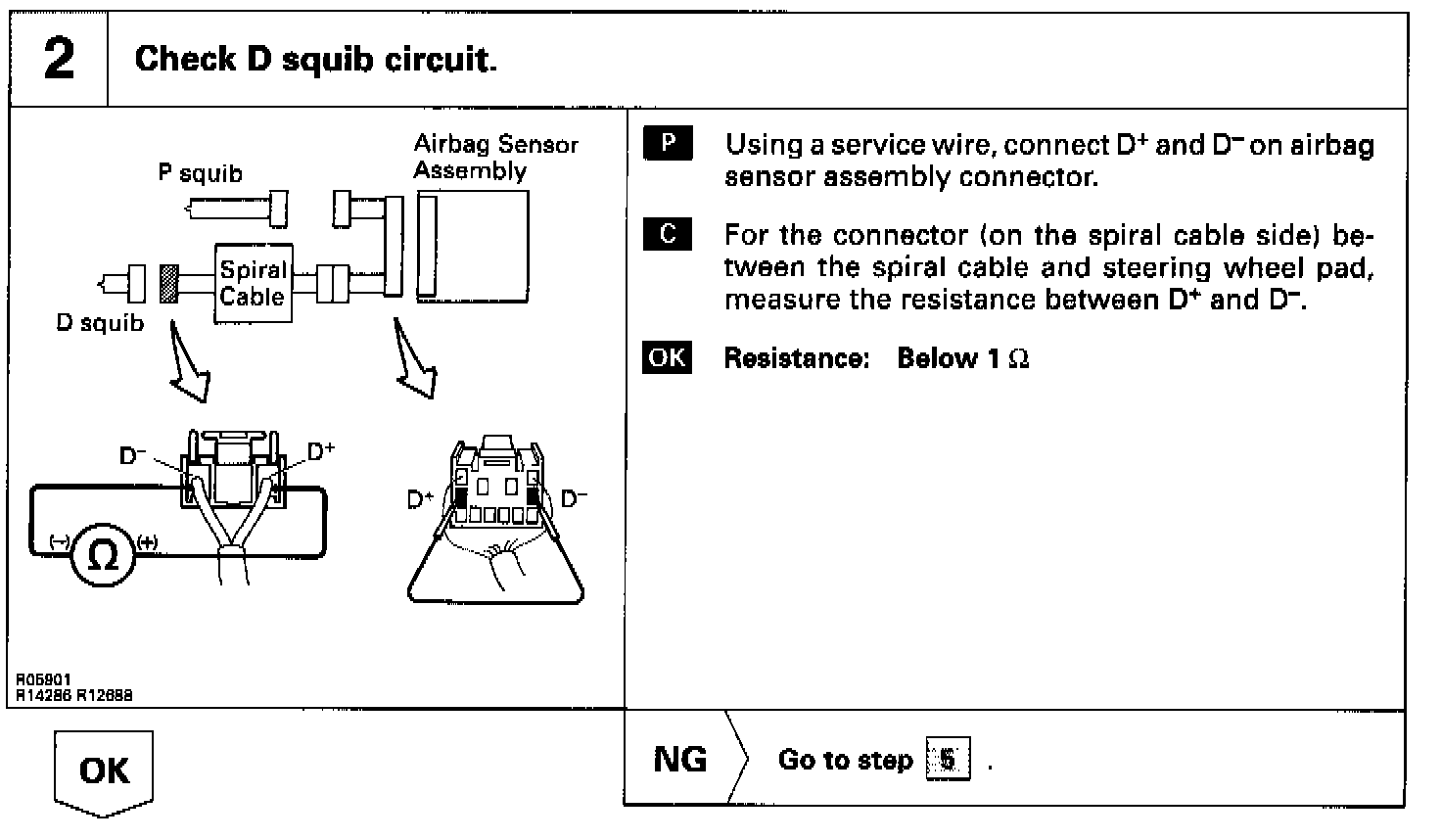

Step 2:

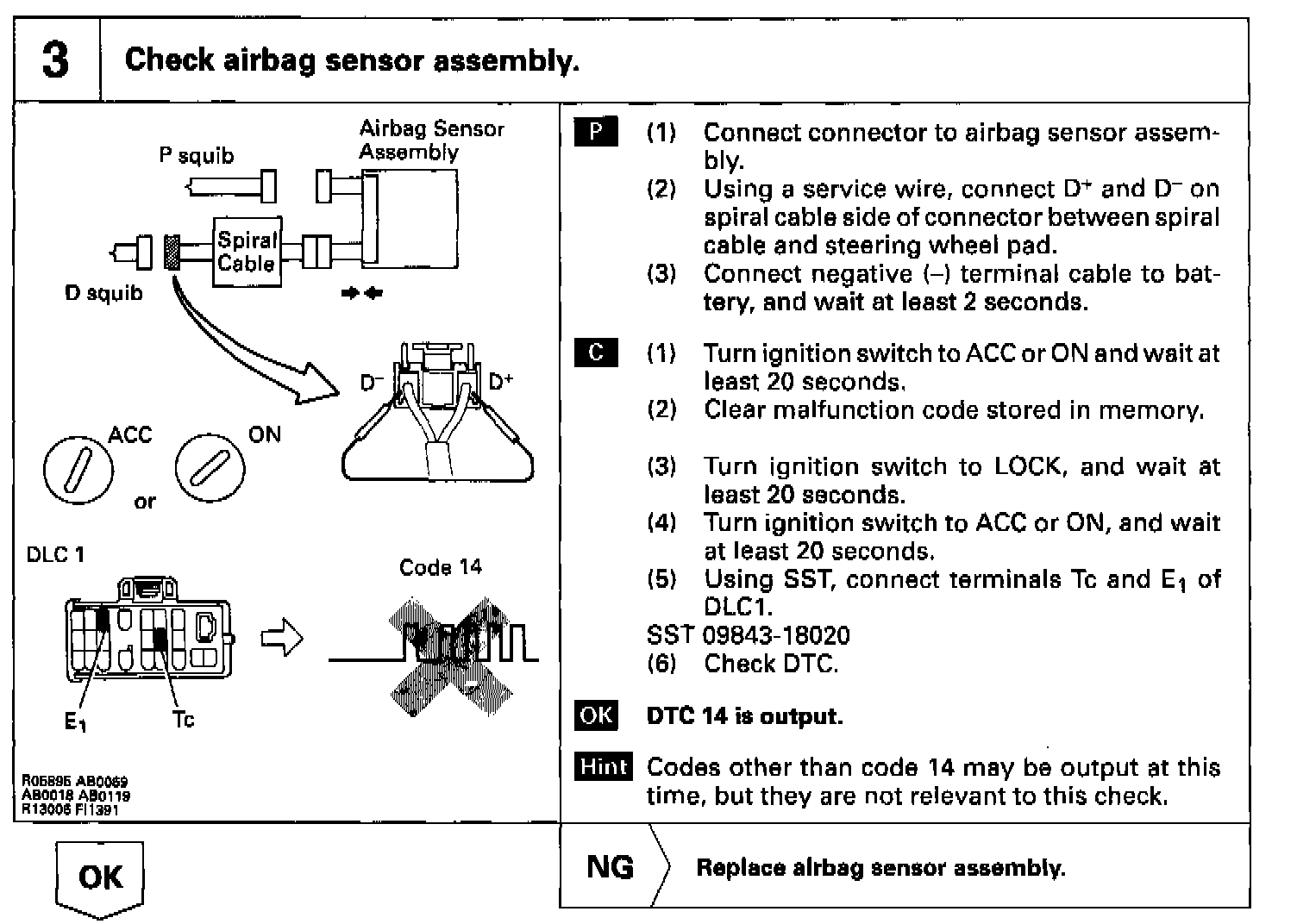

Step 3:

Step 4:

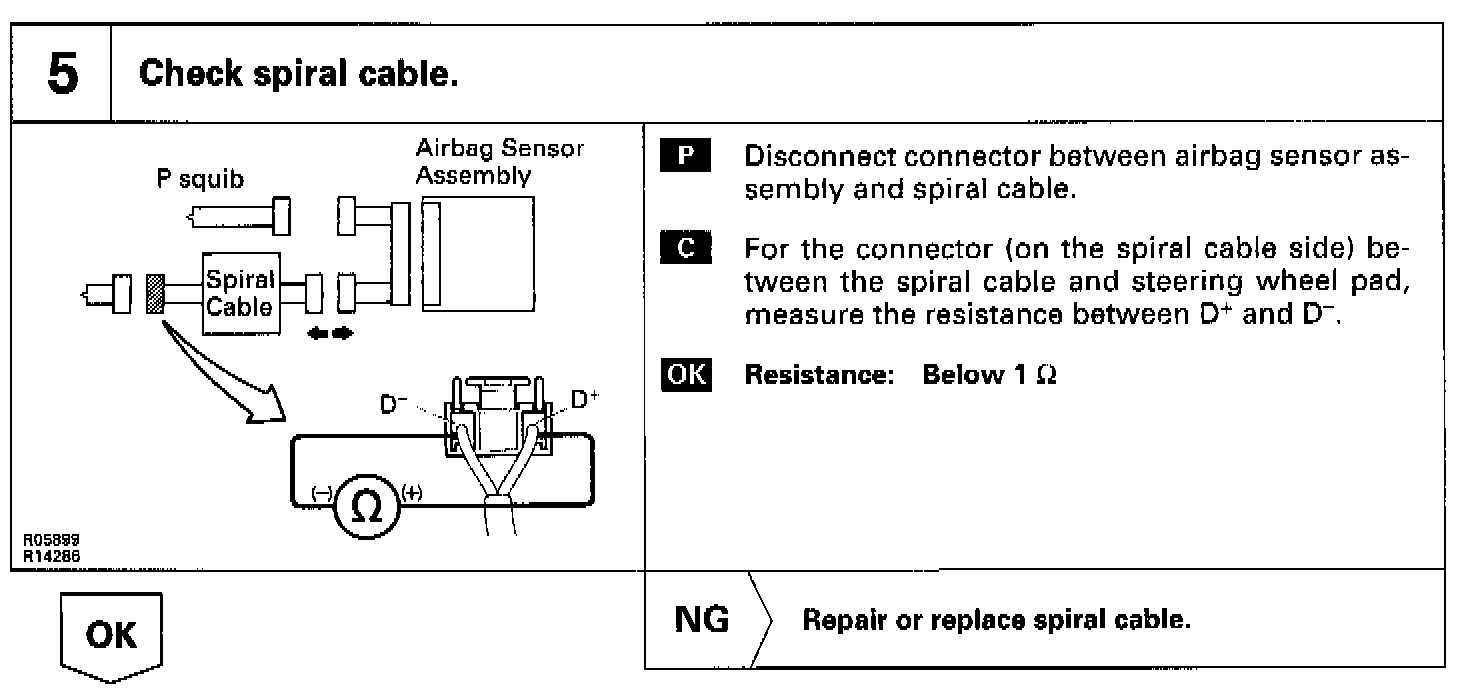

Step 5:

Step 6:

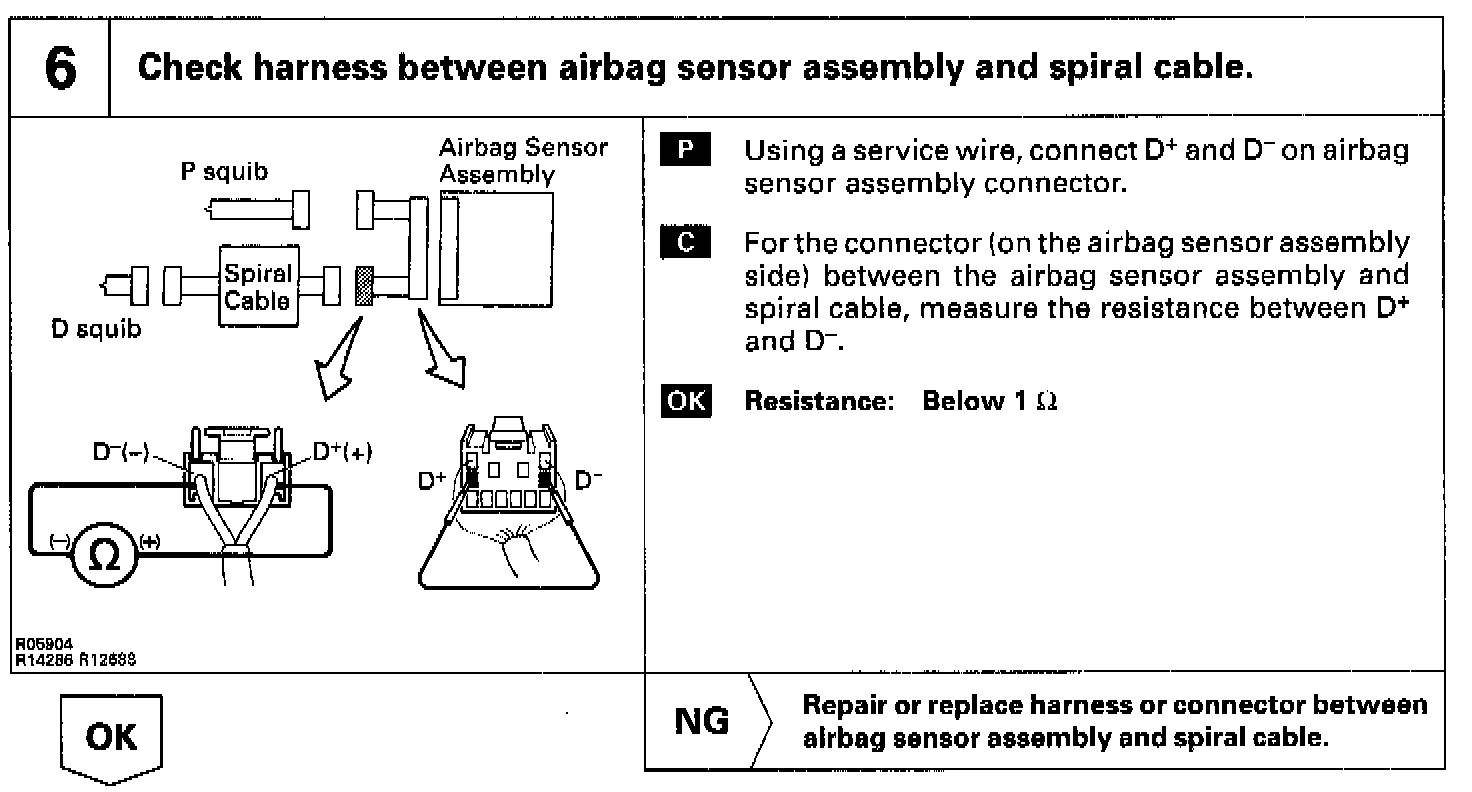

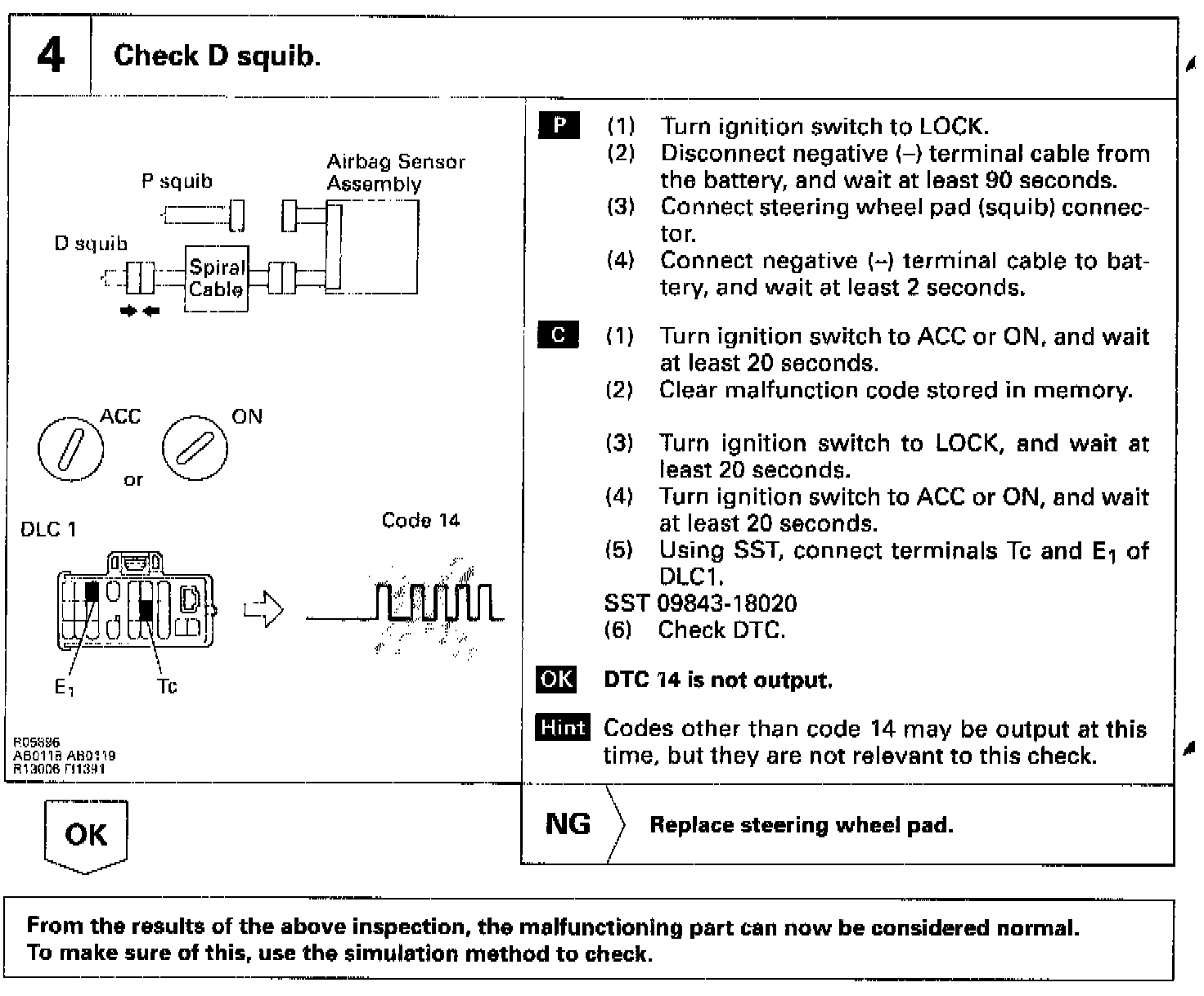

INSPECTION PROCEDURES
