DTC 12

CIRCUIT DESCRIPTION

The squib circuit consists of the airbag sensor assembly, spiral cable, steering wheel pad and front passenger airbag assembly. It causes the SRS to deploy when the SRS deployment conditions are satisfied.

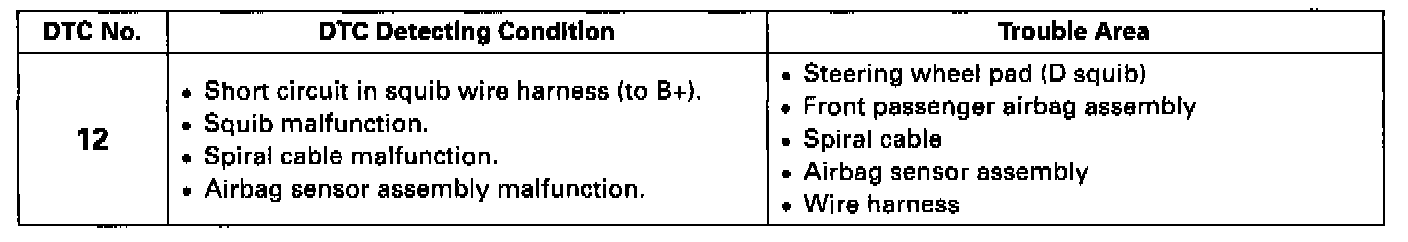

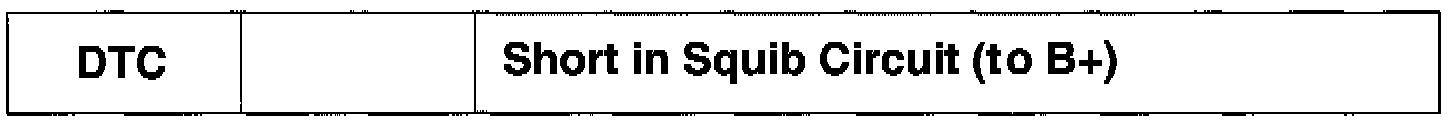

Diagnostic trouble code 12 is recorded when a B+ short is detected in the squib circuit.

Wiring Diagram:

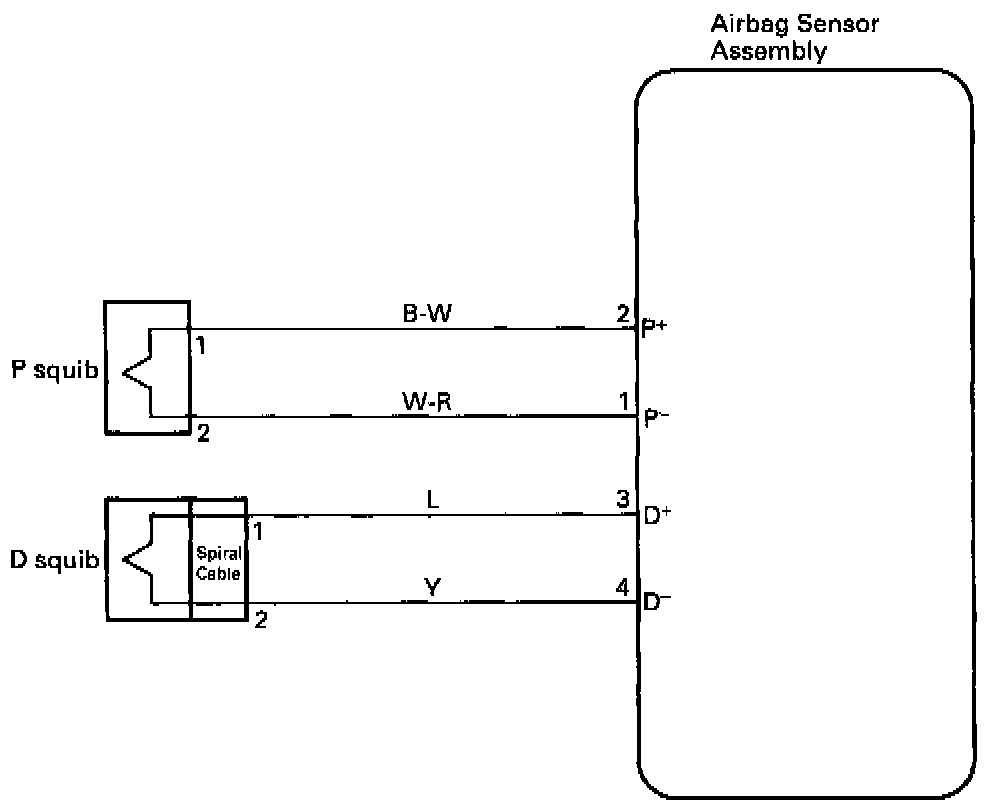

WIRING DIAGRAM

Step 1:

Step 2:

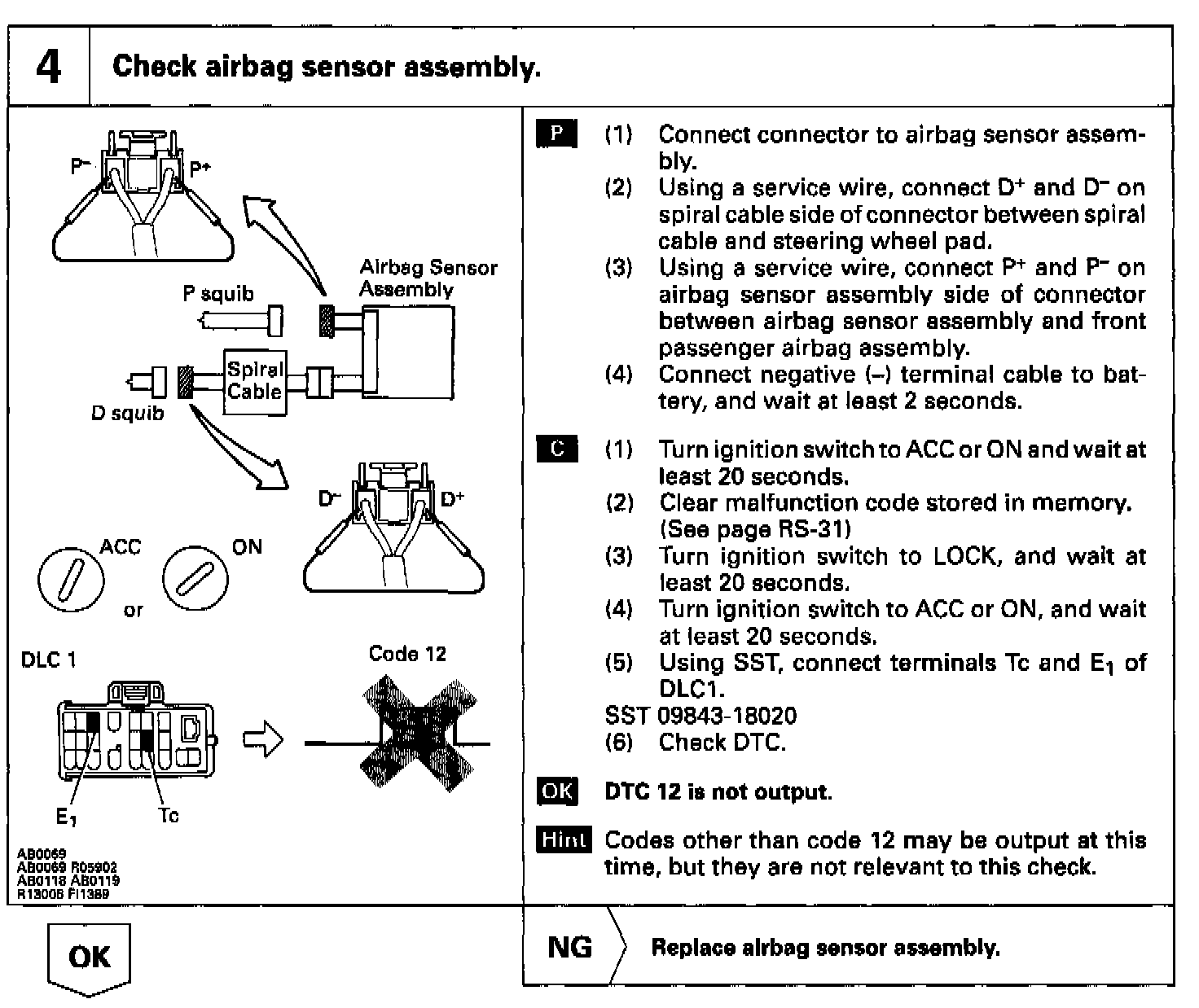

Step 3:

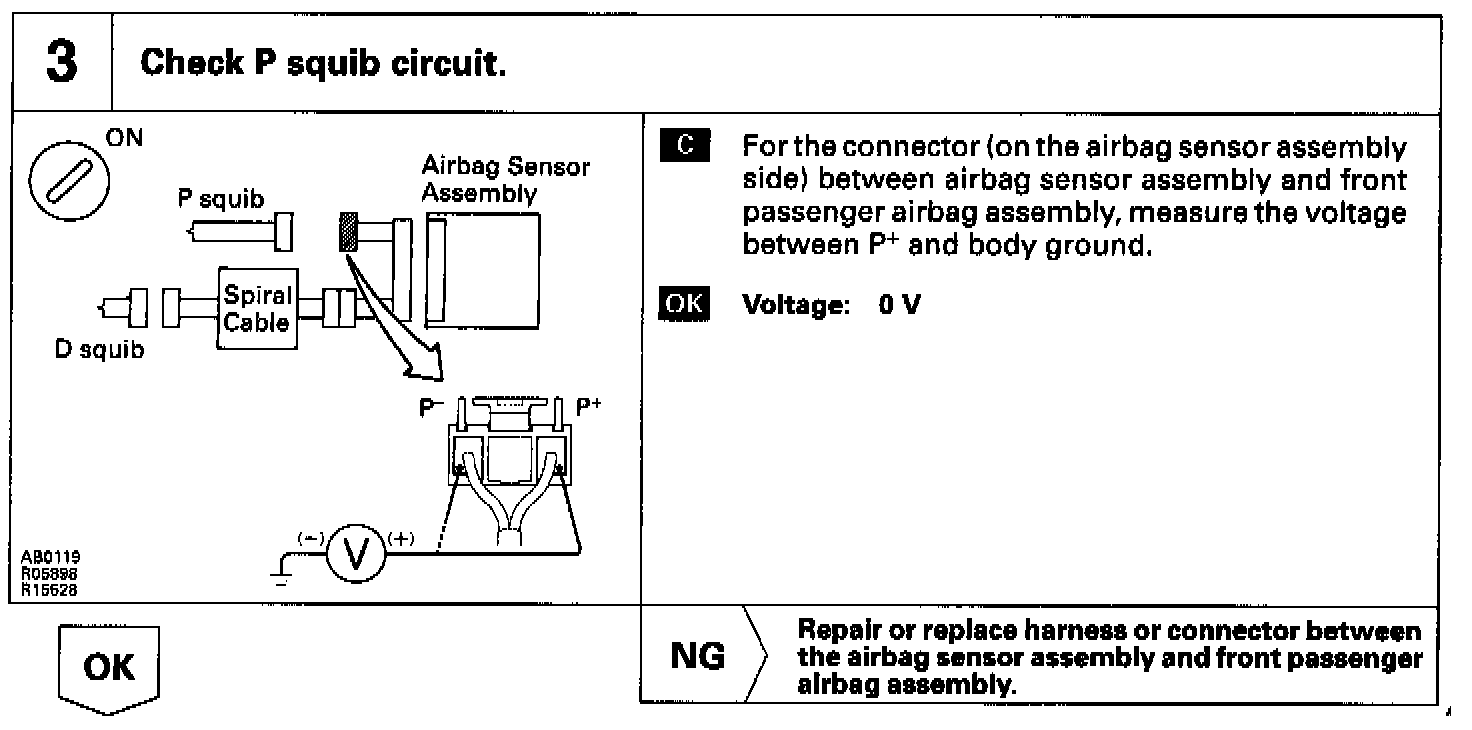

Step 4:

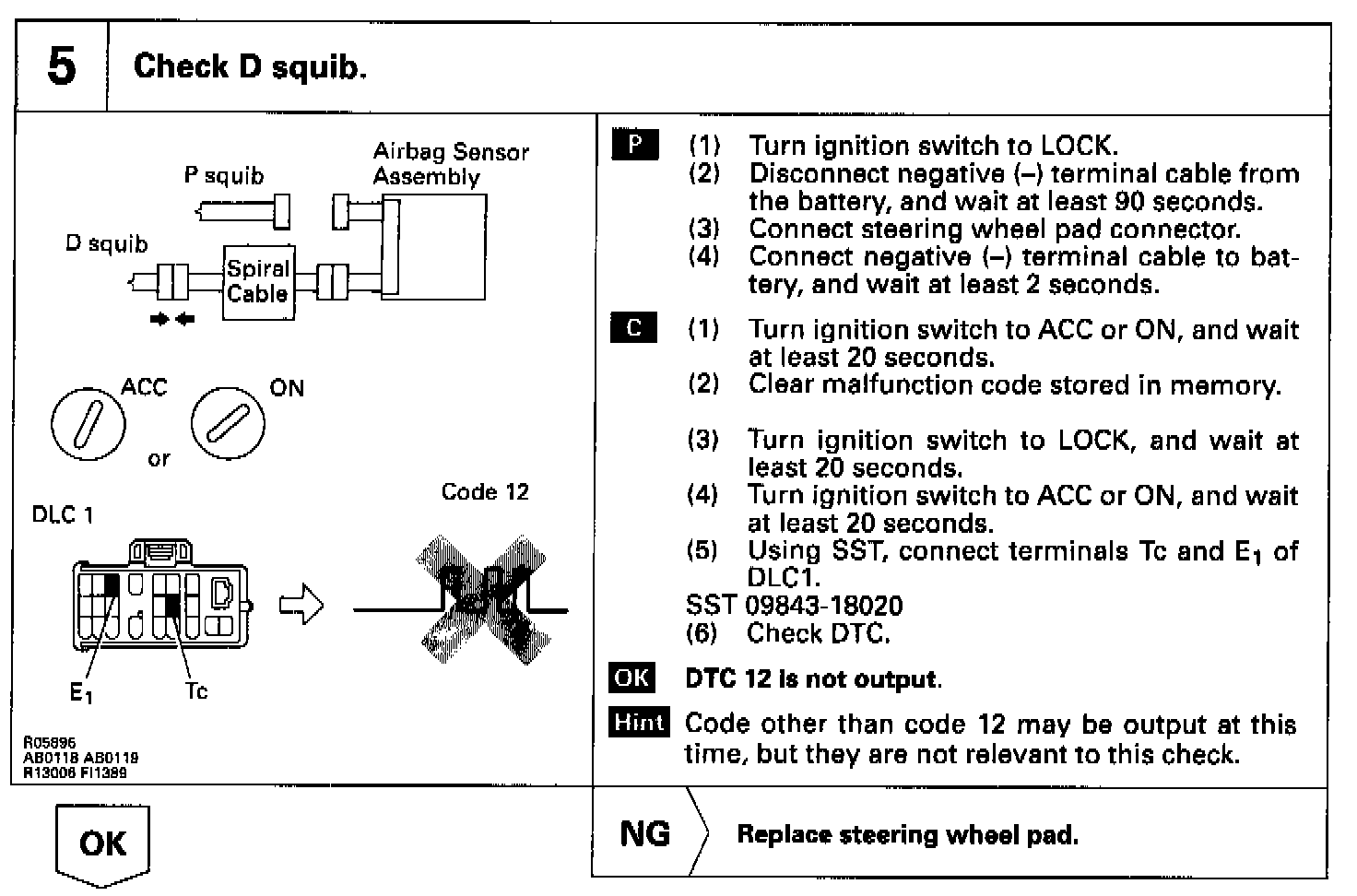

Step 5:

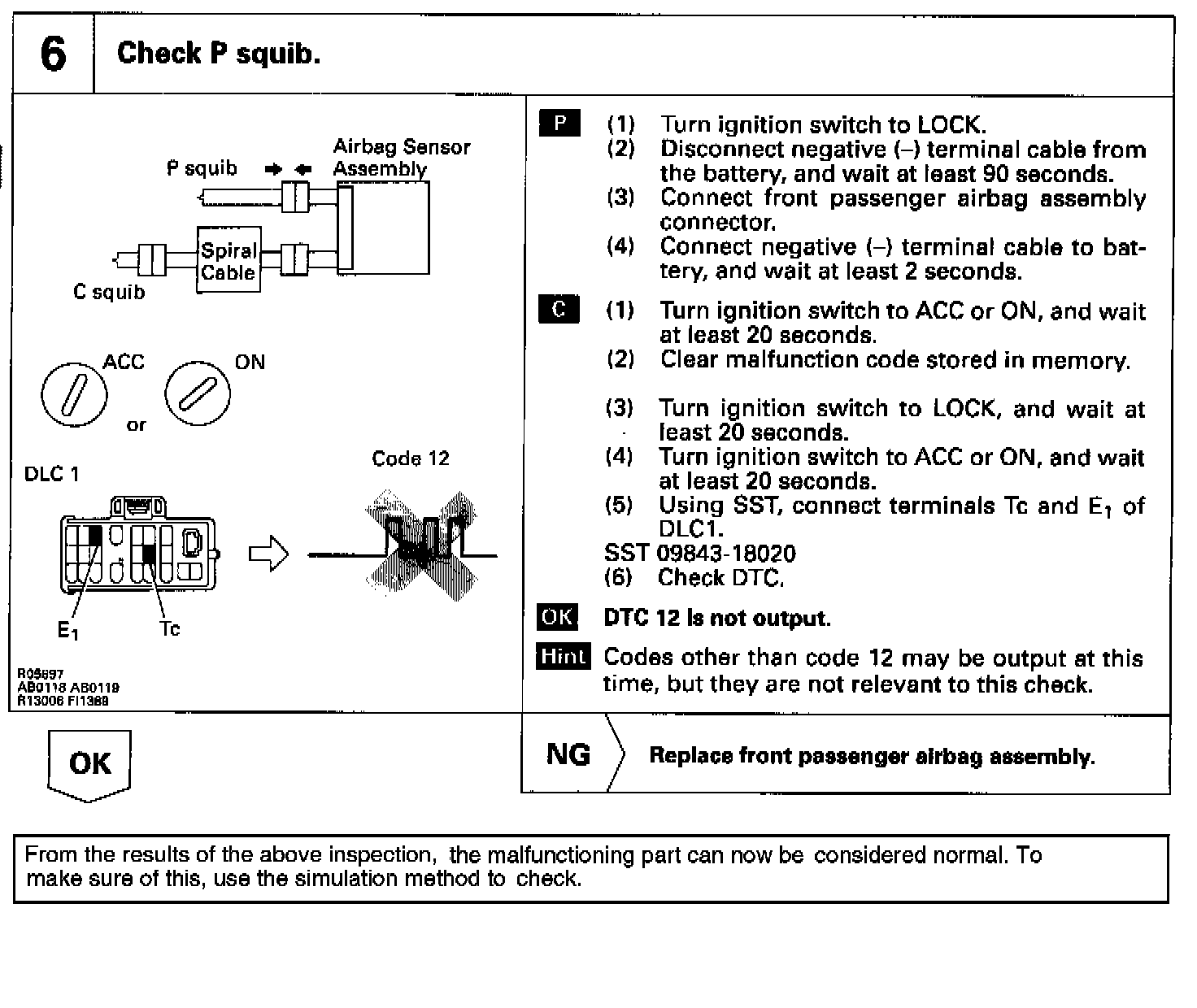

Step 6:

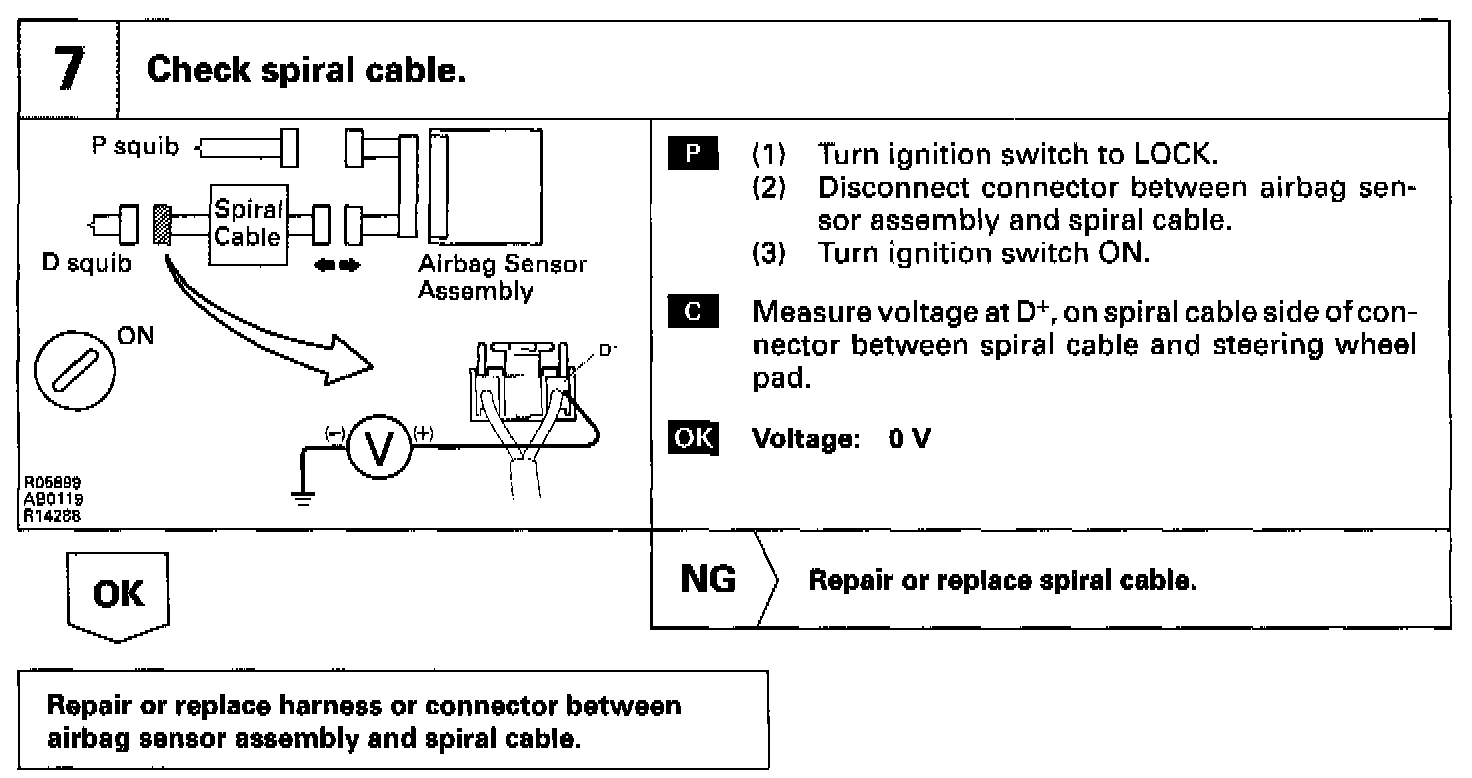

Step 7:
