A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
ABS (Antilock Brake System)
>>
DTC 56
DTC 56

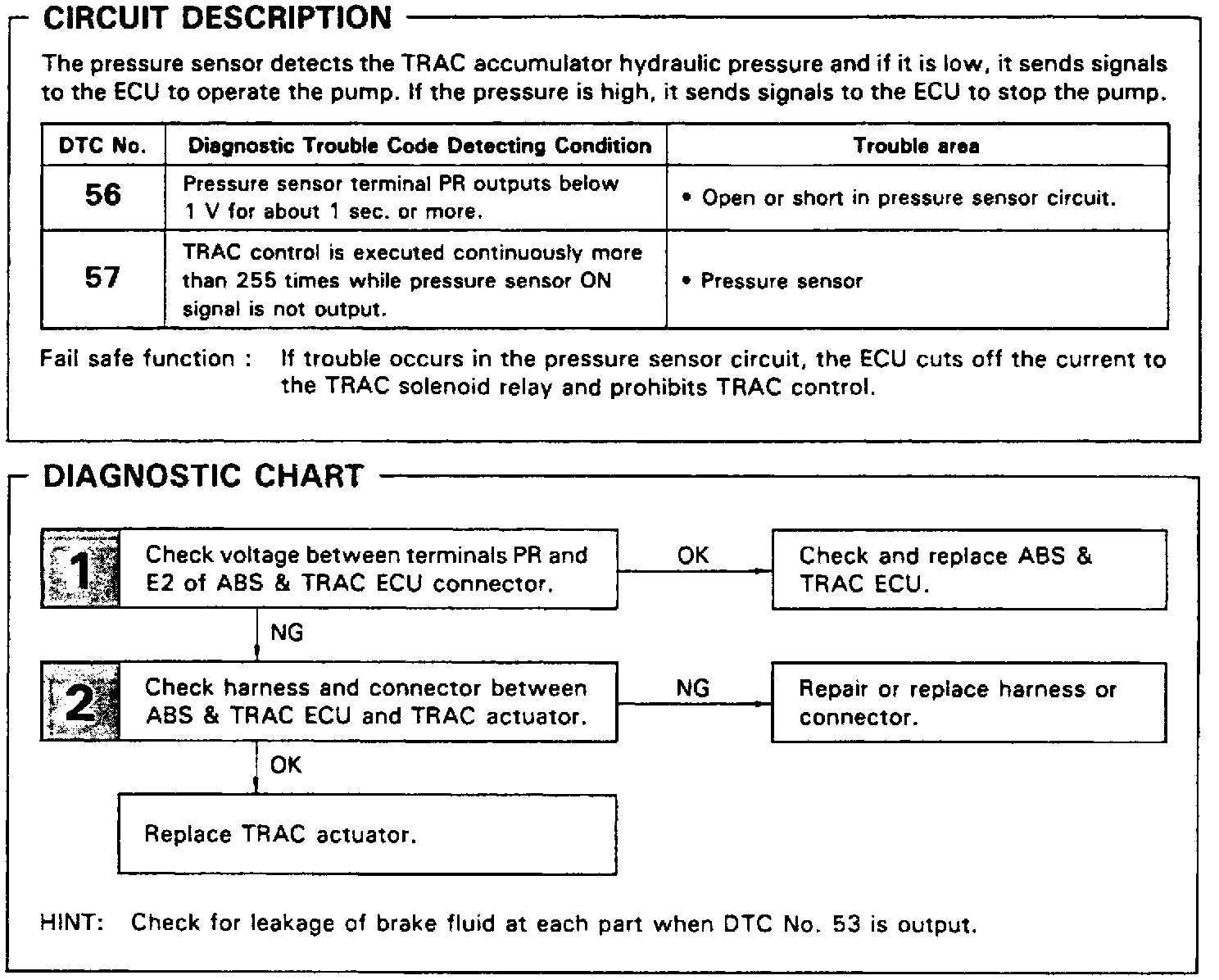

Fig. 103 Codes 56 & 57: Open Or Short In Pressure Sensor Circuit Or Pressure Sensor Malfunction:

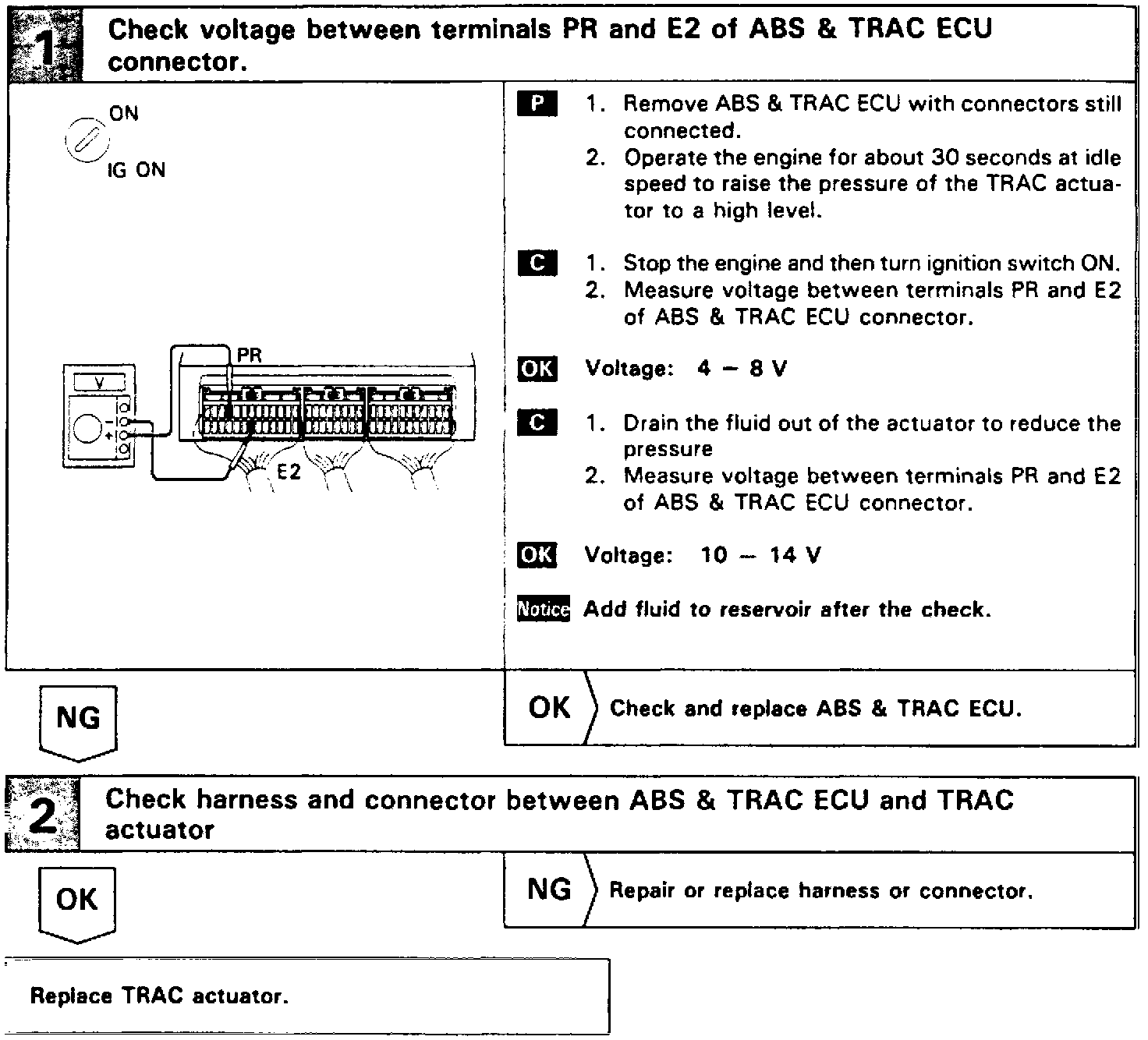

Fig. 104 Codes 56 & 57: Open Or Short In Pressure Sensor Circuit Or Pressure Sensor Malfunction:
