Home >> Lexus >> 1996 >> SC 400 V8-4.0L (1UZ-FE) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> ABS (Antilock Brake System) >> DTC 41 >> DTC 41 Flow Chart

DTC 41 Flow Chart

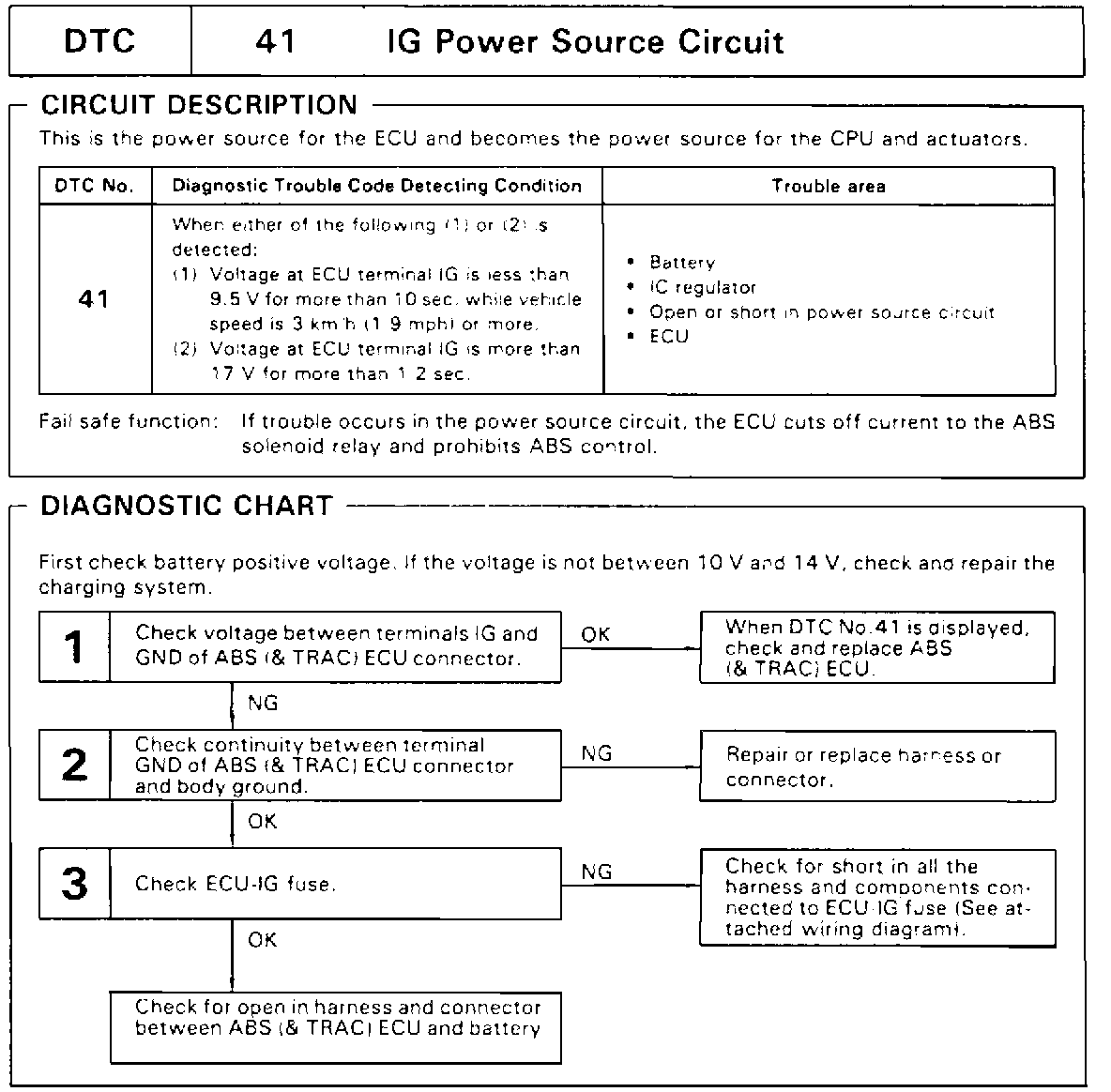

Fig. 85 Code 41: Low Battery Voltage Or Abnormally High Battery Voltage:
