Cruise Control System

ES300
1993-94
Refer to Fig. 2 for diagnostic trouble code interpretation.

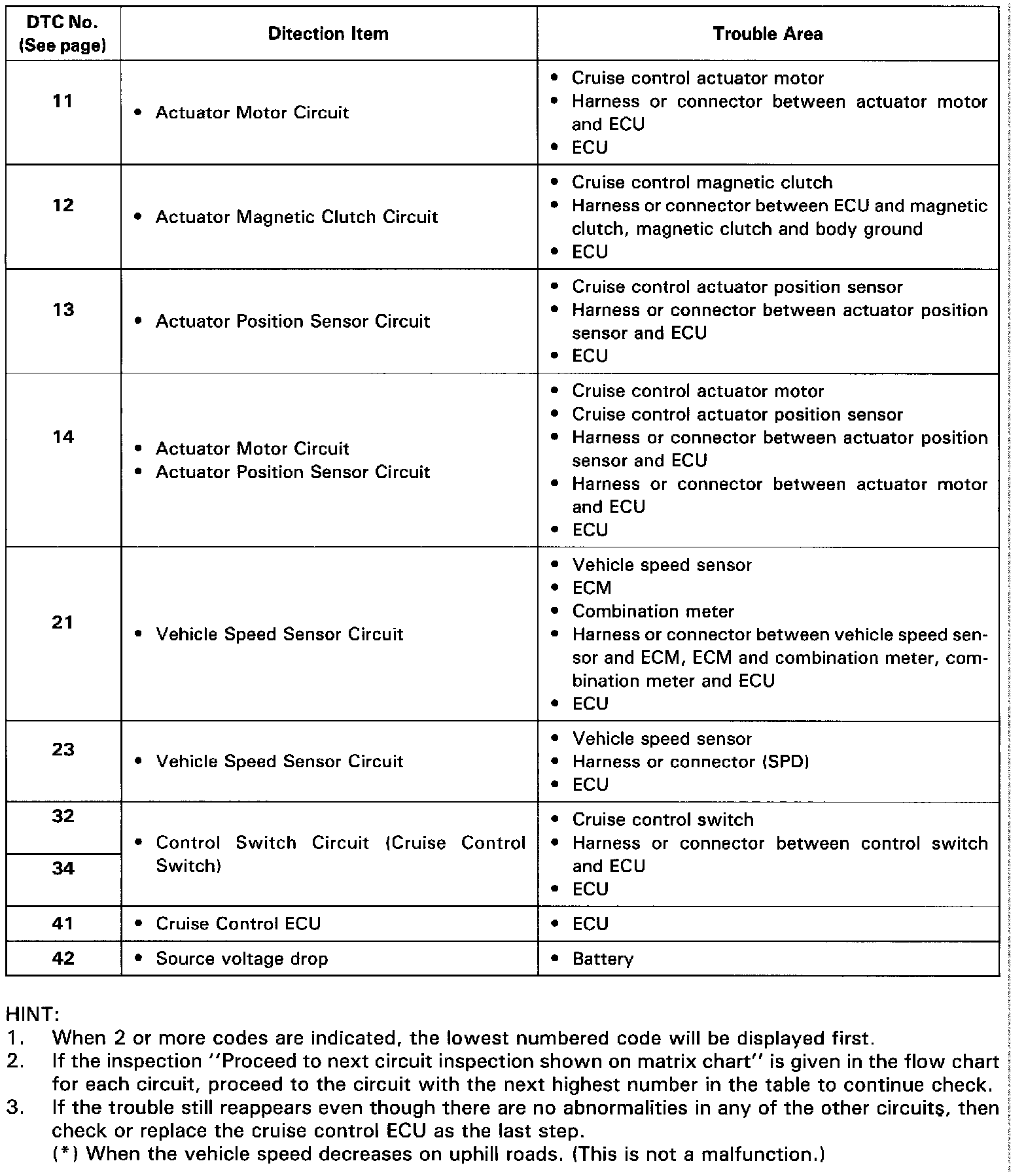

Fig. 2 Diagnostic Trouble Code Chart:

1995-96
Refer to Fig. 3 for diagnostic trouble code interpretation.

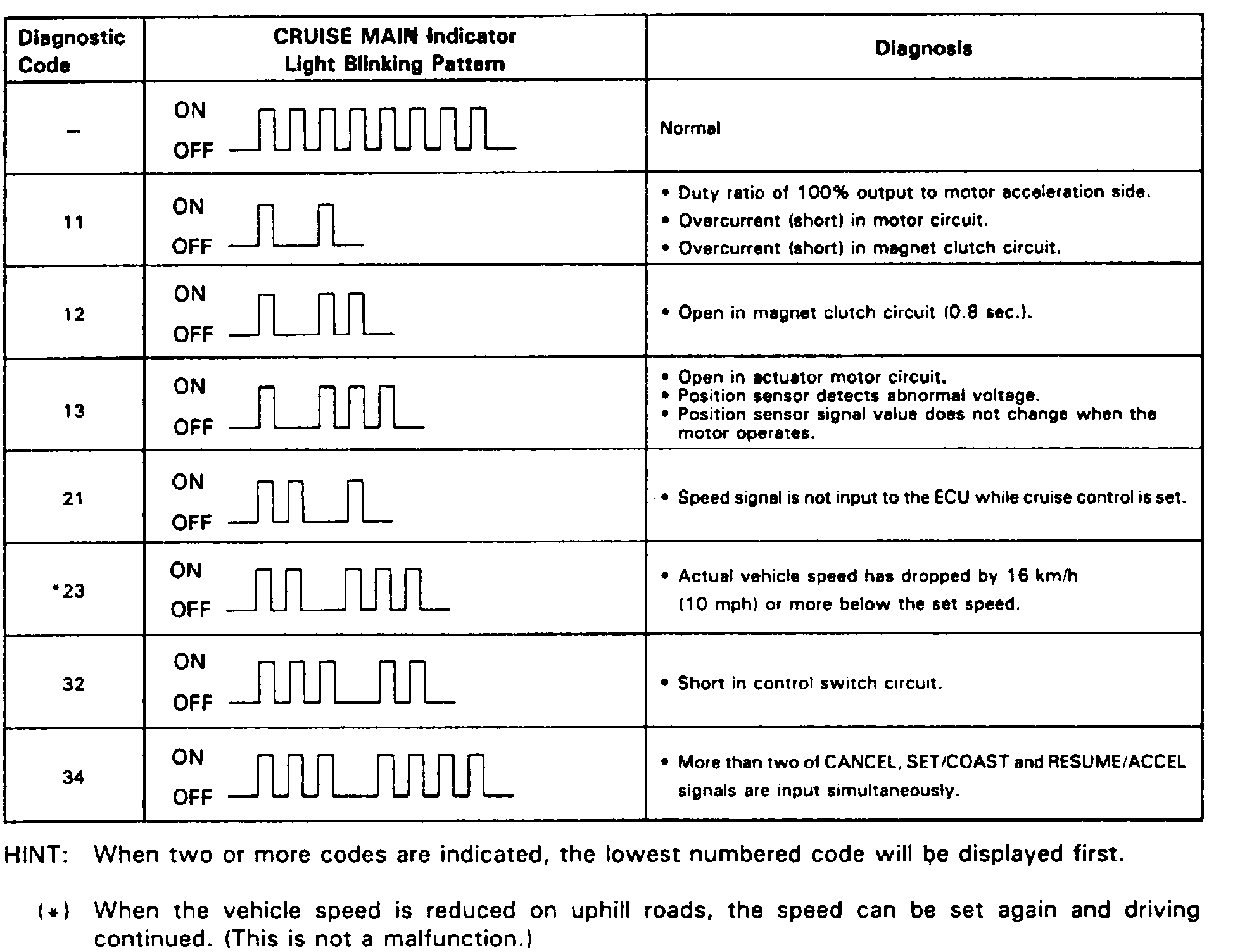

Fig. 3 Diagnostic Trouble Code Chart:

GS300 & SC300
Refer to Fig. 4 for diagnostic trouble code interpretation.

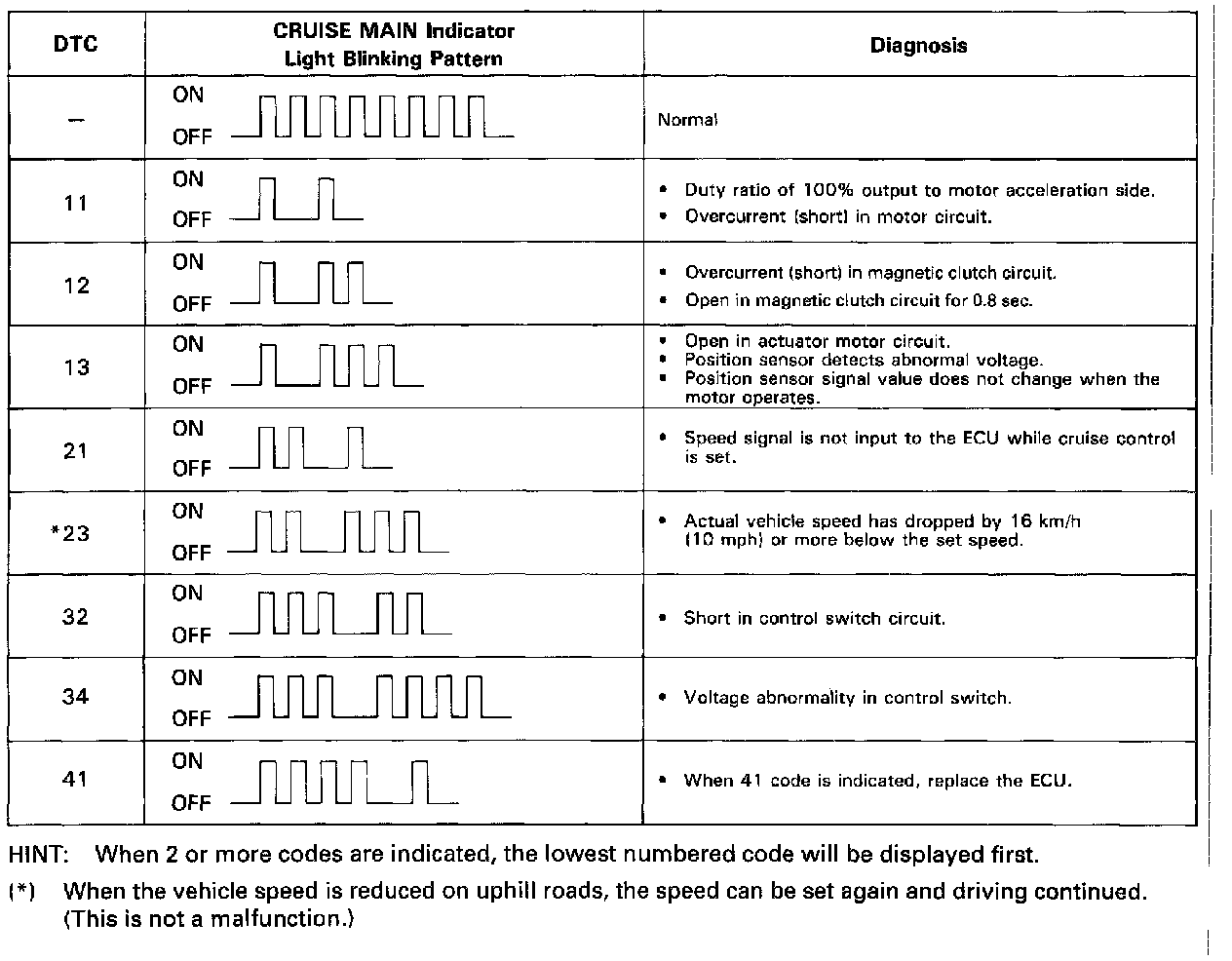

Fig. 4 Diagnostic Trouble Code Chart:

LS400 & SC400
1993-94
Refer to Fig. 5 for diagnostic trouble code interpretation.

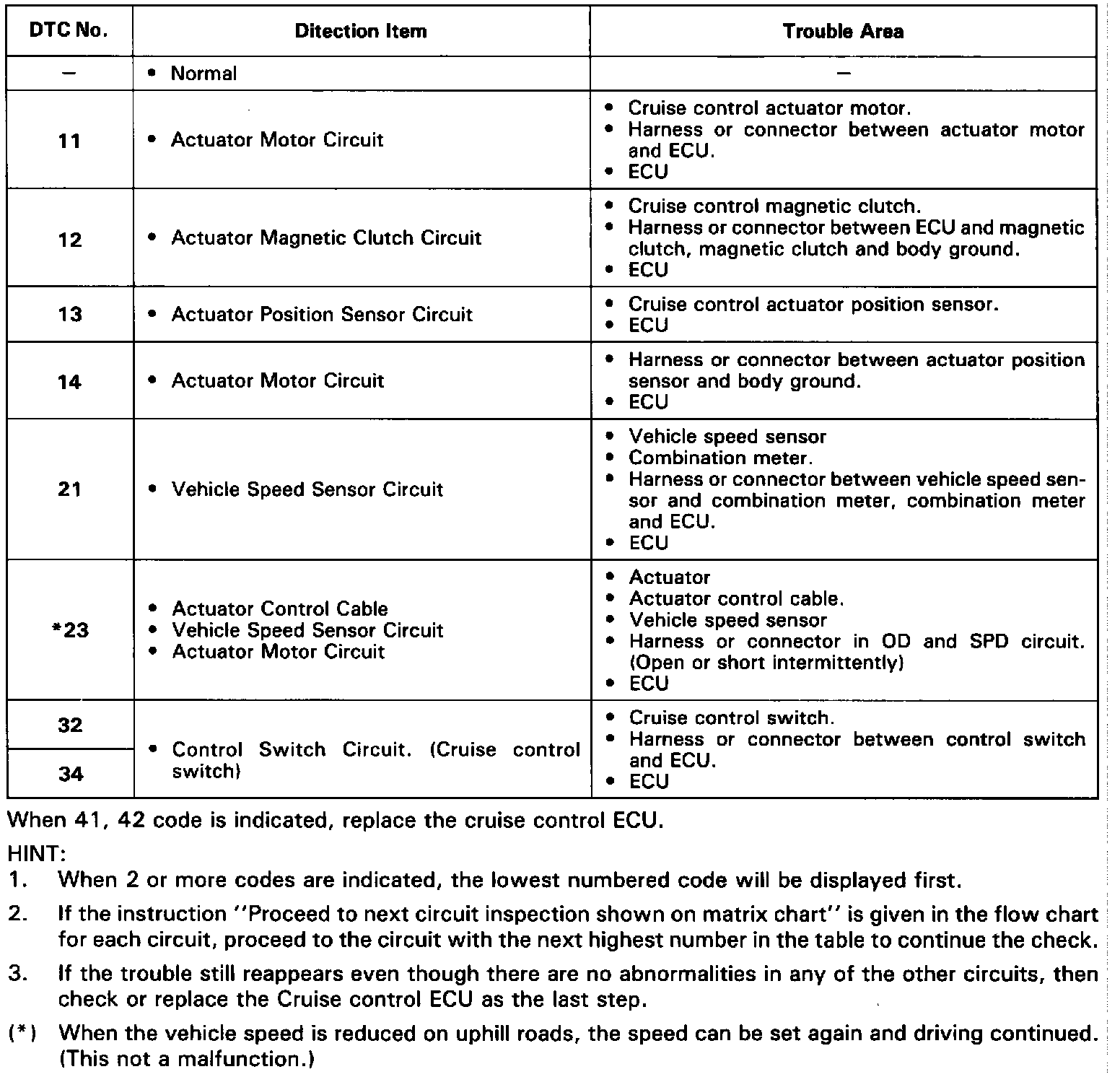

Fig. 5 Diagnostic Trouble Code Chart:

1995-96
Refer to Fig. 6 for diagnostic trouble code interpretation.

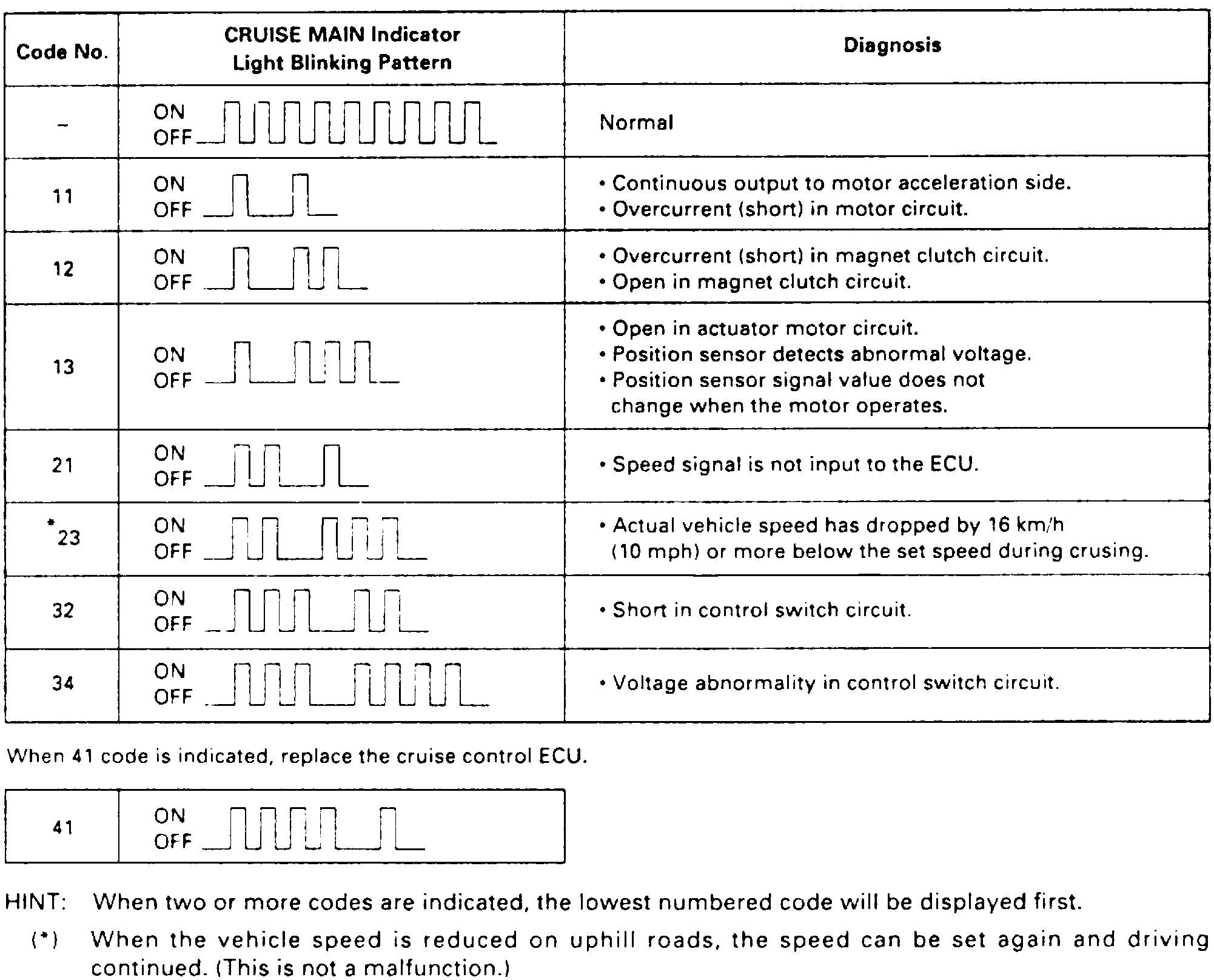

Fig. 6 Diagnostic Trouble Code Chart:
