Input Signal Check (Test Mode Check)
NOTICE: There are 2 different procedures for obtaining trouble codes. Be sure to perform both procedures to obtain all trouble codes.Diagnostic Trouble Code Check
INPUT SIGNAL CHECK (TEST MODE CHECK)
This function checks if signals from the steering sensor and stop light switch etc. are being input normally to the ECU.
1. Turn ignition switch off.

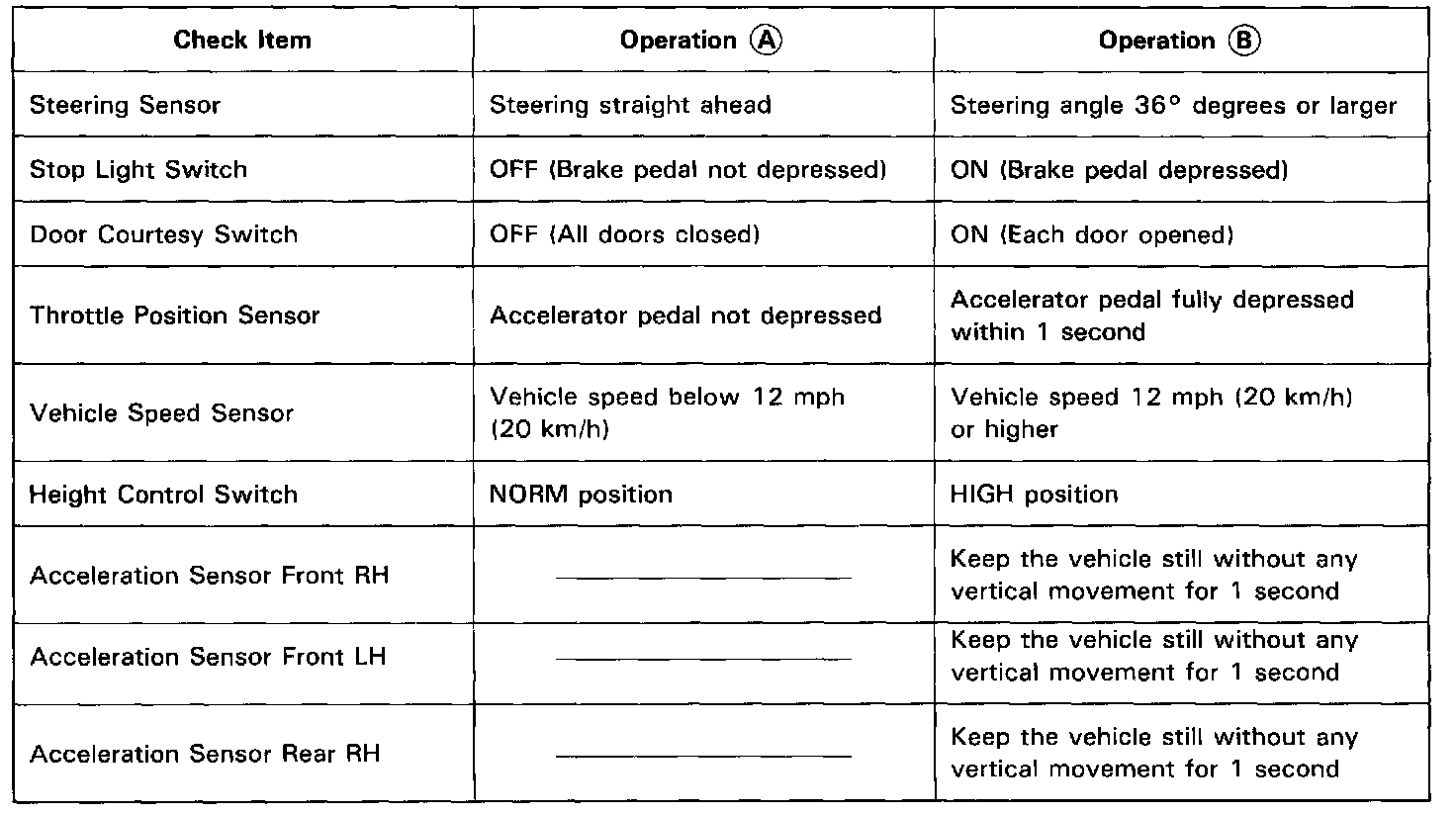

2. Set each of the check items in the table below to the condition in Operation (A).

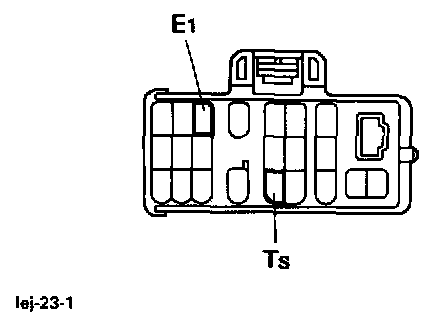

3. Using SST, connect terminals Ts and E1 of the DLC1.
SST 09843-18020
4. Turn ignition switch on or the engine is running.
HINT:
- At this time the height control indicator light comes on for 2 seconds. After, this light flashes at 0.25 second intervals.
- When the height control indicator is not flashes, check the Ts terminal circuit.
5. Each of the check items is set to the condition in Operation (B).
HINT: When operation of the check items, the height control indicator light comes on for 1 second.

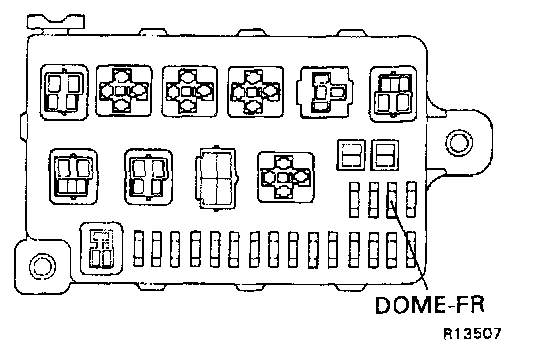

6. Remove the DOME-FR fuse in the engine room J/B.
NOTICE: Removing the DOME-FR fuse cuts off the back-up power to the power seat memory and the clock. Before starting repairs, make a note of the power seat position. Then, before returning the vehicle to the customer, reset the power seat to the previously memorized position and reset the clock.
7. Open the driver's door.

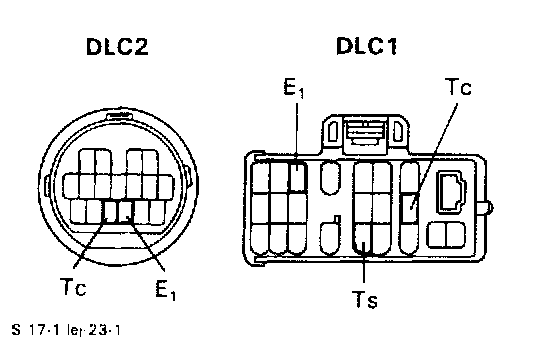

8. Using SST, connect terminals Tc and E1 of DLC1 or DLC2.
SST 09843-18020
HINT: While at the same time connecting terminals Ts and E1.

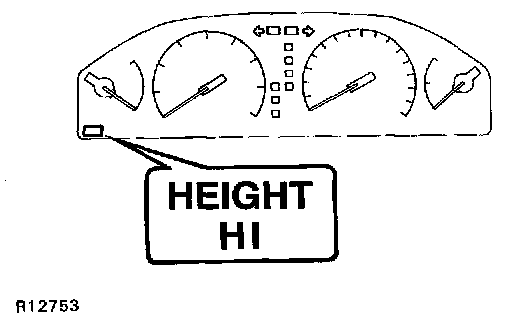

9. Read the test diagnostic trouble code output by 'HEIGHT HI" indicator light.
HINT:
- At the same time the diagnostic trouble code output by "HEIGHT HI" indicator light.
- When the diagnostic trouble code is not output, check the Tc terminal circuit.

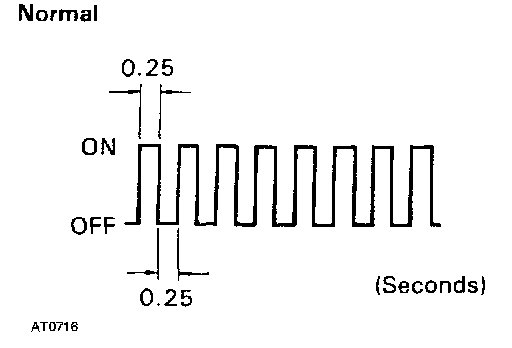

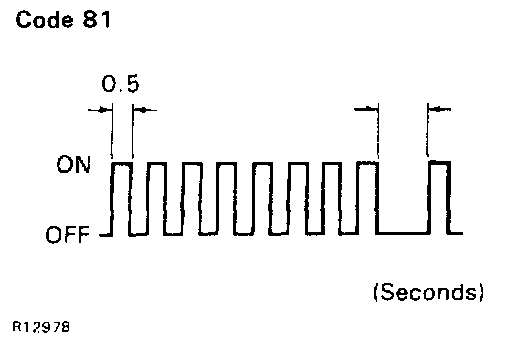

As an example, the blinking patterns for codes normal and 81 are as shown on the illustration.

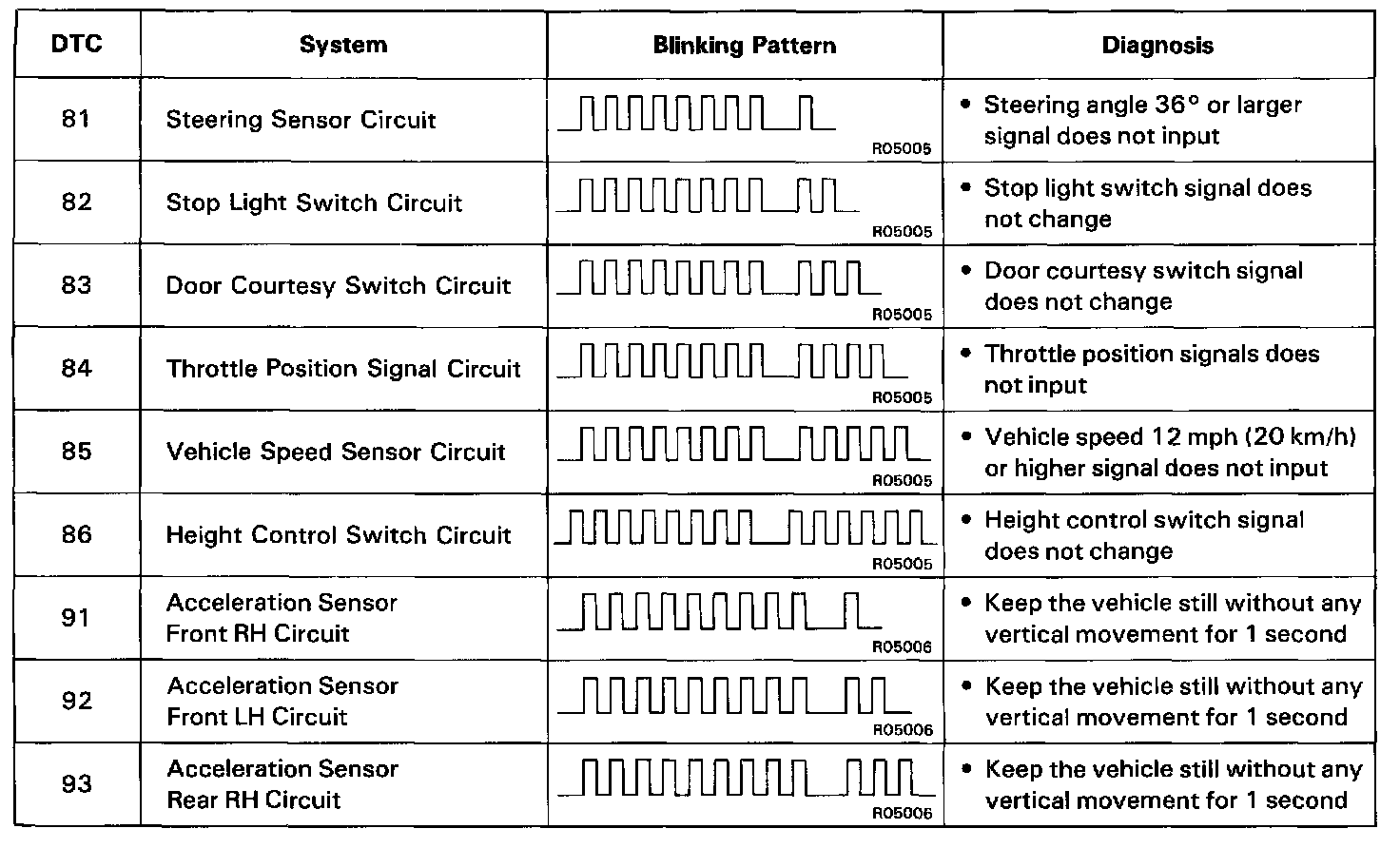

10. Check the malfunction using the code table.
DESERT FROM INPUT SIGNAL CHECK MODE
- With the ignition switch off, disconnect the SST from DLC1 and then turn
ignition switch on.
