Clearing Trouble Codes

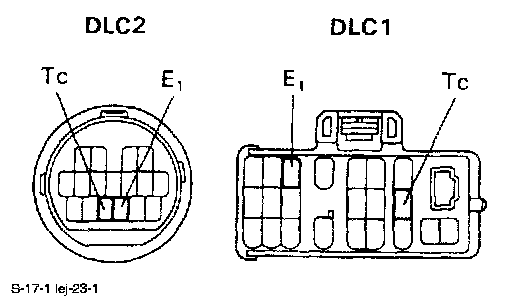

1. With the ignition switch ON, using SST, connect terminals Tc and E1 of DLC1 or DLC2.

SST 09843-18020

2. Depress the brake pedal 8 or more times in 3 seconds.

NOTE: By completing this operation, the DTC's of the ABS and TRAC systems will also be cancelled out.
